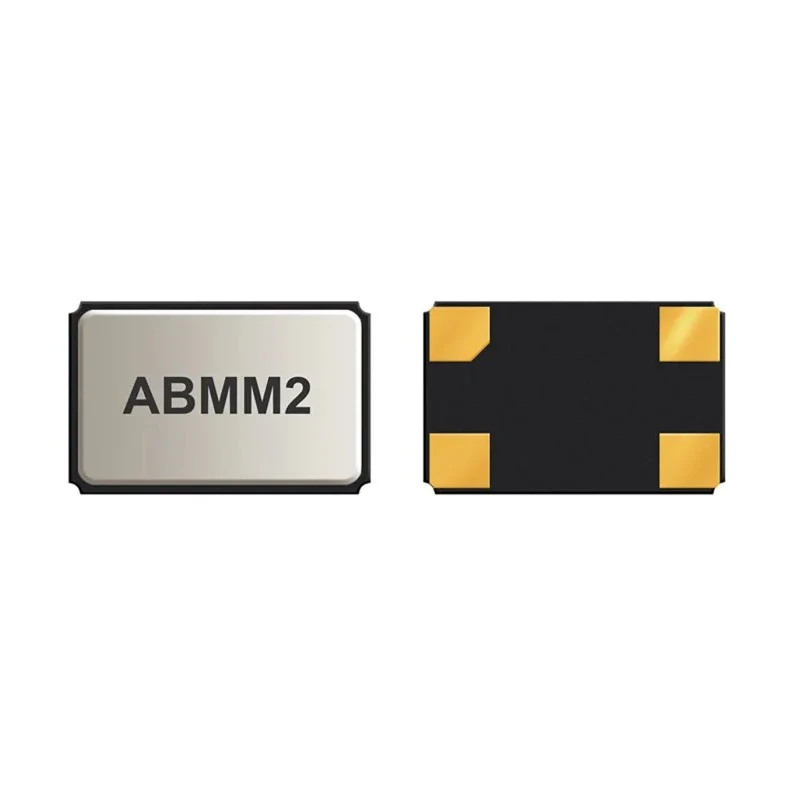

Abracon 16 MHz Crystal Unit Surface Mount 4-Pin 1.2 mm Height 6 mm Length 3.5 mm Width ±20 ppm ABMM2-16.000MHZ-E2-T

Name: Abracon 16 MHz Crystal Unit Surface Mount 4-Pin 1.2 mm Height 6 mm Length 3.5 mm Width ±20 ppm ABMM2-16.000MHZ-E2-T
Brand: Abracon
SKU: 150830



Category Crystal Units Brand Abracon Condition New

Specifications

Country of Origin	China
Brand	Abracon
Height	1.2mm
Length	6mm
Model	ABMM2-16.000MHZ-E2-T
Packaging	Tape & Reel
Width	3.5mm
Mount Type	Surface
Series	ABmm²
Maximum Operating Temperature	70°C
Package Type	Surface Mount
Minimum Operating Temperature	-20°C
Standards/Approvals	REACH, RoHS
Pin Count	4
Standard Frequency	16MHz
Load Capacitance	18pF
Series Resistance	50Ω

Key Features

Standard frequency of 16 MHz provides stable oscillation.
Surface mount package with 4 pins suitable for compact PCB layouts.
Low profile height of 1.2 mm ensures space efficiency.
Durable ceramic seam-sealed package enhances reliability.
Designed with 18 pF load capacitance for optimized circuit performance.
Operating temperature range from -20°C to 70°C ensures wide environmental tolerance.
Series resistance rated at 50 Ω supports consistent oscillation quality.
Packaging in tape and reel format facilitates automated assembly processes.

Product Description

Abracon ABMM2-16.000MHZ-E2-T is a 16 MHz crystal unit designed for surface mount applications, featuring a low height of 1.2 mm, length of 6 mm, and width of 3.5 mm. This precision crystal unit ensures stable frequency with a tight tolerance of ±20 ppm and frequency stability of ±20 ppm, making it suitable for high-reliability applications in computers, modems, microprocessors, communication devices, and test equipment.

The crystal unit's package is seam-sealed ceramic, providing high reliability and protection against environmental factors. It supports a load capacitance of 18 pF and has a series resistance of 50 Ω. The product operates efficiently within a temperature range of -20°C to 70°C. The unit comes in a tape and reel package, optimized for automated PCB assembly lines.

This crystal unit complies with REACH and RoHS standards, ensuring compliance with environmental regulations. Manufactured in China, it does not conform to automotive standards but is ideal for general industrial and electronic applications requiring precise oscillation control.

Standard frequency of 16 MHz for stable operations. Surface mount configuration with 4 pins for compact design. Low height of 1.2 mm maximizes PCB space utility. Seam-sealed ceramic package for enhanced durability and reliability.

18 pF load capacitance optimized for circuit performance. Operating temperature from -20°C to 70°C for versatility. 50 Ω series resistance for oscillation quality. Tape & reel packaging supports modern manufacturing. REACH and RoHS compliant, environmentally safe.

Applications include computers, modems, communication, and test equipment.

This Abracon crystal unit is suitable for electronic and industrial uses requiring high precision frequency control. Explore more Crystal Units and electronic components in our EnvMart catalog for advanced solutions.
