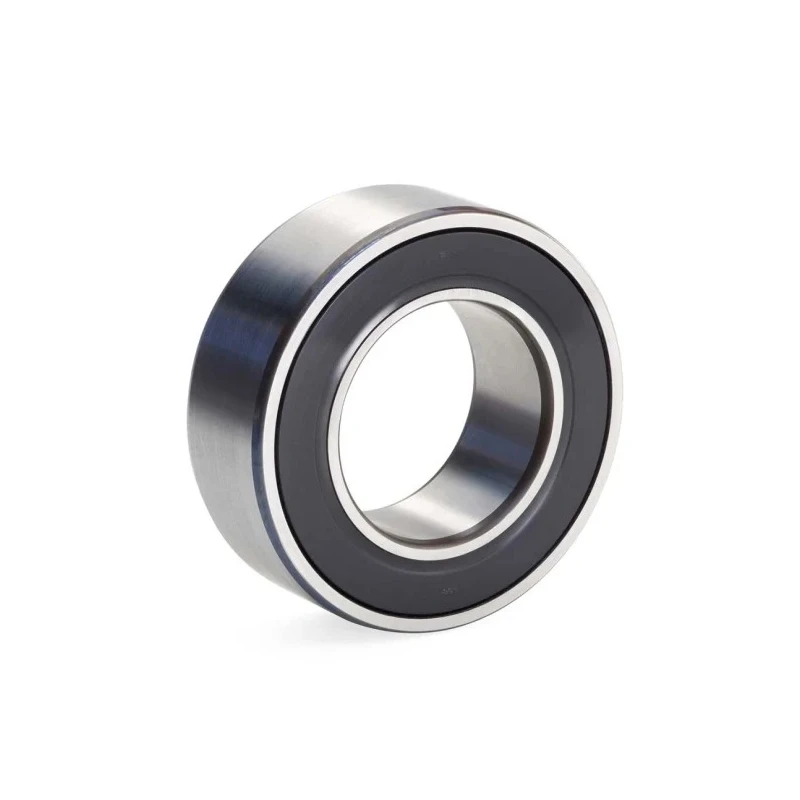

SKF Double Row Angular Contact Ball Bearing, 17 mm ID, 40 mm OD, 17.5 mm Width, Sealed, Non-Metallic 3203 A-2RS1TN9/MT33

SKF 3203 A-2RS1TN9/MT33 Double Row Angular Contact Ball Bearing is purpose-built for demanding mechanical applications requiring robust support against both axial and radial loads. With an inside diameter of 17 mm, outside diameter of 40 mm, and a race width of 17.5 mm, this bearing offers a compact yet high-capacity solution for maintaining smooth system performance under persistent loads.

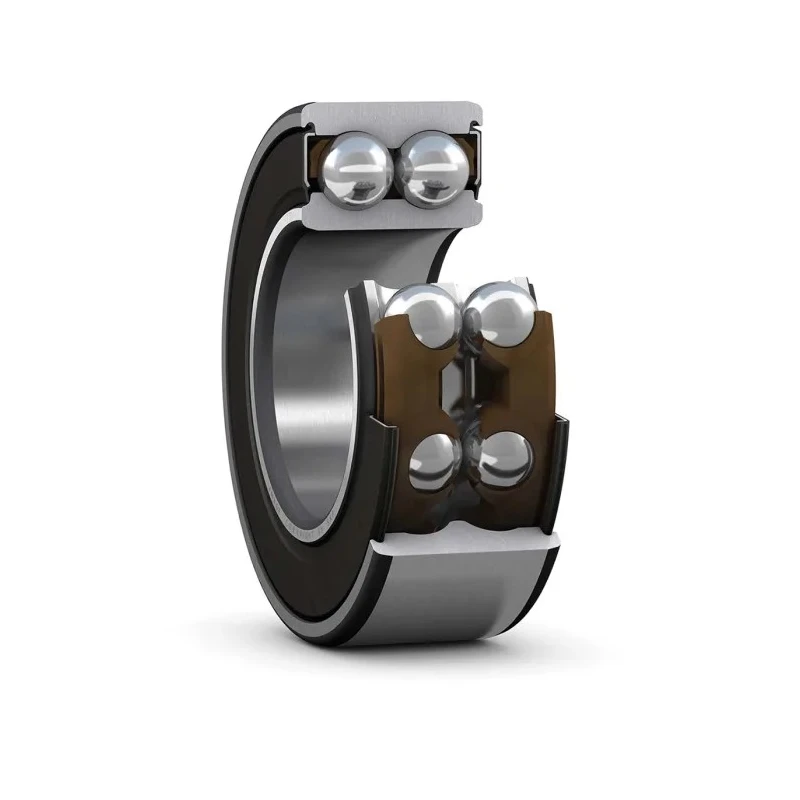

The double row angular contact construction incorporates two parallel sets of rolling elements, enhancing rigidity and enabling the bearing to withstand tilting forces and simultaneous multi-directional loads. The 30° contact angle is engineered to improve the bearing's ability to carry substantial axial loads, extending its performance envelope compared to standard configurations.

Precision-sealed ends provide reinforced protection against contamination, ensuring the bearing retains optimal lubrication and resists dust, moisture and abrasive particles, reducing the need for regular maintenance. The ball material is high-quality hardened steel, combined with a non-metallic cage that improves durability and minimizes risk of damage or deformation under operational stresses.

This bearing achieves a dynamic load rating of 14.3 kN and a static load rating of 8.8 kN, making it suitable for supporting heavy, vibrating machine parts. With a limiting speed up to 12000 rpm, it delivers reliable performance even at high rotational speeds, ideal for applications where efficiency, stability, and long operational life are critical.

Applications for the SKF 3203 A-2RS1TN9/MT33 ball bearing span the automotive industry, medical equipment, agricultural machinery, and construction equipment, among others. Its double row design ensures robust support and durability where both radial and axial loads, sharp turns and tilting moments are present.

The bearing features CN internal clearance for reliable operational flexibility and a plain race type that promotes smooth contact and consistent bearing action. Its parallel bore facilitates straightforward installation in compatible housing units.

In summary, the SKF 3203 A-2RS1TN9/MT33 provides advanced bearing technology optimally balanced for performance, durability, and versatility in diverse industrial environments. Explore the complete range of SKF bearings and other ball bearing solutions in the Ball Bearings category at EnvMart for industrial, mechanical, and automotive needs.
