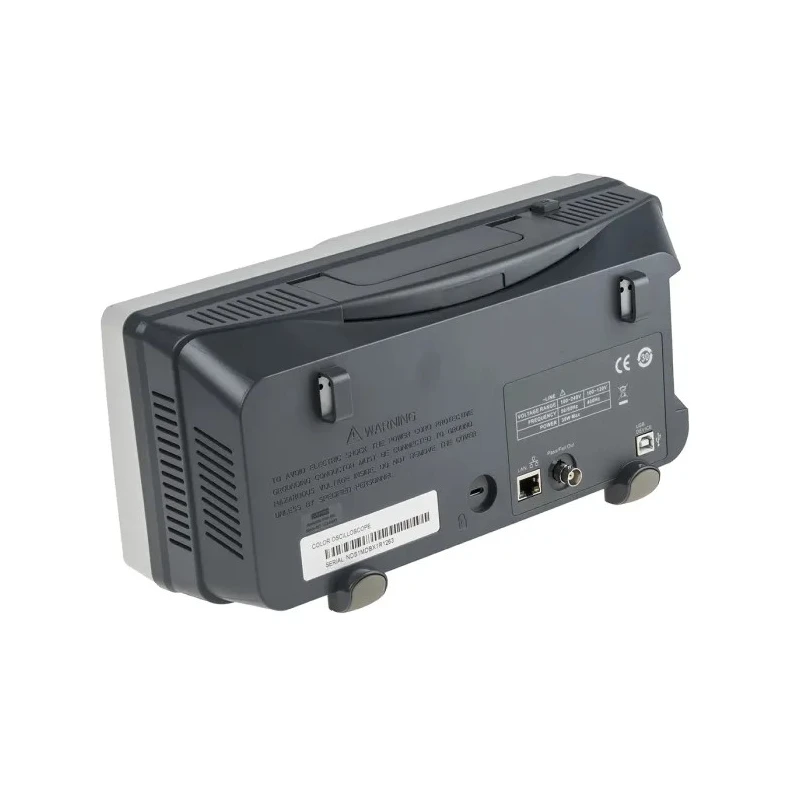

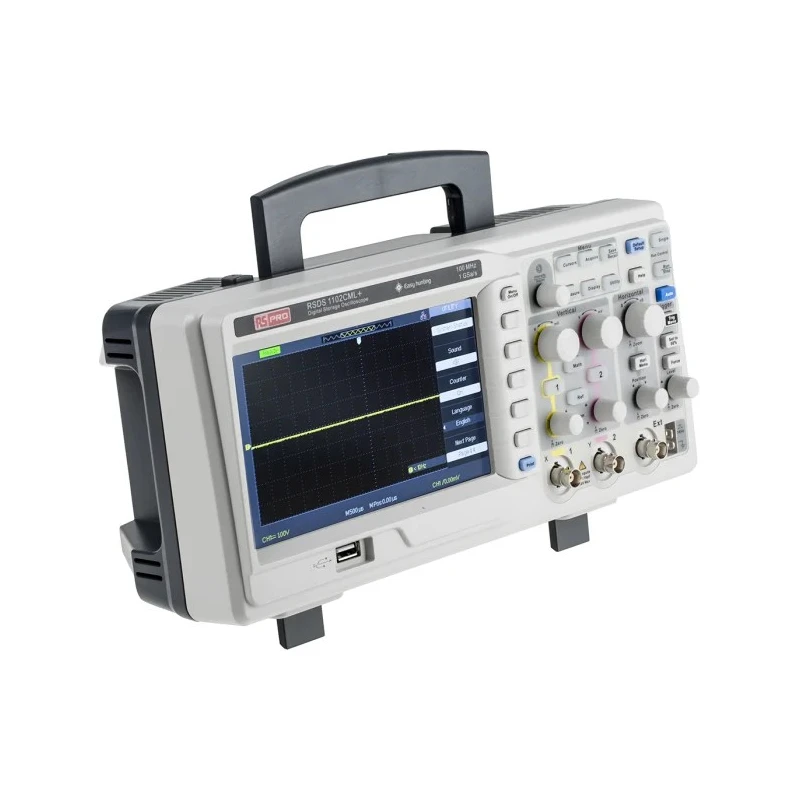

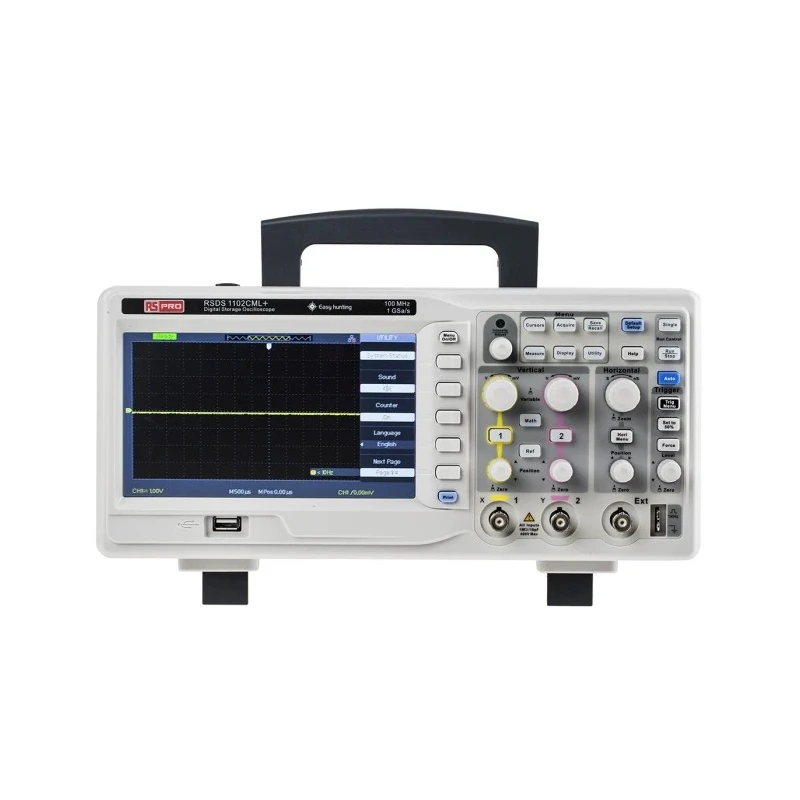

RS PRO 100 MHz Portable Digital Storage Oscilloscope, 2 Channels, 7 Inch TFT LCD, RSDS1000
Specifications
| Country of Origin | China |
|---|---|
| Display Type | TFT LCD |
| Display | Screen |
| Brand | RS PRO |
| Height | 157mm |
| Model | RSDS1000 |
| Depth | 323.1mm |
| Width | 135.6mm |
| Bandwidth | 100MHz |
| Sampling rate | 1 GSa/s (depending on choice of model), equivalent-time sampling rate up to 50 GSa/s |
| Series | RSDS1000 |
| Screen Size | 7 in |
| Plug Type | USB |
| Interfaces | language display and embedded online help |
| Number Of Channels | 2 |
| Vertical Resolution | 8 bit |
| Memory Depth | 2Mpts |
| Rise Time | 3.5ns |
| Interface Type | RS232, USB |
| Oscilloscope Type | Portable |
| Minimum Vertical Sensitivity | 2mV/div |
| Safety Category Level | CAT I, CAT II |
| Oscilloscope Form | Digital Storage |
| Minimum Time Base | 2.5ns/div |
| Maximum Vertical Sensitivity | 10V/div |
| Maximum Time Base | 50s/div |
| Passive probe 1 | 1/10:1 (x2), USB cable, quick start guide, quality certificate, power cord, CD (includes user manual and EasyScopeX software) |
| RS PRO IDS2102A, 100MHz Digital Storage Oscilloscope, 2 Analogue ChannelsBrand | RS PRO |
| Teledyne LeCroy T3DSO1000 Series, 100 MHz Bench Oscilloscope 2-ChannelBrand | Teledyne LeCroy |
| PeakTech PeakTech P 1404 Series, 100 MHz Bench 2-ChannelBrand | PeakTech |
Key Features
- Dual-channel configuration allows independent measurement and comparison of two signals.
- Bandwidth of 100 MHz accommodates a broad spectrum of signal analysis tasks.
- 7 inch TFT LCD offers ample clarity for waveform visualization and detailed signal examination.
- Real-time sampling rate of 1 GSa/s and 2 Mpts memory depth ensure comprehensive signal capture.
- Advanced signal processing features include waveform math functions, FFT, and a frequency counter.
- Multiple triggering mechanisms enhance measurement versatility and response accuracy.
- USB and RS232 interfaces facilitate connectivity for data transfer, remote control, and updates.
- Portable design is suitable for laboratory, field, and commercial environments.
Product Description
The RS PRO RSDS1000 100 MHz Portable Digital Storage Oscilloscope represents a versatile and high-performance solution for capturing, processing, and analyzing electronic signals in a laboratory or industrial environment. Designed with a robust dual-channel configuration, it enables simultaneous measurement of two analog signals, supporting a wide range of testing and troubleshooting scenarios.
This oscilloscope features a substantial 100 MHz bandwidth and a real-time sampling rate of up to 1 GSa/s, allowing for accurate representation of fast signals. Its digital storage capability coupled with a maximum memory depth of 2 Mpts means users can capture lengthy signal sequences and perform detailed post-capture analysis.
The large 7 inch TFT LCD display provides a clear and detailed view of waveforms, facilitating precise measurements with vertical resolution set to 8 bits and minimum vertical sensitivity as low as 2 mV/div. Advanced measurement options include waveform mathematics, FFT analysis, and a 6-digit frequency counter, enhancing its utility for complex tasks.
Trigger modes such as edge, pulse, video, slope, and alternate functions expand operational flexibility, while shortcut storage functions and screensaver capabilities support user efficiency and ergonomics. Multiple interfaces, including RS232 and USB, ensure external control, data transfer, and firmware updating are straightforward and reliable.
Constructed to meet safety standards CAT I and CAT II, the RSDS1000 is well-suited for educational laboratories, electronics troubleshooting, embedded system debugging, mixed-signal design, and automotive electronics testing. Its compact dimensions (323.1 x 135.6 x 157 mm) and weight of 2.5 kg make it easy to deploy in both bench and field setups.

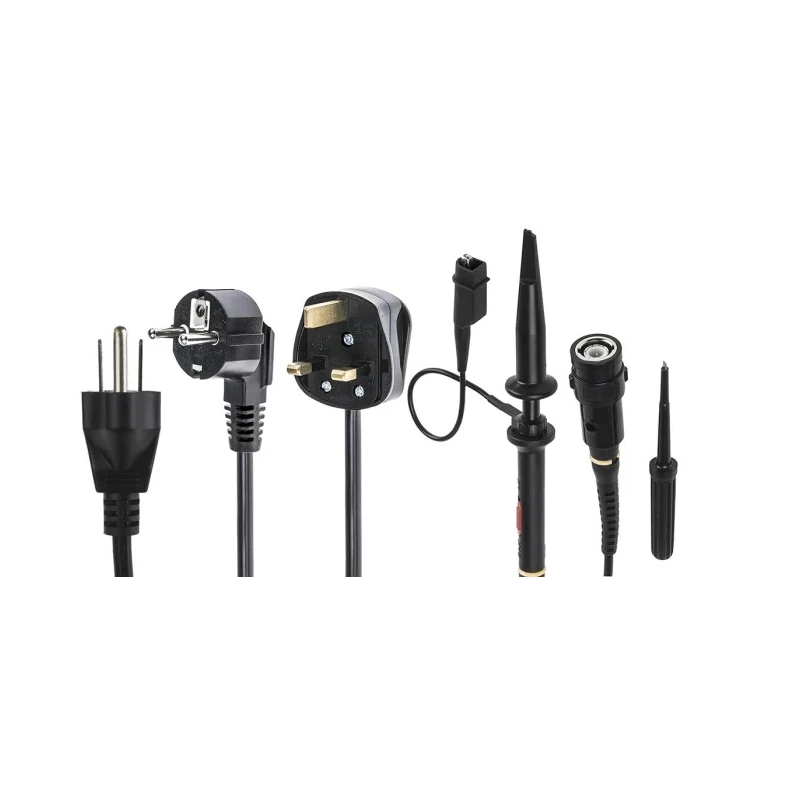

Accessory package includes passive probes (1:1/10:1, x2), USB cable, quick start guide, quality certificate, power cord, and CD with user manual and EasyScopeX software, ensuring readiness for immediate operation.
This dependable portable oscilloscope is a valuable tool for engineers, technicians, and educators seeking reliable measurement and analysis capabilities for industry, laboratory, and commercial applications.
For additional industry-leading Oscilloscopes and measurement instruments, explore the RS PRO category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a bandwidth of 100 MHz, which accommodates a broad spectrum of signal analysis tasks.
It features a real-time sampling rate of 1 GSa/s, allowing for accurate representation of fast signals.
This oscilloscope supports a dual-channel configuration, enabling independent measurement and comparison of two signals.
The memory depth of the RSDS1000 is 2 Mpts, allowing for comprehensive signal capture and detailed analysis.
It is equipped with a 7 inch TFT LCD display, providing clarity for waveform visualization and detailed signal examination.
The dimensions are 323.1 mm in depth, 135.6 mm in width, and 157 mm in height, with a weight of 2.5 kg.
This model includes USB and RS232 interfaces, facilitating data transfer, remote control, and firmware updates.
It includes advanced signal processing features such as waveform math functions, FFT analysis, and a frequency counter.
It is constructed to meet safety standards CAT I and CAT II, suitable for various testing environments.
The minimum vertical sensitivity is 2 mV/div, allowing for precise measurements of low-level signals.
The accessory package includes passive probes (1:1/10:1, x2), USB cable, quick start guide, quality certificate, power cord, and a CD with user manual and EasyScopeX software.
It is suitable for educational laboratories, electronics troubleshooting, embedded system debugging, mixed-signal design, and automotive electronics testing.
