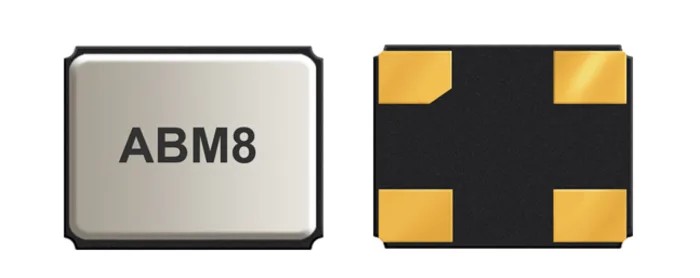

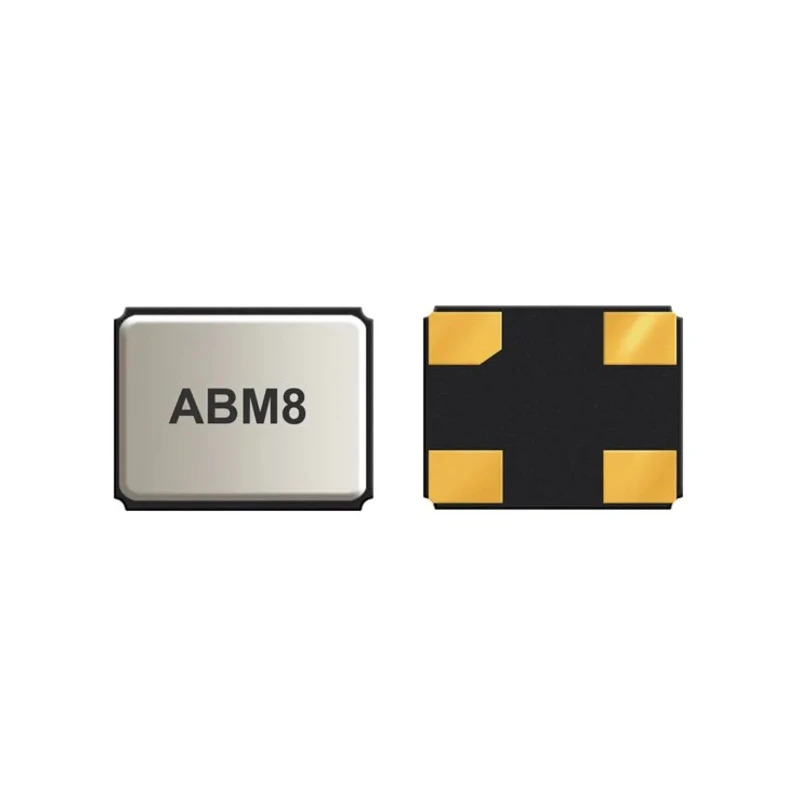

Abracon 12 MHz Crystal Unit Surface Mount 4-Pin 0.8 x 3.2 x 2.5 mm ±20 ppm Frequency Tolerance ABM8-12.000MHZ-B2-T

Abracon ABM8-12.000MHZ-B2-T 12 MHz Crystal Unit Surface Mount provides precise frequency control with ±20 ppm tolerance, packaged in a compact 0.8 mm low-height surface mount case measuring 3.2 mm by 2.5 mm. This crystal unit operates effectively over a temperature range from -20°C to a maximum of 70°C, making it suitable for a variety of industrial and commercial electronic applications.

The device features a 4-pin configuration and 18 pF load capacitance, optimized for fundamental mode and over-tone operation. The seam-sealed package enhances reliability by protecting internal components against environmental factors, supporting long-term stable performance.

Compliant with REACH and RoHS standards, this crystal unit is manufactured in China and meets rigorous environmental and safety requirements. It is designed for use in high density applications such as modems, communication equipment, wireless devices, and test instrumentation where precise frequency stability is critical.

The packaging in tape and reel format supports automated assembly lines, improving production efficiency in mass manufacturing environments. The crystal operates at a standard frequency of 12 MHz. Frequency tolerance is tightly controlled at ±20 ppm.

It features a compact surface mount package with dimensions 3.2 mm length, 2.5 mm width, and 0.8 mm height. Load capacitance is 18 pF suitable for high density PCB applications. Pin count is 4 for stable electrical connection.

Operating temperature ranges from -20°C to 70°C ensuring reliability in various environments. Seam-sealed package construction guarantees long term performance and durability. Designed to meet REACH and RoHS compliance standards.

Ideal for use in modems, communication devices, test equipment, and wireless applications. Packaging comes in tape and reel format facilitating automated placement.

This Abracon Crystal Unit is recommended for industrial electronics, telecommunication infrastructure, laboratory test equipment, and wireless communication applications. EnvMart offers this reliable component for integrating precision timing elements into advanced PCB designs.
