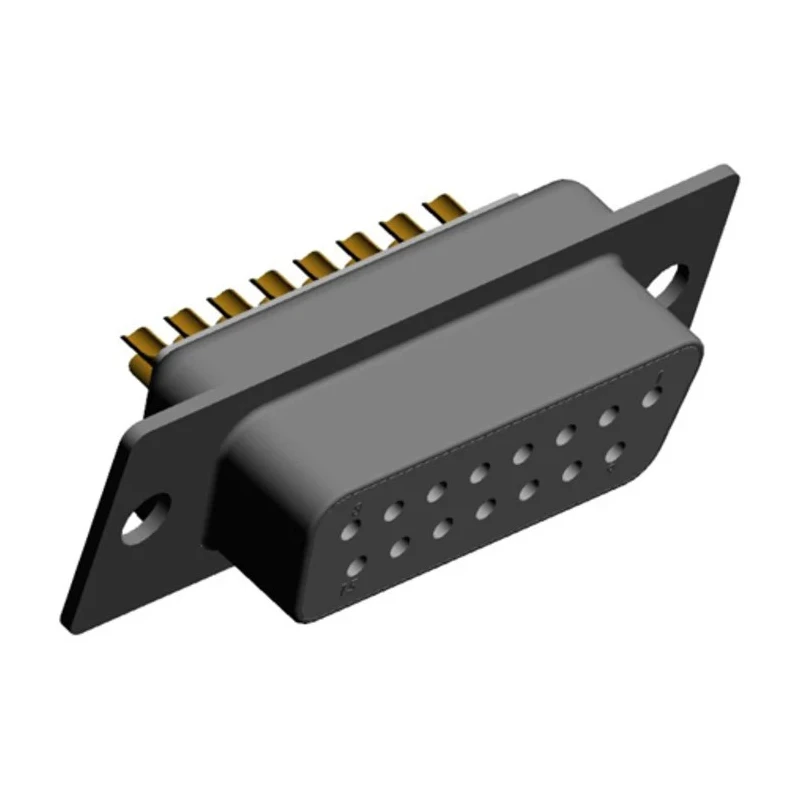

Norcomp SEAL-D 15 Way Straight Cable D-Sub Connector Female 2.769 mm Pitch 500V 5A 772-E15-203R001
Specifications
| Country of Origin | United States |
|---|---|
| Voltage | 500V |
| Brand | Norcomp |
| Orientation | Straight |
| Current | 5A |
| Model | 772-E15-203R001 |
| Mount Type | Cable |
| Housing Material | Steel |
| Contact Material | Brass |
| Series | 772, SEAL-D |
| Termination Type | Solder |
| Maximum Operating Temperature | 100°C |
| Minimum Operating Temperature | -50°C |
| Pitch | 2.769mm |
| Contact Plating | Gold |
| Number of Contacts | 15 |
| Contact Gender | Female |
| Connector Gender | Female |
| Connector Type D | D-Sub |
Key Features
- Provides a 15 contact cable mount connector with female gender.
- Features a straight orientation for ease of installation.
- Constructed with a nickel plated steel shell for enhanced shielding.
- Contacts are brass with gold plating for reliable conductivity.
- Designed to operate reliably between -50°C and 100°C.
- Termination type is solder for secure connections.
- Meets IP67 sealing standard for protection against dust and water immersion.
- Maintains the standard D-Sub physical footprint to allow easy replacements without enclosure redesigns.
Product Description
Norcomp 772-E15-203R001 SEAL-D 15 Way Straight Cable D-Sub Connector Female is engineered with a standard density 2.769 mm pitch suitable for cable mounting in critical applications. It supports electric current up to 5A and voltage ratings up to 500V, making it reliable and capable for demanding electronics connectivity.
The connector is constructed with a nickel-plated steel housing shell which enhances electromagnetic shielding and grounding capability via ground indents. The contacts are high-quality brass with gold plating, ensuring excellent conductivity and corrosion resistance. The connector features a solder termination type ensuring durable solder joint connections.
Designed to IEC-529 IP67 sealing standards, this SEAL-D connector maintains the classic D-Sub size and footprint for straightforward upgrade paths and system compatibility without enclosure modifications.
Operating temperature ranges from -50°C to 100°C allow usage in environments with wide temperature fluctuations. The connector comes in a straight orientation configuration with female contacts and cable mount type, facilitating flexible wiring assemblies.
These connectors are widely used in industrial, medical, marine, and instrumentation equipment that require robust protection against dust and temporary water immersion. Typical applications include handheld devices, remote sensing equipment, transmitters, meters, and portable electric systems where sealed, reliable interconnection is critical.
Provides a 15 contact cable mount connector with female gender. Features a straight orientation for ease of installation. Constructed with a nickel plated steel shell for enhanced shielding. Contacts are brass with gold plating for reliable conductivity.
Designed to operate reliably between -50°C and 100°C. Termination type is solder for secure connections. Meets IP67 sealing standard for protection against dust and water immersion. Maintains the standard D-Sub physical footprint to allow easy replacements without enclosure redesigns.
Ideal for harsh industrial, medical, marine, and outdoor applications requiring durable interconnects.
EnvMart offers this Norcomp SEAL-D series connector for demanding electronics connectivity where environmental sealing and proven electrical performance are mandatory. Browse EnvMart for compatible connectors and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector supports a maximum voltage rating of 500V.
It has a current capacity of up to 5A.
The pitch size is 2.769 mm.
It operates reliably within a temperature range of -50°C to 100°C.
This connector features a solder termination type for secure connections.
The housing is made of nickel-plated steel, and the contacts are brass with gold plating.
Yes, it meets the IP67 sealing standard for protection against dust and water immersion.
This model features a straight orientation for ease of installation.
The connector has 15 contacts.
It is widely used in industrial, medical, marine, and instrumentation equipment that require robust protection against dust and water immersion.
The connector features female contacts.
It maintains the standard D-Sub physical footprint, allowing for easy replacements without enclosure redesigns.
