Artesyn Switching Power Supply 24V DC 1.5 kW Chassis Mount Medical Approved iVS1-5Q0-00-A

Free Delivery in India | Lowest Global Shipping Charges

Artesyn Switching Power Supply 24V DC 1.5 kW Chassis Mount Medical Approved iVS1-5Q0-00-A

Name: Artesyn Switching Power Supply 24V DC 1.5 kW Chassis Mount Medical Approved iVS1-5Q0-00-A
Brand: Artesyn
SKU: 105540



Category Switching Power Supplies Brand Artesyn Condition New

Specifications

Country of Origin	Philippines
Brand	Artesyn
Power	1.5kW
Efficiency	85%
Length	279.4mm
Model	iVS1-5Q0-00-A
Depth	127mm
Gross Weight	907.2g
Width	127mm
Mount Type	Chassis
Series	iVS1
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-40°C
Number of outputs	1
Maximum Input Voltage	300V dc
Standards/Approvals	CE, CB, CQC, cULus, TUV, UL
Maximum Output Voltage	24V dc
SMPS Output Current	62.5A
Minimum Input Voltage	120, 90V dc

Key Features

This chassis mount switching power supply offers a maximum output voltage of 24V DC.
It features a power rating of 1.5 kW with an output current of 62.5A.
Operates reliably between -40°C and 70°C ambient temperature range.
Equipped with intelligent I2C control for monitoring voltage, current, and temperature.
High efficiency of 85% ensures effective power usage and reduced loss.
Designed for high power density with embedded fan control and PFC input.
Complies with medical and safety standards including CE, CB, CQC, cULus, TUV, and UL approvals.

Product Description

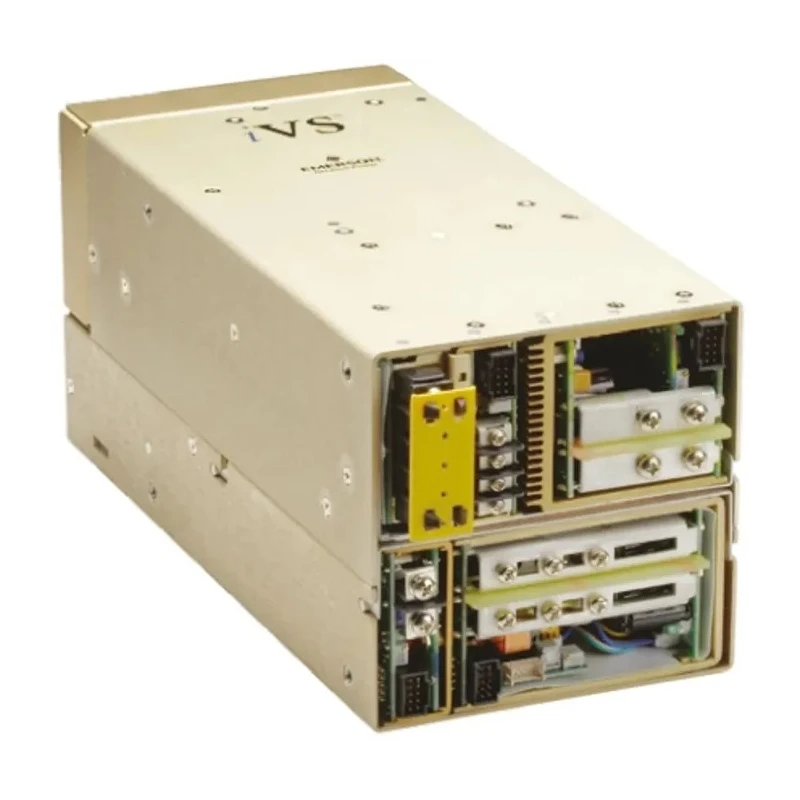

Artesyn iVS1-5Q0-00-A Switching Power Supply is a highly reliable 24V DC 1.5 kW power supply unit designed for medical, military, and industrial applications. Its chassis mount design makes it suitable for embedded system integration where high power density and configurability are critical.

This power supply supports intelligent I2C communication allowing users to monitor and control critical parameters such as voltage, current, and temperature. The unit is designed to operate across a wide temperature range from -40°C to 70°C, ensuring robustness in diverse environments.

With a maximum input voltage of 300V DC and output current up to 62.5A, the device delivers consistent power output with an efficiency rating of 85%. The smart fan and power factor correction (PFC) features optimize thermal management and energy usage.

The device meets stringent regulatory approvals including CE, CB, CQC, cULus, TUV, and UL, supporting its application in medical-grade equipment as well as military and industrial systems.

This switching power supply offers configurable current and voltage on all outputs beyond 10A. Embedded fan control ensures effective thermal management tailored to usage demands. High power density delivers 150% of the conventional power supply solutions of similar footprint.

Configurable input and output options enhance flexibility for critical applications. Fully medical approved, suitable for medical device usage requiring stringent compliance. Durable construction optimized for chassis mounting in various industrial environments.

Available in a compact size with dimensions 279.4mm length, 127mm width, and 127mm depth, the unit weighs approximately 907.2 grams, facilitating integration without excessive bulk.

This Artesyn power supply is ideal for industrial manufacturing, laboratory testing, medical instrumentation, and other embedded electronics applications where high performance and reliability are required.
