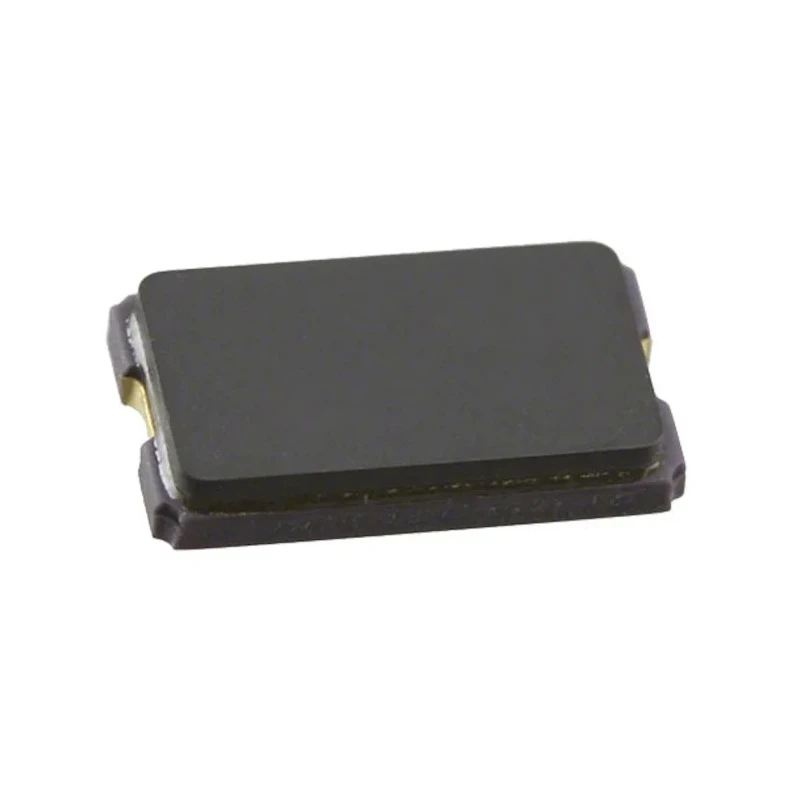

Abracon 12 MHz Crystal ±20 ppm Surface Mount 5 mm x 3.2 mm x 1.3 mm ABM3-12.000MHZ-D2Y-T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 1.3mm |
| Length | 5mm |
| Model | ABM3 |
| Packaging | Tape & Reel |
| Width | 3.2mm |
| Mount Type | Surface |
| Series | ABM3 |
| Maximum Operating Temperature | 85°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | REACH, RoHS |
| Standard Frequency | 12MHz |
| Load Capacitance | 18pF |
| Series Resistance | 60Ω |
Key Features
- Operates at a standard frequency of 12 MHz.
- Surface mount package measuring 5 mm length, 3.2 mm width, and 1.3 mm height.
- Load capacitance is 18 pF ensuring stability in oscillating circuits.
- Suitable for operating temperatures from -40°C to 85°C.
- Series resistance of 60 Ω optimized for efficient signal conduction.
- Hermetically glass-sealed ceramic package for long-term reliability.
- Ideal for use in cellular telephones, pagers, PCMCIA, wireless applications, and communication test equipment.
- Complies with REACH and RoHS standards ensuring environmental safety.
Product Description
Abracon ABM3-12.000MHZ-D2Y-T is a 12 MHz crystal unit designed with a compact ceramic surface mount package measuring 5 mm in length, 3.2 mm in width, and 1.3 mm in height. Featuring a frequency tolerance of ±20 ppm and frequency stability of ±30 ppm, this crystal ensures high precision timing suitable for a variety of industrial and consumer electronic applications.
The ABM3 series crystal is constructed with a ceramic case and hermetic glass sealing to maintain performance stability under environmental stress. Its 18 pF load capacitance and 60 Ω series resistance further enhance oscillation quality and signal integrity.
This crystal operates reliably across a wide temperature range from -40°C to 85°C, making it ideal for demanding environments in industrial, telecommunications, and wireless communication sectors.
Applications include use in cellular telephones, pagers, PCMCIA cards, wireless modules, and communication and test equipment requiring precise frequency control. The product comes packaged in tape & reel format to facilitate efficient automated PCB assembly processes, increasing production throughput and minimizing handling damage.
Operates at a standard frequency of 12 MHz with ±20 ppm tolerance. Compact surface mount package of 5 mm × 3.2 mm × 1.3 mm dimensions. Load capacitance of 18 pF for stable oscillation. Wide operating temperature range from -40°C to 85°C.
Hermetically glass-sealed ceramic case ensures durability. Series resistance optimized at 60 Ω. Compliant with REACH and RoHS environmental standards. Suitable for industrial, telecommunications, and wireless applications.
Packaged in tape & reel for automated manufacturing. Explore more quality electronic components and crystal units at EnvMart for reliable industrial and commercial applications.
Explore more products in our Crystals, Oscillators & Resonators category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The standard frequency of this crystal unit is 12 MHz.
This model has dimensions of 5 mm in length, 3.2 mm in width, and 1.3 mm in height.
The load capacitance of this crystal is 18 pF, which ensures stability in oscillating circuits.
The series resistance of this unit is optimized at 60 Ω for efficient signal conduction.
It operates reliably across a wide temperature range from -40°C to 85°C.
This crystal is packaged in tape & reel format, facilitating efficient automated PCB assembly processes.
It complies with REACH and RoHS standards, ensuring environmental safety.
This model features a surface mount design.
It is suitable for use in cellular telephones, pagers, PCMCIA cards, wireless modules, and communication test equipment.
The frequency tolerance of this crystal unit is ±20 ppm, ensuring high precision timing.
This crystal is constructed with a hermetically glass-sealed ceramic package for long-term reliability.
This crystal belongs to the ABM3 series.
