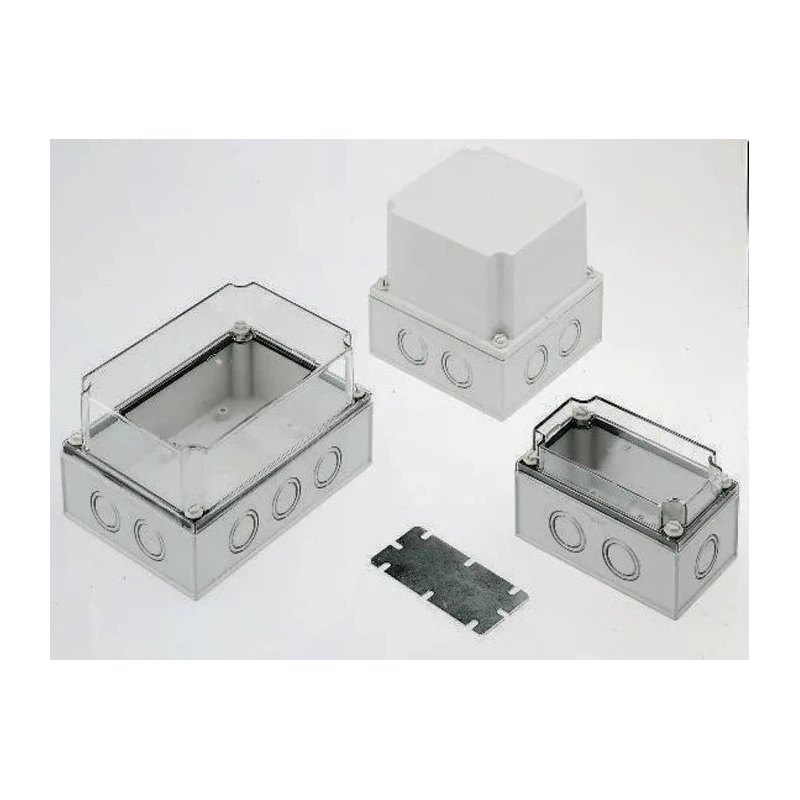

Fibox Grey Grey Lid Polycarbonate Enclosure IP66 IP67 IK08 100 mm x 180 mm x 180 mm

Fibox PCM 175/100 G ENCLOSURE is a high-performance grey polycarbonate enclosure designed for general purpose electrical and electronic applications. It is dimensioned at 100 mm height, 180 mm width, and 180 mm length, ideal for housing various electronic components and circuitry.

The enclosure body and lid are manufactured from robust polycarbonate material, providing excellent mechanical strength and resistance to environmental factors. The grey color (RAL7035) ensures it fits into industrial setups with standard color coding conventions.

Offering ingress protection ratings IP66 and IP67, this enclosure guarantees complete protection against dust ingress and temporary immersion in water, securing sensitive electrical components safely. Furthermore, the IK08 rating attests to its resistance against impacts, making it suitable for harsh industrial environments.

The gasket is made of thermoplastic elastomer (TPE) material, providing resistance to oil, water, and acidic substances. Captive polyamide screws ensure the lid remains firmly attached and prevents accidental loss during maintenance. Built-in knockouts facilitate easy cable or conduit entries, allowing flexible installation.

With a flame resistance rating conforming to UL94-V5 and self-extinguishing properties, the enclosure adheres to strict safety standards required in industrial and commercial settings. It performs reliably across wide temperature ranges from -40°C to +80°C for continuous operation, withstanding short-term conditions up to +120°C.

This Fibox enclosure is widely used in applications including test and measurement instrumentation, medical equipment, transportation controls, industrial automation, and lighting systems. It comes complete with mounting plate and DIN rail screws, gasket, and cover screws for a ready-to-install solution.

Constructed from durable polycarbonate material ensuring strong protection. Features a grey body and lid with RAL7035 color coding for easy identification. Offers IP66 and IP67 ingress protection ratings for dust-tight and waterproof sealing.

Equipped with an IK08 rating to resist mechanical impacts effectively. Includes a thermoplastic elastomer gasket resistant to oil, water, and acid. Fitted with captive polyamide screws for secure lid fastening. Built-in knockouts facilitate easy cable entries and modifications.

Flame resistance certified to UL94-V5 standard and self-extinguishing safety. Operates reliably in wide temperature ranges from -40°C to +80°C, with short term tolerance up to +120°C. Supplied complete with TPE gasket, screws for mounting plate or DIN rail, and lid cover screws.
