Abracon 24 MHz Crystal ±30 ppm Surface Mount 5 mm x 3.2 mm x 1.3 mm ABM3C-24.000MHZ-D4Y-T

Free Delivery in India | Lowest Global Shipping Charges

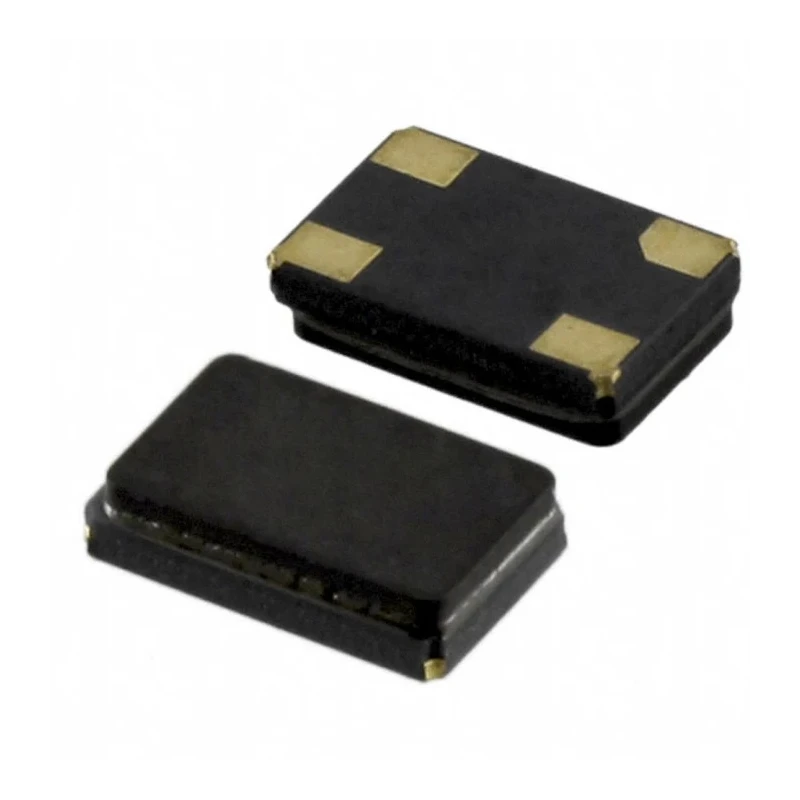

Abracon 24 MHz Crystal ±30 ppm Surface Mount 5 mm x 3.2 mm x 1.3 mm ABM3C-24.000MHZ-D4Y-T

Name: Abracon 24 MHz Crystal ±30 ppm Surface Mount 5 mm x 3.2 mm x 1.3 mm ABM3C-24.000MHZ-D4Y-T
Brand: Abracon
SKU: 150749
Price: 0.69 USD
Availability: InStock



Category Crystals, Oscillators & Resonators Brand Abracon Condition New

Specifications

Country of Origin	China
Brand	Abracon
Height	1.3mm
Length	5mm
Model	ABM3C
Packaging	Tape & Reel
Width	3.2mm
Mount Type	Surface
Series	ABM3C
Maximum Operating Temperature	85°C
Package Type	Surface Mount
Minimum Operating Temperature	-40°C
Standards/Approvals	RoHS, REACH
Standard Frequency	24MHz
Load Capacitance	18pF
Series Resistance	50Ω
Abracon 24 MHz Crystal ±30 ppm Surface Mount 1.3 mm 5 mm 3.2mmBrand	Abracon

Key Features

This crystal operates at a standard frequency of 24 MHz with a frequency tolerance of ±30 ppm.
Surface mount package with compact dimensions of 5 mm length, 3.2 mm width, and 1.3 mm height.
Load capacitance is rated at 18 pF for optimal circuit matching.
Features a series resistance of 50 Ω to maintain signal integrity.
Operational temperature range from -40°C to 85°C ensures reliability in various environments.
Packaged in tape and reel format for automated assembly processes.
Manufactured in China, compliant with RoHS and REACH standards for environmental safety.

Product Description

Abracon ABM3C-24.000MHZ-D4Y-T 24 MHz Crystal is a high-precision surface mount crystal unit designed specifically for thin and compact electronic equipment requiring tight frequency tolerance and stability. Its ceramic case dimensions measure 5 mm in length, 3.2 mm in width, and 1.3 mm in height, making it well-suited for high-density applications such as wireless communication, PCMCIA devices, pagers, and test equipment.

The crystal operates at a standard frequency of 24 MHz with a frequency tolerance and stability of ±30 ppm. It features a load capacitance of 18 pF, a series resistance of 50 Ω, and can reliably operate within the temperature range of -40°C to +85°C. The device comes in a tape and reel packaging style to facilitate automated PCB assembly and manufacturing processes. It complies with RoHS and REACH environmental standards ensuring safe use in industrial and commercial electronic products.

Abracon's ABM3C series 24 MHz crystal units are widely used in applications that demand reliable timing and frequency control in compact form factors. Typical use cases include communication devices, wireless modules, pagers, and PCMCIA card applications in industrial, laboratory, and commercial electronics manufacturing.

Standard frequency: 24 MHz with ±30 ppm frequency tolerance. Surface mount package in compact 5 mm x 3.2 mm x 1.3 mm ceramic case. Load capacitance: 18 pF suitable for precise circuit tuning. Series resistance of 50 Ω ensures stable oscillator performance.

Operational temperature from -40°C to 85°C for diverse environments. Compliant with RoHS and REACH for environmental safety. Packaging: Tape and reel ideal for automated production lines.

This crystal is manufactured in China and is new and unused, assuring quality and performance for demanding electronics applications. Explore the full Abracon range of crystals and oscillators on EnvMart for precision timing solutions in electronics design and development.
