Nexperia Transistor, NPN Bipolar, 500 mA Collector Current, 45 V Collector Emitter Voltage, 3-Pin TO-236 BC817-40,235

Nexperia BC817-40,235 is a single NPN bipolar transistor housed in a small 3-pin TO-236 surface mount package. It supports a maximum DC collector current of 500 mA and collector-emitter voltage up to 45 V, making it well suited for low power signal amplification and switching tasks.

This device operates over a wide temperature range from -65°C minimum to 150°C maximum, providing robust performance across harsh industrial, automotive, and consumer electronics environments. The transistor has a minimum DC current gain of 40 and a maximum power dissipation of 250 mW, allowing efficient operation in signal circuits.

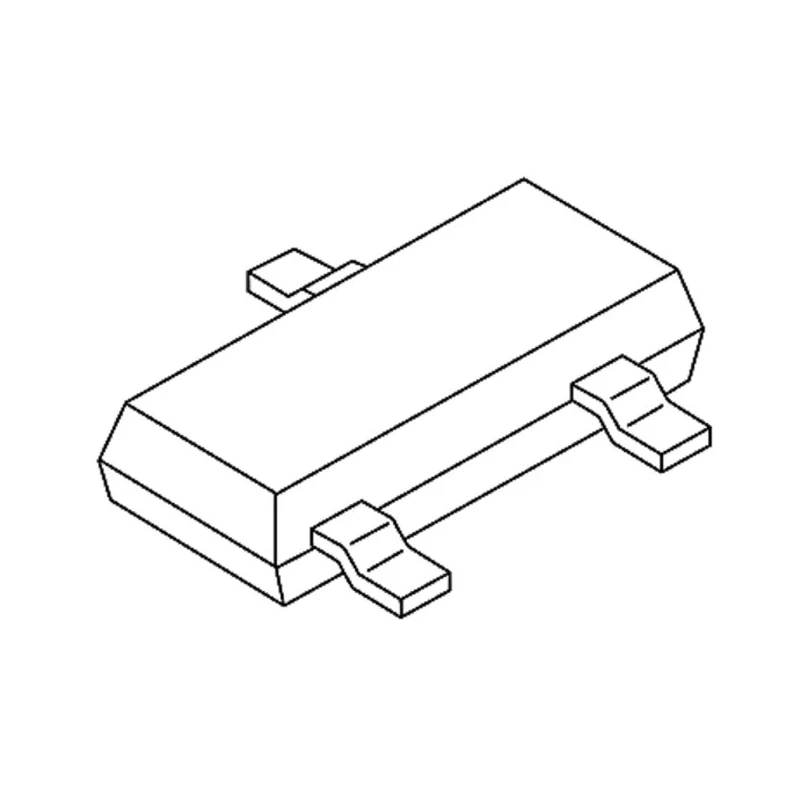

The compact TO-236 package features dimensions of approximately 3 mm in length, 1.4 mm in width, and 1.1 mm in height, allowing space-saving PCB design. It mounts on the surface, facilitating automated assembly in manufacturing.

This transistor series is part of the broad BC817 range offering various package and configuration options. Its compliance with the automotive AEC-Q101 standard ensures high reliability for automotive and industrial uses.

The transistor is ideal for general purpose switching and amplification applications in electronic circuits. Typical use cases include signal processing in industrial control, consumer electronics, and automotive systems.

The high gain and voltage ratings provide versatility across numerous circuit designs. Small size and surface mount configuration support automated PCB assembly and compact product design. Performance characteristics suit both prototyping and volume production environments.

Choose Nexperia BC817-40,235 for reliable, efficient transistor operation with robust industrial and automotive standards compliance. Browse the Electronics category at EnvMart for related semiconductor components and bipolar transistor products to support your application needs.
