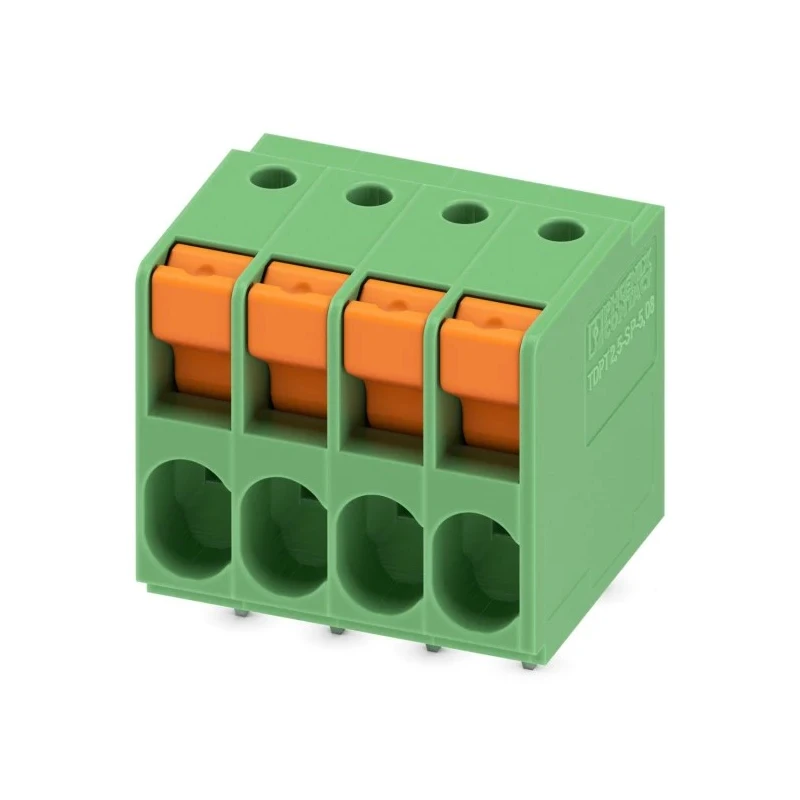

Phoenix Contact TDPT 2.5/ 4-SP-5.08 Series Straight Wave Soldering Mount PCB Terminal Block, 4 Contacts, 5.08 mm 1017505
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 400V |
| Brand | Phoenix Contact |
| Orientation | Straight |
| Current | 32A |
| Model | 1017505 |
| Mount Type | Wave Soldering Mount |
| Housing Material | Polyamide |
| Series | TDPT 2.5/ 4-SP-5.08 |
| Number of Rows | 1 |
| Pitch | 5.08mm |
| Standards/Approvals | WEEE/RoHS-compliant |
| Number of Contacts | 4 |
| PCB Terminal block, nominal current | 32 A, nom. voltage: 400 V, pitch: 5.08 mm, number of positions: 4, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: green |
Key Features
- The terminal block supports nominal current of 32 A and nominal voltage of 400 V.
- Constructed from durable polyamide housing material ensuring reliability.
- Features push-in spring connection for easy and time-saving installation without tools.
- Orientation is straight with a single row configuration and color-coded green lever for intuitive use.
- Complies with WEEE and RoHS standards for environmental safety.
- Manufactured to ensure stable long-term contact force for reliable electrical connection.
Product Description
Phoenix Contact 1017505 PCB Terminal Block is a robust wave soldering mount component designed for electronic and electrical applications requiring a reliable connection. It features 4 contacts with a pitch of 5.08 mm and supports a nominal current of 32 A and nominal voltage of 400 V, making it suitable for a wide range of PCB interconnection tasks.
The housing material is polyamide, providing excellent mechanical strength and chemical resistance. The single-row, straight orientation terminal block includes a push-in spring connection mechanism that enables easy, tool-free connection and disconnection of conductors.
Thanks to the defined and stable contact force, this terminal block maintains durable and reliable electrical connections even under long-term operation. The green color-coded actuation lever enhances intuitive usage and handling during installation or maintenance.
This product complies with WEEE and RoHS environmental directives, ensuring it meets modern regulatory requirements for electronic components.
The wave soldering mount type is optimized for PCB assembly processes involving soldering, suitable for automated production lines. The conductor/PCB connection direction is 0 degrees, aligning with standard PCB layouts.
The terminal block supports nominal current of 32 A and nominal voltage of 400 V. Durable polyamide housing ensures mechanical and chemical stability. Push-in spring connection saves installation time by eliminating the need for tools.
Color-coded green lever provides intuitive operation. Compliant with WEEE and RoHS environmental standards. Designed for wave soldering mounting process on PCB assemblies.
This terminal block is ideal for industrial, manufacturing, electrical equipment, and automation applications requiring secure and efficient PCB connectivity solutions. Browse more PCB Terminal Blocks and related components in EnvMart to meet diverse assembly needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal block supports a nominal current of 32 A and a nominal voltage of 400 V.
The contacts have a pitch size of 5.08 mm.
It features 4 contacts in total.
It utilizes a push-in spring connection method, allowing for easy, tool-free installation.
The terminal block has a straight orientation with a single row configuration.
The housing is constructed from polyamide, providing mechanical strength and chemical resistance.
This product complies with WEEE and RoHS environmental standards.
It is designed for wave soldering mount, suitable for PCB assembly processes.
The conductor/PCB connection direction is 0 degrees, aligning with standard PCB layouts.
Yes, the actuation lever is color-coded green for intuitive operation.
It is ideal for industrial, manufacturing, electrical equipment, and automation applications requiring secure PCB connectivity solutions.
The country of origin for this terminal block is China.
