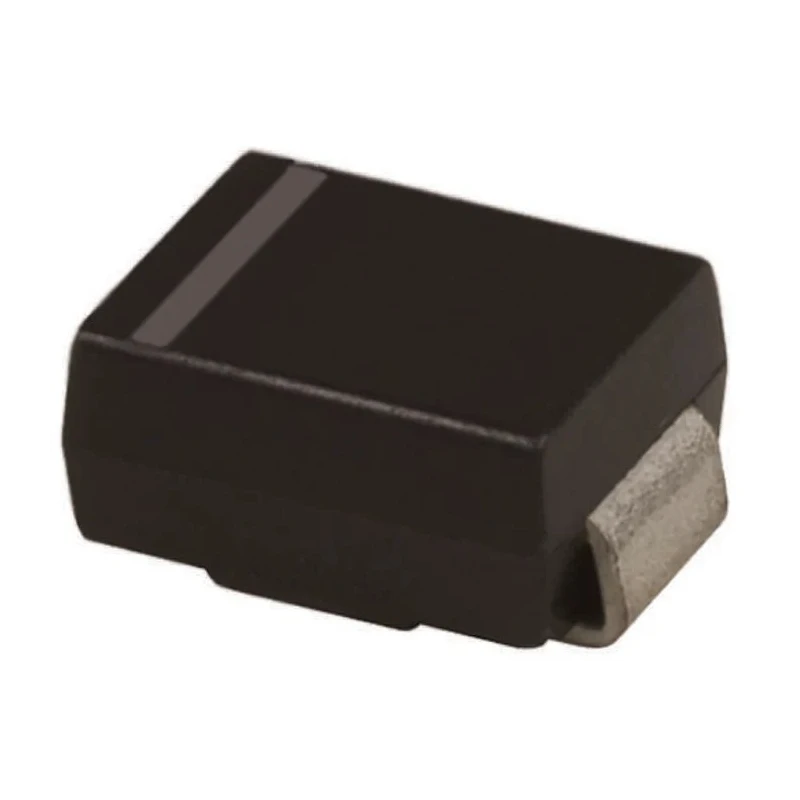

STMicroelectronics 600 V 2 A Surface Mount Switching Diode DO-214AA STTH2R06U
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 2.25mm |
| Brand | STMicroelectronics |
| Height | 2.45mm |
| Length | 4.6mm |
| Model | STTH2R06U |
| Width | 3.95mm |
| Mount Type | Surface |
| Series | STTH2R06 |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-214AA |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 2A |
| Peak Reverse Repetitive Voltage Vrrm | 600V |
| Diode Configuration | Single |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 2μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 30A |
| Maximum Forward Voltage Vf | 1.7V |
| Peak Reverse Recovery Time trr | 50ns |
Key Features
- Maximum continuous forward current of 2 amperes ensures reliable performance.
- Peak reverse repetitive voltage rated at 600 volts.
- Low peak reverse current of 2 microamperes enhances device efficiency.
- Extends operation from -40°C to 175°C, suitable for harsh environments.
- Peak non-repetitive forward surge current of 30 amperes for high transient tolerance.
- Maximum forward voltage drop of 1.7 volts minimizes power loss.
- Fast reverse recovery time of 50 nanoseconds supports high-speed switching.
- Compact DO-214AA surface mount package with dimensions 4.6 mm length and 3.95 mm width.
Product Description
STMicroelectronics STTH2R06U is a high-quality switching diode designed for surface mount applications with a compact DO-214AA package. It is rated for a maximum continuous forward current of 2 A and a peak reverse repetitive voltage of 600 V, making it suitable for efficient switching and rectification in power electronics circuits.
The device achieves a low peak reverse current of 2 µA, ensuring minimal leakage and improved circuit performance. It operates reliably over a wide temperature range from -40°C to 175°C, addressing the needs of industrial and automotive environments where thermal stability is critical.
Key electrical characteristics include a peak non-repetitive forward surge current of 30 A and a maximum forward voltage of 1.7 V, which help minimize power dissipation during operation. The diode features a fast peak reverse recovery time of 50 ns, allowing effective high-speed switching applications.
The compact DO-214AA package measures 4.6 mm by 3.95 mm with a height of 2.45 mm, making it ideal for space-constrained soldering on printed circuit boards. Compliance with RoHS standards ensures the diode meets environmental safety regulations.
This diode is commonly used in industrial power supplies, automotive electronics, consumer electronics, and other applications requiring robust switching diodes. Its excellent surge handling and thermal limits make it suitable for demanding industrial automation and control systems.
Maximum continuous forward current of 2 amperes ensures reliable performance. Peak reverse repetitive voltage rated at 600 volts. Low peak reverse current of 2 microamperes enhances device efficiency. Broad operating temperature range from -40°C to 175°C.
Fast reverse recovery time of 50 nanoseconds supports high-speed switching. Compact DO-214AA surface mount package with precise dimensions. Peak non-repetitive forward surge current of 30 amperes for transient tolerance.
Maximum forward voltage of 1.7 volts minimizes losses during conduction. RoHS compliant, environmentally friendly design. Ideal for industrial, automotive, and power electronics applications. Explore all STMicroelectronics semiconductors and Switching Diodes on EnvMart for comprehensive component solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this model is 2 amperes.
It has a peak reverse repetitive voltage rating of 600 volts.
The peak reverse current is rated at 2 microamperes.
The maximum forward voltage drop for this diode is 1.7 volts.
The peak non-repetitive forward surge current is 30 amperes.
It operates reliably over a temperature range from -40°C to 175°C.
The dimensions of the DO-214AA package are 4.6 mm in length, 3.95 mm in width, and 2.45 mm in height.
The peak reverse recovery time is 50 nanoseconds.
Yes, this diode is RoHS compliant, meeting environmental safety regulations.
This model is designed for surface mounting.
It is commonly used in industrial power supplies, automotive electronics, and consumer electronics.
This diode has a pin count of 2.
