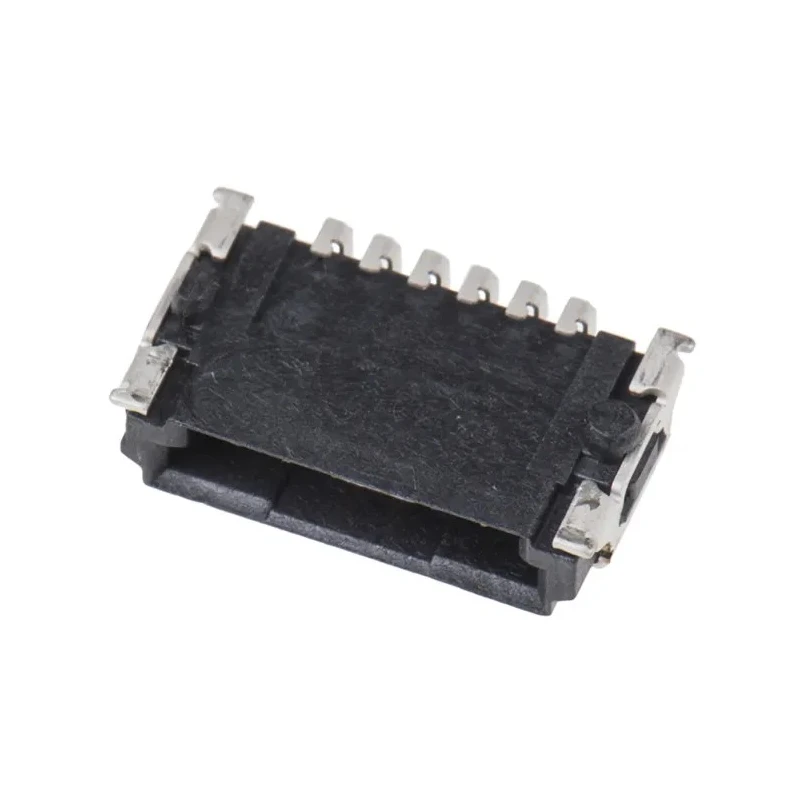

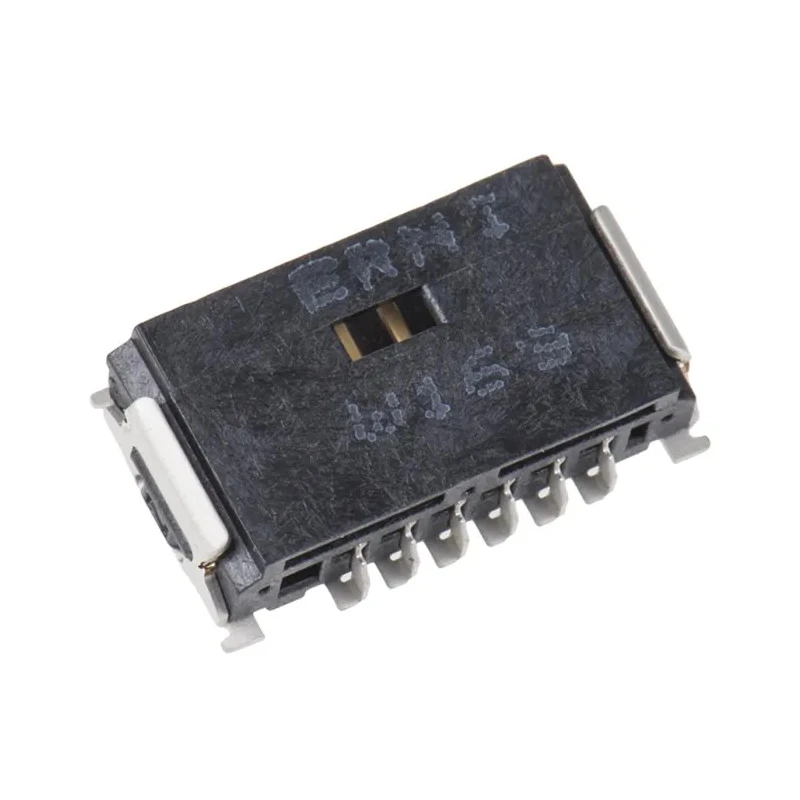

ERNI MiniBridge Series Right Angle Surface PCB Header 6 Contacts 1.27 mm Pitch 1 Row Shrouded 214013 / 214013-E

Free Delivery in India | Lowest Global Shipping Charges

ERNI MiniBridge Series Right Angle Surface PCB Header 6 Contacts 1.27 mm Pitch 1 Row Shrouded 214013 / 214013-E

Name: ERNI MiniBridge Series Right Angle Surface PCB Header 6 Contacts 1.27 mm Pitch 1 Row Shrouded 214013 / 214013-E
Brand: ERNI
SKU: 150071
Price: 2.09 USD
Availability: InStock



Category PCB Header Brand ERNI Condition New

Specifications

Country of Origin	Germany
Voltage	300V
Brand	ERNI
Orientation	Right Angle
Current	8A
Model	214013 / 214013-E
Mount Type	Surface
Housing Material	Liquid Crystal Polymer
Contact Material	Copper Alloy
Series	MiniBridge
Termination Type	Solder
Maximum Operating Temperature	150°C
Minimum Operating Temperature	-55°C
Number of Rows	1
Pitch	1.27mm
Contact Plating	Gold
Number of Contacts	6
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board

Key Features

Compact right angle orientation ensures efficient PCB layout.
Rated current capacity up to 8A for demanding electrical applications.
Constructed with liquid crystal polymer housing for high temperature tolerance.
Gold plated copper alloy contacts provide excellent conductivity and corrosion resistance.
Designed for lead-free reflow soldering up to 150°C maximum operating temperature.
Ruggedized retention clips and pick-and-place cover support automated assembly.
Bear minimum operating temperature of -55°C suitable for harsh environments.
Supports up to 500 mating cycles ensuring long service life.

Product Description

ERNI 214013 / 214013-E MiniBridge Series Right Angle Surface PCB Header is an industrial-grade connector designed for reliable wire-to-board applications. It features 6 male contacts arranged in a single row with a precise 1.27 mm pitch, ensuring compatibility with MiniBridge cable systems.

The housing is made from liquid crystal polymer, providing excellent durability and resistance to high temperatures up to 150°C, suitable for lead-free soldering processes. The gold plated copper alloy contacts enhance electrical conductivity and corrosion resistance.

This shrouded right angle header includes ruggedized metal clips on both sides to secure retention force and two positioning pegs for exact placement during PCB assembly. The pick-and-place cover facilitates automated manufacturing workflows.

Capable of handling up to 8A current, this connector operates reliably across a wide temperature range from -55°C to 150°C. It endures at least 500 mating cycles, making it ideal for automotive, industrial electronics, consumer devices, and medical equipment.

Manufactured in Germany, it complies with stringent quality standards yet does not carry specific certifications. Its 300V voltage rating supports diverse power and sensor signal requirements.

Compact right angle design for PCB mounting. Robust liquid crystal polymer housing. Gold plated copper alloy contacts for durability and conductivity. Supports automated assembly methods with retention clips. High current rating of 8A and wide temperature operation.

Shrouded to prevent damage and misalignment. Exact positioning with dual pegs. 500 mating cycles for longevity. Manufactured in Germany.

This MiniBridge Series PCB header provides a dependable electrical connection solution for industrial and commercial electronics requiring compact, high-performance connectors. Explore more PCB Headers and electronic components with EnvMart for robust wiring and assembly.
