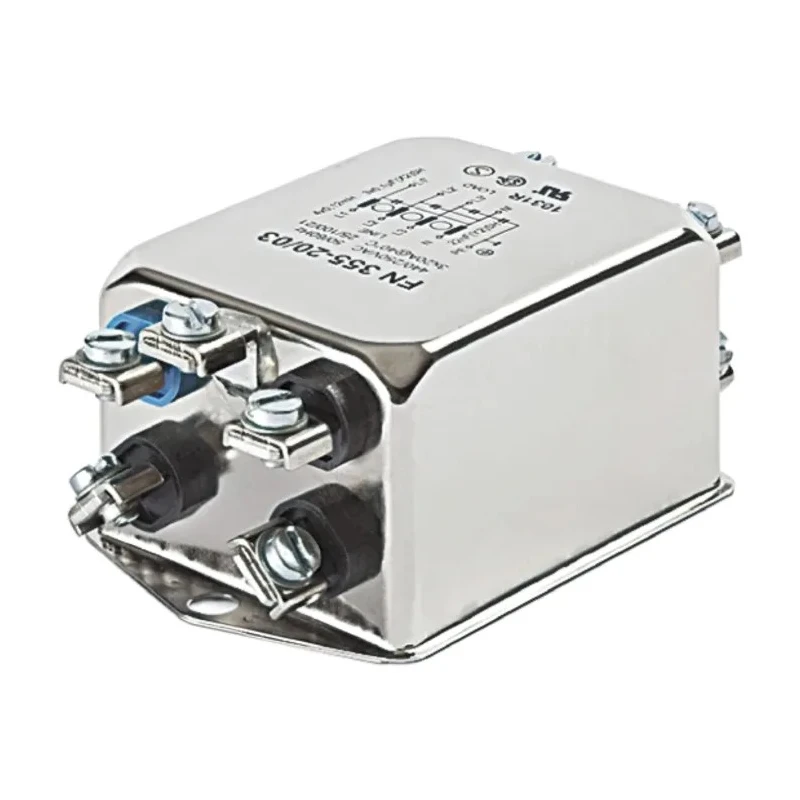

Schaffner Chassis Mount EMI Filter 3 Phase 3A 440V ac 400Hz Fast-On Terminals FN355

Schaffner FN355 chassis mount EMI filter is designed for industrial and commercial use with a maximum current rating of 3A and maximum voltage of 440V AC at an operating frequency of 400Hz. It features a robust metal chassis mount housing and fast-on terminals for easy installation and maintenance.

This single-stage EMI filter utilizes a four-wire LC circuit to achieve exceptionally low leakage current of 70μA and power loss of only 1.4W. It performs well across a wide temperature range from -25°C to 100°C, making it suitable for demanding environments.

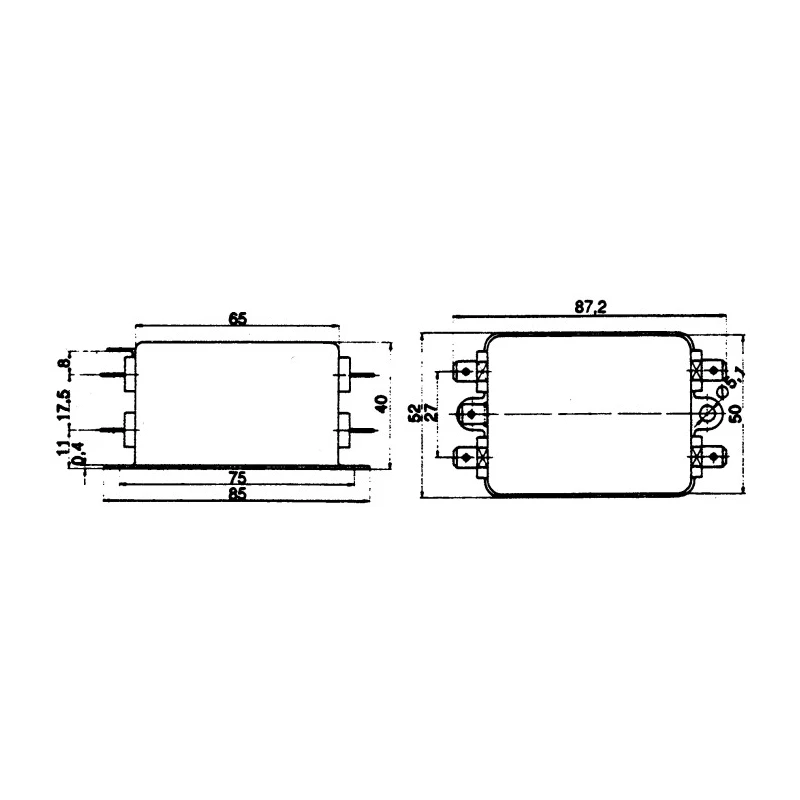

The filter's compact dimensions (54mm length, 87.2mm depth, and 40.3mm height) allow space-saving integration in electrical and electronic equipment implementations. It is ideal for use in star and delta power networks as well as filtering in medical devices, office equipment, and various four-wire power applications requiring EMI suppression.

Compact metal chassis mount construction. Fast-on termination style for secure electrical connections. Single stage four wire LC circuit for low leakage. Wide operating temperature range from -25°C to 100°C. Low leakage current of 70μA.

3-phase 3A current rating at 440V AC. Applicable to star and delta networks and medical equipment filtering.

These EMI filters are cost-effective solutions to interference suppression in power networks. Their robust design ensures long service life and consistent performance in industrial, laboratory, commercial, and medical environments. The FN355 series provides flexible options with different current ratings and configurations for various application needs.

The Schaffner FN355 EMI filter is a trusted component for engineers focusing on EMI compliance and signal integrity in power line filtering solutions. Browse additional Schaffner EMI Filters and related power line filter products in the Electronics Components category at EnvMart for complete industrial electrical filtering solutions.
