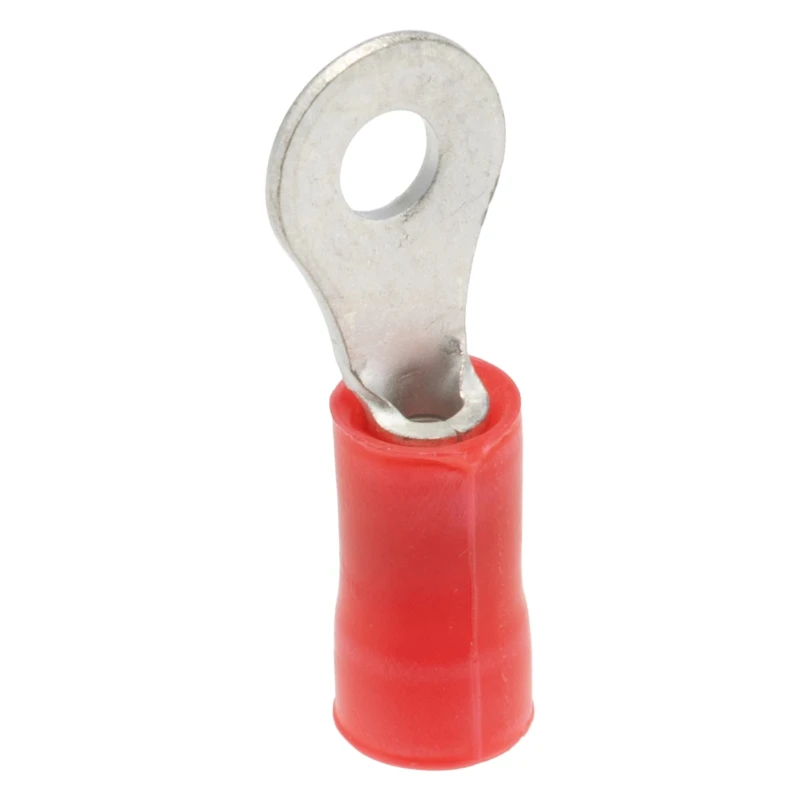

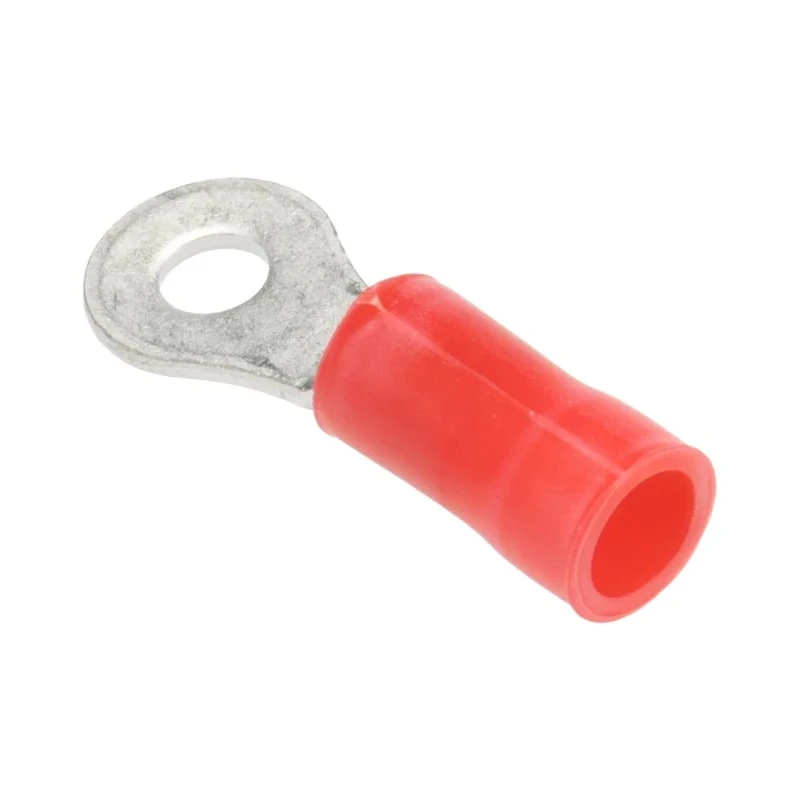

TE Connectivity PLASTI-GRIP Insulated Ring Terminal 2.84 mm Stud Size 22 AWG to 16 AWG Wire Size Red 34143

TE Connectivity 34143 PLASTI-GRIP Insulated Ring Terminal is engineered for reliable electrical connections in a variety of industrial, HVAC, manufacturing, and laboratory applications. This ring terminal features a 2.84 mm stud size and supports wire sizes from 22 AWG to 16 AWG, corresponding to 0.26 mm² to 1.65 mm², making it suitable for medium gauge wiring tasks where secure and efficient connectivity is critical.

The terminal body is made from high conductivity copper with tin plating, providing excellent electrical performance and corrosion resistance. Its vinyl insulation sleeve is rated 94V-0 for high dielectric strength, which protects against electrical shorts and environmental factors. The serrated interior barrel ensures maximum electrical contact and mechanical strength after crimping, enhancing the durability of electrical assemblies.

Designed with a funnel entry, the terminal facilitates easy insertion of stripped wires, simplifying installation and improving crimp quality. The terminal's outer ring diameter of 7.14 mm and inner ring diameter of 3.02 mm are carefully dimensioned to maintain firm fastening on stud posts. Its overall length of 20.55 mm and 0.79 mm thickness provide a compact yet robust profile for tight installation spaces.

This ring terminal is color-coded red for quick identification of wire gauge compatibility within electrical panels and wiring harnesses. It withstands operating temperatures up to 105°C, ensuring performance stability under thermal stress. The product is manufactured in the United States under TE Connectivity's quality standards, supporting demanding environments in electronics, power connectors, industrial automation, and electrical distribution systems.

Constructed from copper with tin plating for corrosion resistance. Vinyl insulation rated 94V-0 for dielectric strength. Inner serrated barrel provides superior electrical contact. Funnel entry eases wire insertion for reliable crimping.

Red insulation for identification of 22 to 16 AWG wire sizes. Operates up to 105°C safely in diverse electrical applications.

These Ring Terminals are essential components for reliable electrical wiring in industrial automation, machinery control panels, HVAC systems, and electronic equipment maintenance. By choosing TE Connectivity PLASTI-GRIP terminals, technicians and engineers ensure secure, durable, and code-compliant wire connections. Explore further products in the Wire Terminals & Splices category to complement your electrical installation needs.
