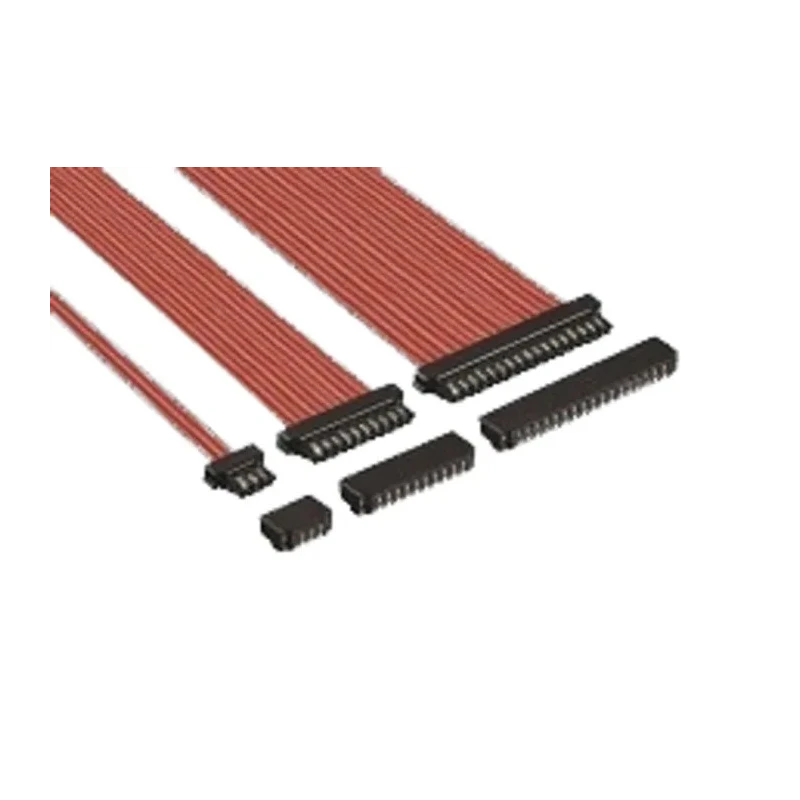

Hirose 52 Series Straight Cable FPC Connector, 4 Contact(s), 0.8 mm Pitch, 1 Row DF52-6P-0.8C
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 100, 100V ac |
| Brand | Hirose |
| Orientation | Straight |
| Current | 800, 1.2, 1.5mA |
| Model | DF52-6P-0.8C |
| Mount Type | Cable |
| Housing Material | Polyamide |
| Contact Material | Copper Alloy |
| Series | 52 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Interfaces | lance strength |
| Number of Rows | 1 |
| Pitch | 0.8mm |
| Contact Plating | Tin |
| Number of Contacts | 4 |
| Contact Gender | Male |
Key Features
- This connector features a straight cable orientation for easy cable routing.
- It has 4 contacts made of copper alloy with tin plating for reliable electrical conductivity.
- The housing is constructed from durable polyamide material offering robustness.
- Designed with crimp termination type and male contact gender for cable applications.
- Operates within a temperature range of -40°C to 85°C ensuring performance in harsh conditions.
- The connector supports cables with jacket outer diameter from 0.5 to 0.6 mm, AWG#32 to 28.
- It features a robust design tolerant to cable wiring, including a high contact lance strength.
- This is a halogen-free product meeting environmental standards.
Product Description
Hirose DF52-6P-0.8C 52 Series Straight Cable FPC Connector is a small and robust wire-to-board connector designed for high precision and reliable electrical connections. Featuring a 0.8 mm pitch, this connector has 4 copper alloy contacts with tin plating, arranged in a single row, suitable for compact electronic applications.
The housing is made of durable polyamide material that ensures mechanical strength and electrical insulation. The connector supports crimp termination with male contacts, providing secure cable attachment.
It operates effectively in a wide temperature range from -40°C to 85°C, making it suitable for use in industrial, automotive, and electronic manufacturing environments where thermal stability is required.
Designed to handle currents up to 2.5 Amps maximum with AWG#28 wire, this connector supports voltages up to 100 V AC. Its robust design tolerates cable wiring stress, and the high contact lance strength enhances durability. The box shape crimp contact prevents deformation, facilitating reliable connectivity.
The product supports cables with jacket outer diameters between 0.5 mm to 0.6 mm (AWG#32 to 28) and is halogen-free, aligning with environmental safety standards. Available in straight plug configurations with matching right-angle receptacles, it is well-suited for various PCB header applications in electronics assembly.
This FPC Connector is ideal for industrial automation, consumer electronics, communications equipment, and instrumentation. Compact dimensions with a height of 1.75 mm and depth of 4.1 mm offer space-saving integration on PCBs.
The connector is RoHS compliant and contributes to eco-friendly product design. It is engineered for reliable signal integrity and mechanical endurance in demanding environments. Suitable for applications requiring small pitch cable connectors such as portable devices and instrumentation.
Explore the full Hirose 52 Series range for compatible plugs and receptacles on EnvMart to optimize your electronic designs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this connector is 0.8 mm, making it suitable for compact electronic applications.
This model features 4 contacts, which are made of copper alloy with tin plating for reliable electrical conductivity.
The maximum operating temperature for the Hirose DF52-6P-0.8C connector is 85°C, allowing it to perform in demanding environments.
The minimum operating temperature is -40°C, ensuring functionality in extreme conditions.
This connector uses crimp termination, which provides a secure attachment for cables.
The connector supports voltages up to 100 V AC, making it suitable for various electronic applications.
The housing is constructed from polyamide, which offers mechanical strength and electrical insulation.
This connector can handle currents up to 2.5 Amps maximum when using AWG#28 wire.
It supports cables with a jacket outer diameter ranging from 0.5 mm to 0.6 mm, compatible with AWG#32 to 28.
The contact gender of this connector is male, designed for cable applications.
The compact dimensions include a height of 1.75 mm and a depth of 4.1 mm, facilitating space-saving integration on PCBs.
Yes, this connector is halogen-free, aligning with environmental safety standards.
