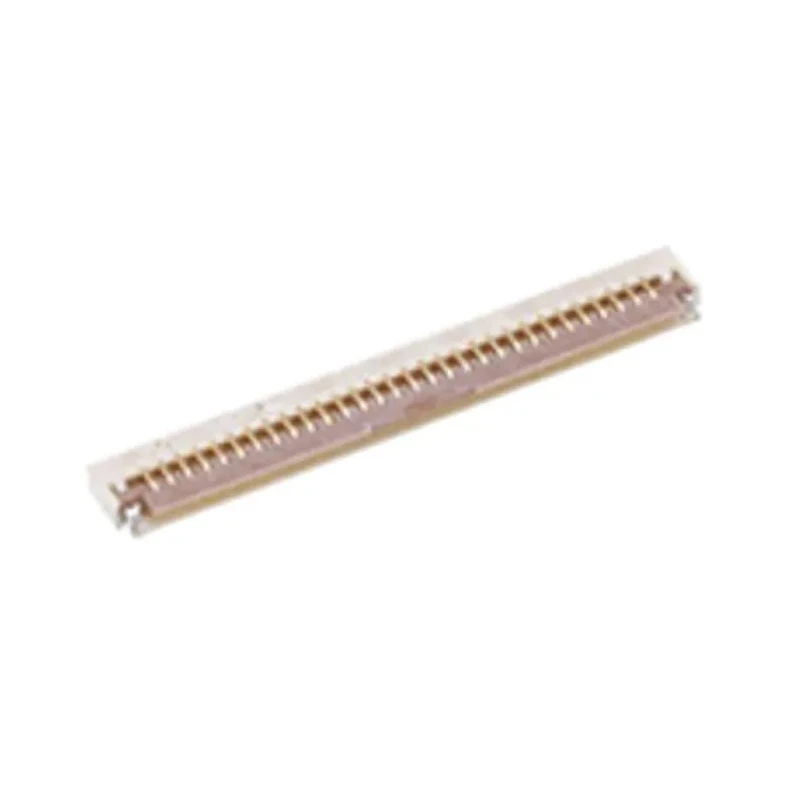

Hirose 19 Series 0.5 mm Pitch 12 Way Horizontal Female FPC Connector Surface Mount FH19SC-12S-0.5SH(99)

Hirose FH19SC-12S-0.5SH(99) is a 12 way horizontal female FPC connector with a fine 0.5 mm pitch and surface mount termination designed for premium electronic component connections. It offers high conductivity and reliable mechanical performance suitable for industrial, manufacturing, and consumer electronics applications.

The connector features phosphor bronze contacts plated with gold, providing excellent electrical contact and corrosion resistance. The contact current is rated for 500 mA at 50V AC, making it suitable for low power signal transmissions and data connections.

Utilizing a Flip-Lock Actuator System, this FPC connector ensures easy operation with low insertion force (ZIF), reducing stress on the flexible printed circuits and increasing connector lifespan. The compact low-profile design with a mounting height of 0.9 mm and horizontal contact orientation makes it ideal for space-constrained PCB layouts.

Its liquid crystal polymer housing material guarantees durability and reliable performance over a wide operating temperature range from -55°C up to 85°C, catering to demanding industrial environments. The connector supports 0.2 mm and 0.3 mm thickness FPCs, enhancing compatibility with various flexible cables.

Surface mount technology facilitates automatic placement on the PCB ensuring manufacturing efficiency. This FPC Connector is halogen-free, meeting environmental safety standards. Features 12 contacts suitable for compact electronic applications.

Constructed with phosphor bronze contacts plated with gold for enhanced conductivity. Supports a maximum current of 500mA and voltage of 50V AC. Designed with a proven Flip-Lock Actuator System for secure, easy operation.

Low-profile 0.9 mm height housing made from liquid crystal polymer for durability. Compatible with 0.2 mm and 0.3 mm thick flexible printed circuits (FPC/FFC). Surface mount mount type facilitates automated board placement.

Operating temperature range from -55°C to 85°C suits various environmental conditions. Horizontal orientation with bottom-positioned female contacts minimizes footprint on PCB. Insertion force is zero insertion force (ZIF) ensuring minimal wear and easy mating.

This connector is suited for electronics, industrial automation, telecommunications, and consumer electronics industries requiring highly reliable PCB connections. Consider exploring the extensive catalog of connectors available for your PCB design and manufacturing needs at EnvMart.
