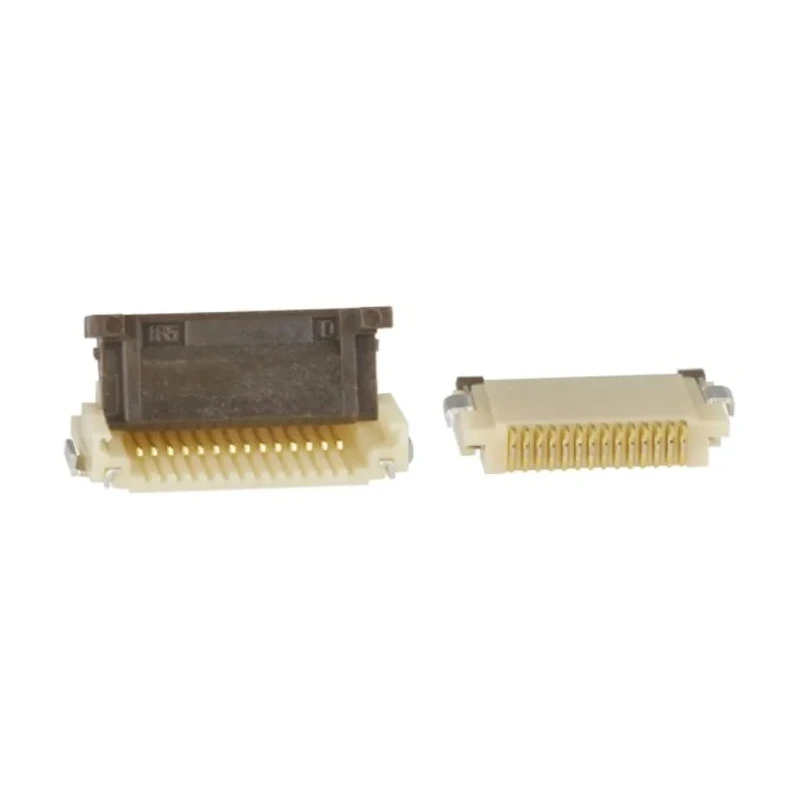

Hirose FH12 0.5 mm Pitch 14 Way Right Angle Female FPC Connector, Solder FH12
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 50V ac |
| Brand | Hirose |
| Orientation | Right Angle |
| Current | 500mA |
| Model | FH12 |
| Mount Type | Surface |
| Housing Material | Polyamide |
| Contact Material | Phosphor Bronze |
| Series | FH12 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 0.5mm |
| Contact Plating | Gold |
| Number of Contacts | 14 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | ZIF |
| Contact Position | Bottom |
Key Features
- Features a one-touch rotating zero insertion force (ZIF) actuator for easy mating.
- Contacts made of phosphor bronze with gold plating for enhanced conductivity and corrosion resistance.
- Designed with right angle orientation and bottom contact position to optimize PCB layout.
- Rated for 500mA current and 50V AC voltage, suitable for low-power electronic devices.
- Constructed with polyamide housing for durability and temperature resistance from -40°C to 85°C.
- Includes locking mechanism to ensure secure connection integrity.
- Supports high density mounting with compact 0.5 mm pitch and single row contacts.
- Ideal for applications in mobile phones, GPS units, notebook PCs, LCD TVs, digital cameras, and other handheld electronic devices.
Product Description
Hirose FH12 0.5 mm pitch 14 way right angle female FPC connector, model FH12, is a high-quality PCB connector designed for surface mounting with solder termination. This connector provides a secure and easy-to-operate connection interface with its one-touch rotating zero insertion force (ZIF) actuator, which produces a tactile click confirming the mating completion.
The phosphor bronze contacts feature gold plating for optimal electrical performance and resistance to corrosion. The connector orientation is right angle with bottom contacts suitable for compact PCB designs requiring dense component placement. The polyamide housing guarantees robust performance across a wide operational temperature range of -40°C to 85°C.
This 14 contact, single row connector supports a current rating of 500mA at 50V AC, making it ideal for various low-power electronic applications. The locking mechanism enhances connection reliability in environments subject to vibration or movement.
Applications of the Hirose FH12 series include mobile phones, GPS devices, notebook PCs, data terminals, LCD televisions, digital and video cameras, and other compact handheld devices, where space-saving and dependable connector solutions are critical.
With its high-density mounting capability and compact footprint, the FH12 connector is a trusted component for industrial, electronic manufacturing, research and development, and consumer electronics sectors.
Features a one-touch rotating zero insertion force actuator for effortless operation. Phosphor bronze contacts with gold plating ensure reliable conductivity. Right angle orientation with bottom contacts optimizes PCB space.
Durable polyamide housing withstands harsh temperature conditions. Suitable for a broad range of low-power electronic applications. Explore a wide selection of FPC Connectors from Hirose at EnvMart for your industrial and electronics manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Hirose FH12 connector is rated for a maximum voltage of 50V AC.
This model has a current rating of 500mA, making it suitable for low-power electronic devices.
The contacts in the Hirose FH12 connector have a pitch size of 0.5 mm.
The housing is made of polyamide, and the contacts are constructed from phosphor bronze with gold plating for enhanced conductivity.
The FH12 connector operates within a temperature range of -40°C to 85°C.
This connector features 14 contacts arranged in a single row.
The Hirose FH12 connector uses solder termination for secure mounting.
The connector is designed with a right angle orientation, optimizing PCB layout.
Yes, the FH12 connector includes a locking mechanism to ensure secure connection integrity.
This model is ideal for applications in mobile phones, GPS units, notebook PCs, LCD TVs, and digital cameras.
The FH12 connector features a one-touch rotating zero insertion force (ZIF) actuator for easy mating.
Yes, the Hirose FH12 connector supports high-density mounting with its compact 0.5 mm pitch design.
