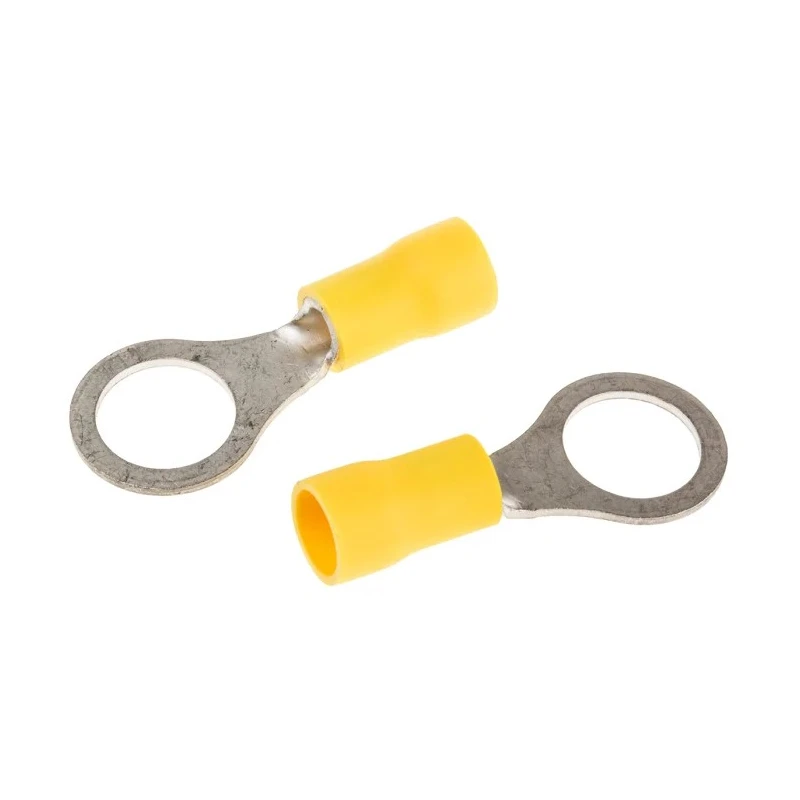

TE Connectivity PIDG Insulated Ring Terminal M8 Stud Size 12 AWG 10 AWG Wire Size Yellow 35111
Specifications
| Country of Origin | United States |
|---|---|
| Brand | TE Connectivity |
| Colour | Yellow |
| THICKNESS | 1.02mm |
| Model | 35111 |
| Insulation | Insulated |
| Overall Length | 33.58mm |
| Contact Material | Copper |
| Series | PIDG |
| Maximum Operating Temperature | 105°C |
| Insulation Material | Nylon |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 2.6mm² |
| Maximum Wire Size mm² | 6.6mm² |
| Minimum Wire Size AWG | 12AWG |
| Maximum Wire Size AWG | 10AWG |
| Outer Ring Diameter | 13.49mm |
| Inner Ring Diameter | 8.33mm |
| Stud Size | M8 |
Key Features
- Constructed with high conductivity copper body for excellent electrical performance.
- Features copper sleeve to enhance wire insulation support and prevent fraying.
- Precision serrations in wire barrel ensure maximum contact and tensile strength after crimping.
- Outer color-coded nylon insulation sleeve enables quick wire size identification.
- Funnelled wire entry design allows easy and fast wire insertion during assembly.
- Suitable for wire sizes ranging from 12 AWG to 10 AWG (2.6 to 6.6 mm²).
- Rated for maximum operating temperature of 105°C ensuring durability under heat stress.
- Compact dimensions with overall length of 33.58 mm and ring diameter designed for M8 studs.
Product Description
TE Connectivity 35111 PIDG Insulated Ring Terminal M8 Stud Size 12 AWG 10 AWG Wire Size Yellow is engineered for uniform reliability in demanding electrical circuit environments. The product features a precision-formed copper body and barrel providing excellent conductivity and mechanical strength.
The wire barrel incorporates serrations for enhanced contact and tensile strength after crimping, coupled with a copper sleeve surrounding the barrel to support wire insulation and prevent fraying. The outer yellow nylon sleeve is color-coded for fast wire size identification, facilitating efficient installation and maintenance.
With an overall length of 33.58 mm and specifically designed for M8 stud sizing, this Ring Terminal accommodates wire sizes from 12 AWG (2.6 mm²) up to 10 AWG (6.6 mm²). Its construction supports a maximum operating temperature of 105°C, ensuring performance in high temperature applications.
This PIDG (Pre-Insulated Diamond Grip) terminal is suitable for a wide range of industrial and commercial applications including instruments, control panels, power supplies, transportation equipment, lifting machinery, motors, aerospace, and appliances. Its robust build meets rigorous demands where reliable, uniform crimps and secure electrical contact are critical.
High conductivity copper body for superior electrical transmission. Copper sleeve enhances wire insulation support and reduces fraying risk. Serrated wire barrel provides excellent contact and tensile strength after crimping.
Yellow nylon insulation sleeve enables easy size identification for efficient installation. Funnelled wire entry allows quick and smooth wire insertion. Rated for maximum operating temperature of 105°C to withstand heat stresses.
Compatible with M8 stud size and wire sizes 12 AWG to 10 AWG (2.6 to 6.6 mm²). Reliable solution for harsh circuit environments in industrial and aerospace uses. Explore the extensive range of TE Connectivity electrical components at EnvMart for secure and durable wiring solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a maximum operating temperature of 105°C, making it suitable for applications that may experience heat stress.
It accommodates wire sizes ranging from 12 AWG (2.6 mm²) to 10 AWG (6.6 mm²).
The overall length of this unit is 33.58 mm.
The contact material of this terminal is copper, which provides excellent conductivity.
It features an insulated design with a nylon outer sleeve that is color-coded for easy wire size identification.
The inner ring diameter is 8.33 mm, and the outer ring diameter is 13.49 mm.
The wire barrel has precision serrations that ensure maximum contact and tensile strength after crimping, enhancing overall performance.
It is suitable for a wide range of industrial and commercial applications including instruments, control panels, and transportation equipment.
The terminal includes a copper sleeve that enhances wire insulation support and helps prevent fraying.
This terminal belongs to the PIDG (Pre-Insulated Diamond Grip) series.
The country of origin for this terminal is the United States.
The thickness of this terminal is 1.02 mm.
