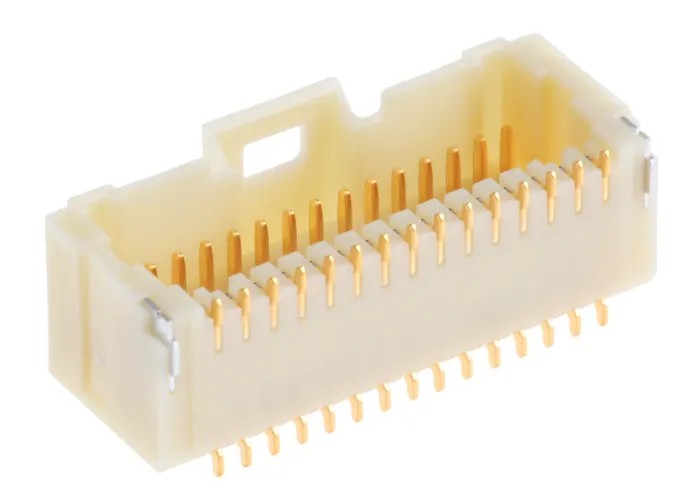

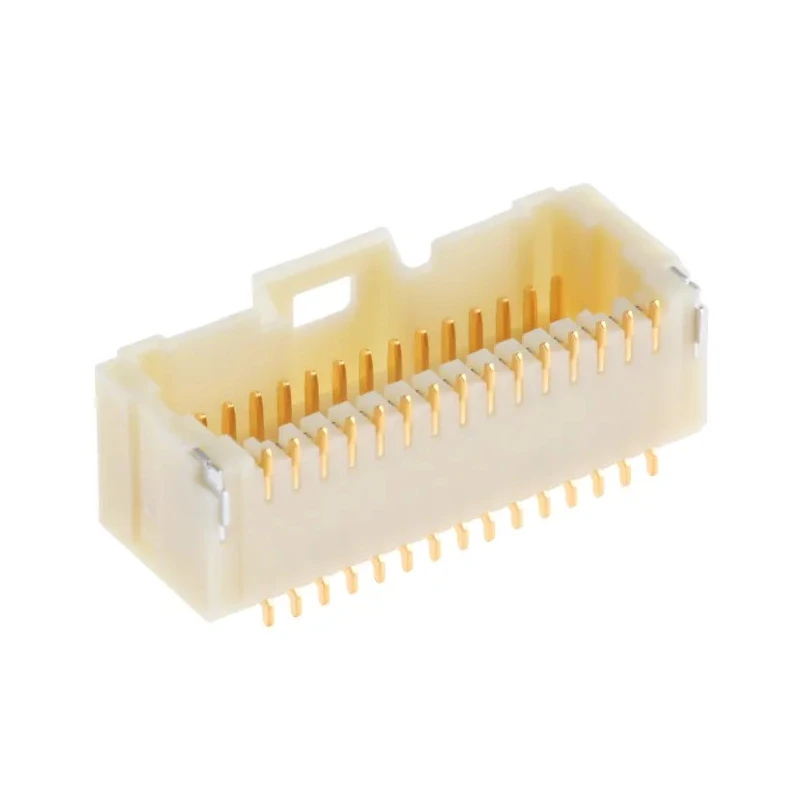

Molex Pico-Clasp™ Series Right Angle Surface PCB Header 30 Contacts 1 mm Pitch 2 Row Shrouded 501571-3007
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 50V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 1A |
| Mount Type | Surface |
| Housing Material | Nylon |
| Series | Pico-Clasp |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 1mm |
| Standards/Approvals | ELV, Low halogen, REACH, RoHS, UL |
| Contact Plating | Gold |
| Number of Contacts | 30 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Mating Pin Length | 1mm |
Key Features
- Features a dual row wire-to-board connector system with a 1.00 mm pitch.
- Constructed with nylon housing for durability and reliability.
- Gold contact plating ensures excellent conductivity and corrosion resistance.
- Rated for 1A current and 50V voltage operation.
- Shrouded connector design with right angle orientation for secure connections.
- Operating temperature range from -40°C to 105°C for versatile applications.
- Designed for surface mounting with solder termination type.
- Mating pin length is 1 mm ensuring stable contacts.
Product Description
Molex 501571-3007 Pico-Clasp™ Series Right Angle Surface PCB Header is a high-density, reliable wire-to-board connector featuring a 1 mm pitch and 30 contacts arranged in 2 rows with a shrouded housing.
Designed with a nylon housing and gold-plated male contacts, this connector provides excellent durability and conductivity for industrial, electronic, and manufacturing applications.
The right angle orientation supports compact PCB layouts and effective surface mounting with solder termination, suitable for a wide range of circuit board designs.
Rated for 1A current and 50V voltage, it operates reliably between -40°C to 105°C, meeting rigorous standards including ELV, Low halogen, REACH, RoHS, and UL to ensure environmental and safety compliance.
This dual row Pico-Clasp™ connector system is among the smallest available with a positive lock feature inside the headers for secure and stable connections in dense assemblies. Dual row wire-to-board connector system with 1.00 mm pitch.
Nylon housing material for robustness. Gold-plated male contacts for superior conductivity. Right angle surface mount for PCB assembly efficiency. Wide operating temperature range from -40°C to 105°C. Compliance with ELV, Low halogen, REACH, RoHS, and UL standards.
Positive lock feature for secure connections. Compact design suitable for high-density electronic applications. Termination by solder ensuring reliable electrical contact.
This product is ideal for advanced electronics manufacturing, industrial automation, telecommunications, and other sectors requiring reliable and compact PCB connections. Explore related PCB Headers and Connectors for comprehensive solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this PCB header is 1 mm.
This connector features 30 contacts arranged in a dual row configuration.
It is rated for a maximum current of 1A.
This model can operate at a voltage of up to 50V.
The operating temperature range is from -40°C to 105°C.
It uses solder termination for reliable electrical contact.
The housing is constructed from nylon, providing durability and reliability.
Yes, it complies with ELV, Low halogen, REACH, RoHS, and UL standards.
This model has a right angle orientation for effective surface mounting.
The shrouded design provides a positive lock feature for secure connections, enhancing stability in dense assemblies.
The mating pin length is 1 mm, ensuring stable contacts.
This product is manufactured in India.
