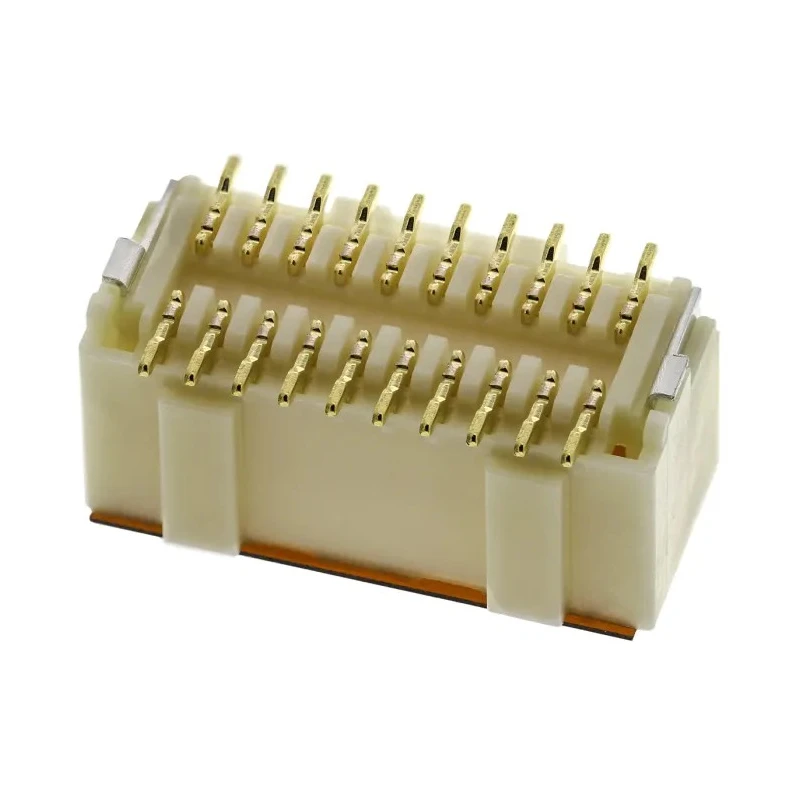

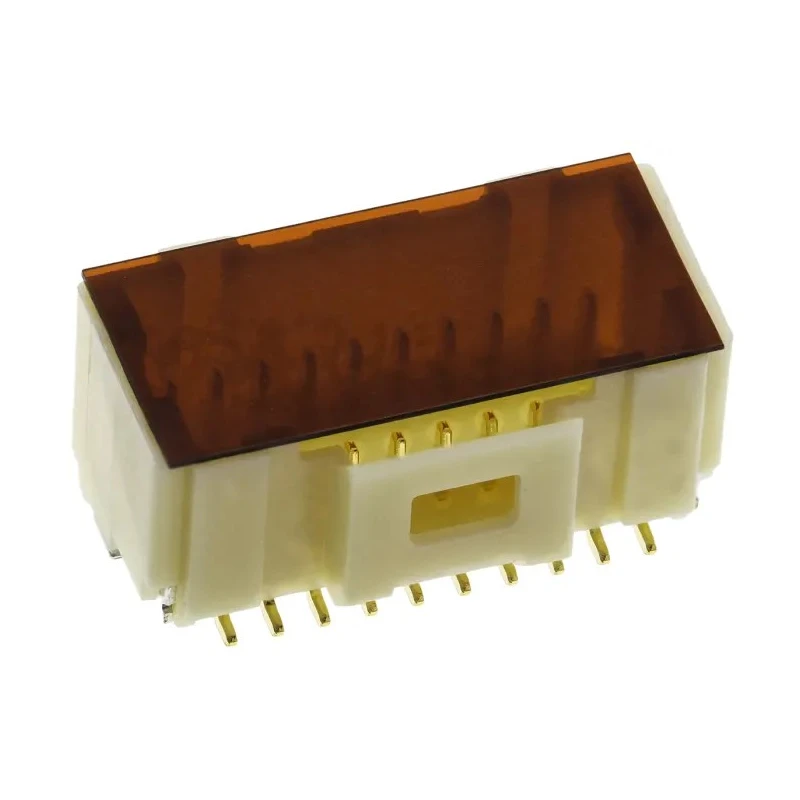

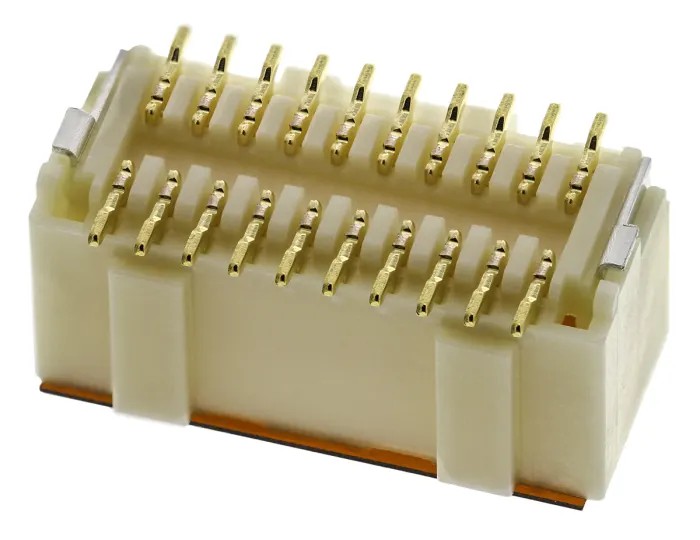

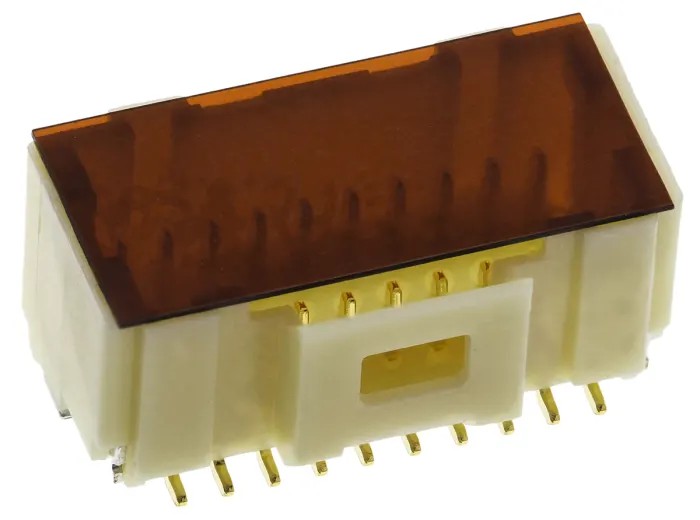

Molex Pico-Clasp Series Straight Surface PCB Header 20 Contacts 2 Row 1 mm Pitch 50V 1A 501190-2017
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 50V |
| Brand | Molex |
| Orientation | Straight |
| Current | 1A |
| Mount Type | Surface |
| Housing Material | Thermoplastic |
| Contact Material | Phosphor Bronze |
| Series | Pico-Clasp |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 1mm |
| Standards/Approvals | EU RoHS, Low-Halogen, REACH SVHC, UL E29179 |
| Contact Plating | Gold |
| Number of Contacts | 20 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Mating Pin Length | 1mm |
Key Features
- Constructed with thermoplastic housing and phosphor bronze contacts plated with gold for reliability.
- Designed as a wire-to-board connector system with a straight, shrouded, male contact configuration.
- Operates safely at a voltage of 50V and current rating of 1A.
- Rated for operating temperatures from -40°C to 105°C, suitable for varied environments.
- Termination is solder type compatible, with a mating pin length of 1 mm for secure connection.
- Complies with EU RoHS, Low-Halogen, REACH SVHC, and UL E29179 standards.
Product Description
The Molex 501190-2017 Pico-Clasp Series is a straight surface mount PCB header featuring 20 male contacts arranged in 2 rows with a precise 1 mm pitch. Engineered with a thermoplastic housing and gold plated phosphor bronze contacts, it ensures high durability and excellent conductivity, making it ideal for wire-to-board connector applications.
This connector supports an operating voltage of 50 V and current capacity of 1 A, suitable for low-power electronics. Its shrouded housing design enhances connector protection and polarization, preventing misalignment during mating.
Operating temperature range from -40°C to 105°C makes it reliable for use in diverse industrial, communications, and consumer electronics applications including flat panel displays, notebook PCs, and compact devices.
The termination method is solder, ensuring robust mechanical and electrical connection with printed circuit boards. The 1 mm mating pin length combined with the dual row layout supports dense PCB designs while retaining accessibility and serviceability.
Compliant with EU RoHS, Low-Halogen, REACH SVHC, and UL E29179 certifications, this header connector aligns with global environmental and safety standards. Constructed with thermoplastic housing and phosphor bronze contacts plated with gold for reliability.
Designed as a wire-to-board connector system with a straight, shrouded, male contact configuration. Operates safely at a voltage of 50V and current rating of 1A. Rated for operating temperatures from -40°C to 105°C, suitable for varied environments.
Termination is solder type compatible, with a mating pin length of 1 mm for secure connection. Complies with EU RoHS, Low-Halogen, REACH SVHC, and UL E29179 standards. This PCB header is ideal for electronic manufacturing, repair, and prototype applications where space saving and reliable connection are critical.
Explore Molex connectors and related components on EnvMart for comprehensive electronic hardware solutions.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates safely at a voltage of 50V and has a current rating of 1A.
It is rated for operating temperatures from -40°C to 105°C, making it suitable for various environments.
The connector features 20 male contacts arranged in 2 rows.
The contact pitch for this PCB header is 1 mm.
It is constructed with a thermoplastic housing and phosphor bronze contacts plated with gold.
The termination method is solder type, ensuring a robust connection with printed circuit boards.
Yes, it complies with EU RoHS, Low-Halogen, REACH SVHC, and UL E29179 standards.
The Molex Pico-Clasp Series header has a straight orientation.
The shrouded design enhances connector protection and polarization, preventing misalignment during mating.
It is ideal for wire-to-board connector applications in low-power electronics, including flat panel displays and notebook PCs.
The mating pin length is 1 mm, which supports dense PCB designs while maintaining accessibility.
The country of origin for this PCB header is India.
