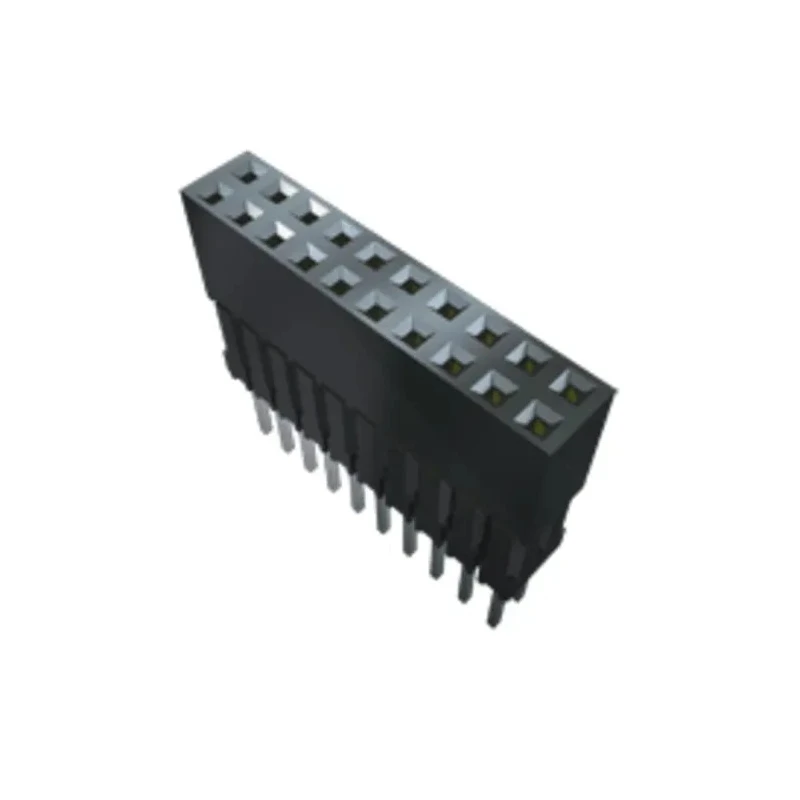

Samtec ESQ Series Straight Through Hole PCB Socket 20-Contact 2 Row 2.54 mm Pitch 5.2A 550V ESQ-110-14-G-D

Free Delivery in India | Lowest Global Shipping Charges

Samtec ESQ Series Straight Through Hole PCB Socket 20-Contact 2 Row 2.54 mm Pitch 5.2A 550V ESQ-110-14-G-D

Name: Samtec ESQ Series Straight Through Hole PCB Socket 20-Contact 2 Row 2.54 mm Pitch 5.2A 550V ESQ-110-14-G-D
Brand: Samtec
SKU: 147998
Price: 6.46 USD
Availability: InStock



Category PCB Socket Brand Samtec Condition New

Specifications

Country of Origin	United States
Voltage	550V
Brand	Samtec
Orientation	Straight
Current	5.2A
Model	ESQ-110-14-G-D
Mount Type	Through Hole
Special Features	Standard and low insertion force contacts with .025" (0.635 mm) square tails for PC/104™ applications
Housing Material	Black Glass Filled Polyester
Contact Material	Bronze
Series	ESQ
Termination	Through-hole
Termination Type	Solder
Maximum Operating Temperature	125°C
Sub Type	Board-to-Board
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Gold
Number of Contacts	20
Connector System	Board-to-Board
Contact System	Tiger Buy™

Key Features

Rated current of 5.2A suitable for moderate power applications.
Black glass filled polyester housing for robust mechanical and thermal stability.
Gold plated bronze contacts provide excellent conductivity and corrosion resistance.
Through-hole mounting with solder termination ensures durable connections.
Operating temperature range from -55°C to 125°C for diverse environmental conditions.
Standard and low insertion force contact options with .025" (0.635 mm) square tails for PC/104™ compatibility.
Vertical straight orientation supports efficient PCB layouts.

Product Description

Samtec ESQ-110-14-G-D PCB Socket is a high-quality straight through hole type connector, optimized for board-to-board applications requiring reliable electrical and mechanical performance at 5.2A current and 550V voltage ratings. Manufactured with a sturdy black glass filled polyester housing and bronze contacts plated in gold, it offers excellent durability and conductivity.

This socket features 20 contacts arranged in 2 rows with a 2.54 mm pitch, providing compatibility with standard PCB layouts. The termination employs a through-hole solder mount, ensuring secure and stable attachment to printed circuit boards.

Designed for industrial and electronic component manufacturing environments, it supports operating temperatures from -55°C to 125°C, making it suitable for use in challenging thermal conditions. The unique Tiger Buy™ contact system facilitates lower insertion force options, ideal for PC/104™ applications with vertical orientation.

Special characteristics include square tails of .025" (0.635 mm) dimension, enhancing ease of assembly and mechanical retention. This connector is made in the United States and adheres to quality and material standards appropriate for electronics industry use.

Rated current of 5.2A for moderate electrical loads. 550V voltage rating for insulation and safety. Black glass filled polyester housing providing strength and heat resistance. Gold plated bronze contacts enhancing signal integrity and corrosion resistance.

Through-hole solder termination for mechanical stability. Operating temperature range from -55°C to 125°C enables wide applicability. Two row, 20-contact layout with 2.54 mm pitch supports standard PCB configurations. Tiger Buy™ contact system with low insertion force options for PC/104™.

This product is well suited for use in industrial electronics manufacturing, assembly, telecommunications, computer hardware, and other precision PCB connector applications. Explore other PCB Sockets and connectors in the Electronics Components category at EnvMart for comprehensive solutions.
