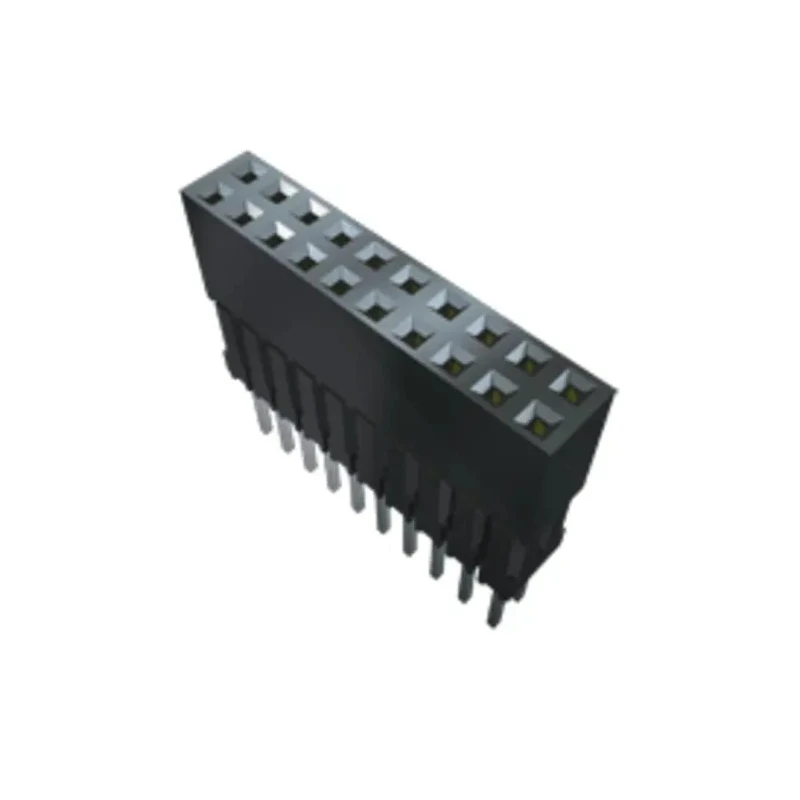

Samtec ESQ Series Straight Through Hole PCB Socket 8-Contact 2 Row 2.54 mm Pitch Solder ESQ-104-12-G-D
Specifications
| Country of Origin | United States |
|---|---|
| Voltage | 550V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 5.2A |
| Model | ESQ-104-12-G-D |
| Mount Type | Through Hole |
| Special Features | Standard and low insertion force contacts with .025" (0.635 mm) square tails for PC/104™ applications |
| Housing Material | Black Glass Filled Polyester |
| Contact Material | Bronze |
| Series | ESQ |
| Termination | Through-hole |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 8 |
| Connector System | Board-to-Board |
| Contact System | Tiger Buy™ |
Key Features
- Designed for board-to-board connection applications.
- Features black glass filled polyester housing for durability.
- Supports current up to 5.2 A and voltage rating of 550 V.
- Contact material is bronze with gold plating for reliable conductivity.
- Operates from -55°C up to 125°C, suitable for demanding environments.
- Vertical orientation with through-hole mounting ensures solid connection.
- Includes standard and low insertion force contacts with 0.025 in (0.635 mm) square tails for PC/104 applications.
- Contact system uses Tiger Buy™ design for enhanced performance.
Product Description
Samtec ESQ-104-12-G-D is a high-quality straight through hole PCB socket designed for board-to-board applications requiring reliable electrical connections. This component features 8 contacts arranged in 2 rows with a precise 2.54 mm pitch, facilitating robust solder termination for permanent mounting.
The housing is made from black glass filled polyester, providing mechanical strength and heat resistance. The contact material is bronze with a gold plating finish, ensuring low contact resistance and excellent conductivity. Rated for an electrical current of 5.2 A and operating voltage of 550 V, this socket supports demanding industrial, commercial, and electronic systems.
Operating temperatures range from -55°C to 125°C, making it suitable for various temperature environments commonly encountered in industrial and laboratory equipment. The vertical orientation with through-hole mounting provides secure mechanical and electrical connection on printed circuit boards.
This ESQ series socket includes special features like standard and low insertion force contacts with 0.025 in (0.635 mm) square tails, optimized for PC/104 expansion bus standards, enabling use in embedded computing applications.
It employs the Tiger Buy™ contact system which is known for reliable contact performance and durability. The product is manufactured in the United States, ensuring quality compliance and adherence to industry standards.
Designed for board-to-board connection applications. Housing constructed of durable black glass filled polyester. Gold plated bronze contacts for superior conductivity. Electrical ratings: 5.2A current, 550V voltage. Wide operating temperature range: -55°C to 125°C.
Through-hole mount and vertical orientation for stability. Special PC/104 compliant insertion force contacts. Tiger Buy™ contact system for enhanced reliability.
This PCB socket suits various industrial, electronic, and manufacturing applications requiring consistent and durable electrical connections on PCBs. Explore the full range of PCB Sockets and connectors in EnvMart for your project needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this model is 5.2 A.
This PCB socket has a voltage rating of 550 V.
The housing is made from black glass filled polyester, while the contacts are bronze with gold plating.
It operates within a temperature range of -55°C to 125°C.
This socket features a through-hole mounting type, ensuring a secure connection on printed circuit boards.
The pitch size for this model is 2.54 mm.
This PCB socket has a total of 8 contacts arranged in 2 rows.
It includes standard and low insertion force contacts with 0.025 in (0.635 mm) square tails, optimized for PC/104 applications.
The orientation of this socket is vertical.
It employs the Tiger Buy™ contact system for enhanced performance and reliability.
This product is manufactured in the United States.
The termination type for this model is solder, suitable for permanent mounting on PCBs.
