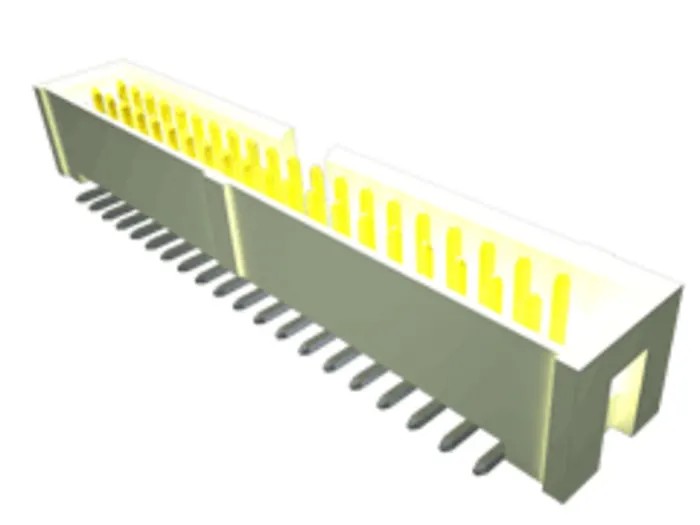

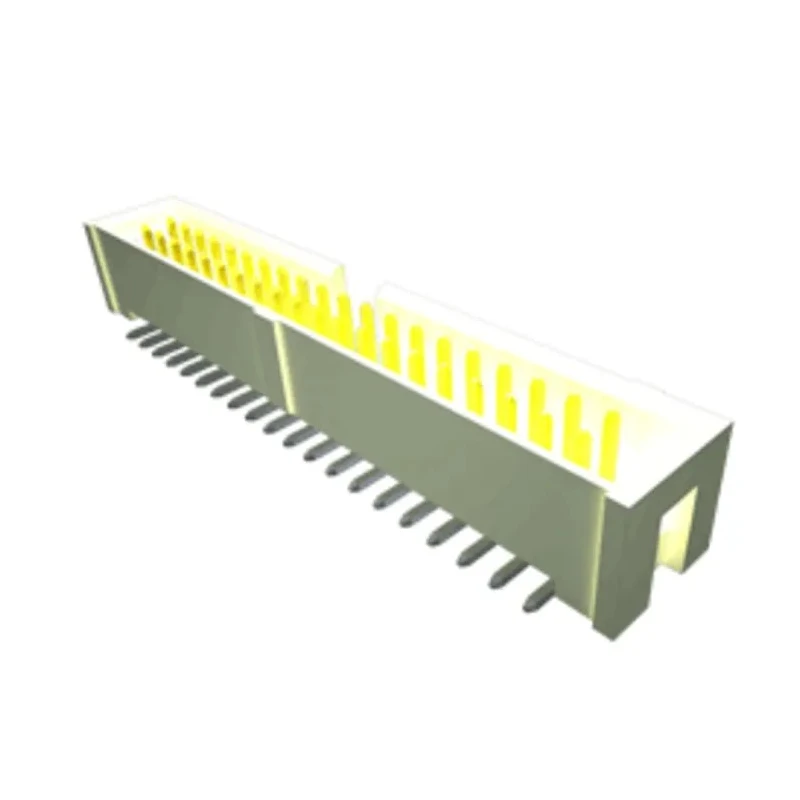

Samtec HTST Series Straight Through Hole PCB Header 20 Contacts 2.54 mm Pitch 2 Row Shrouded HTST-110-01-L-D
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 1kV |
| Brand | Samtec |
| Orientation | Straight |
| Current | 3.4A |
| Model | HTST-110-01-L-D |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | HTST |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 20 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Constructed with liquid crystal polymer housing for high durability.
- Wire-to-board connector system suitable for reliable electrical connections.
- Phosphor bronze contacts plated with gold ensure optimal conductivity and corrosion resistance.
- Rated for 3.4 A current with a voltage withstand of 1 kV.
- Operates within a temperature range of -55°C to 125°C for versatile applications.
- Male contact gender with solder termination type for secure PCB insertion.
- Straight orientation provides ease of insertion in PCB designs.
- Shrouded design offers polarization notch to prevent mismating.
Product Description
Samtec HTST-110-01-L-D is a high-quality PCB Header from the HTST Series, designed for reliable through-hole mounting applications with 20 contacts set in a 2-row arrangement with a 2.54 mm pitch.
This connector features a housing made of liquid crystal polymer that ensures high temperature resistance and mechanical stability. The phosphor bronze contact material with gold plating enhances electrical conductivity and protects against corrosion, delivering consistent performance.
Its wire-to-board connector system is suitable for industrial electronic designs that require durable and reliable connections. The shrouded design includes a polarization notch to prevent incorrect mating, ensuring safety in assembly.
The component supports a rated current of 3.4 A and can operate safely within a temperature range from -55°C up to 125°C, making it ideal for diverse electronic applications under varied environmental conditions.
The termination type is solder, tailored for straightforward PCB insertion with male contact gender. Its straight orientation suits a variety of board layouts and design specifications in electronic manufacturing.
Constructed from liquid crystal polymer housing for enhanced durability. Gold-plated phosphor bronze contacts provide excellent conductivity. Supports 3.4 A current rating and 1 kV voltage withstand capability. Temperature range from -55°C to 125°C accommodates industrial environments.
Wire-to-board connector system with through-hole mount type. Shrouded, straight orientation with polarization notch for safety. Male contact gender with solder termination for reliable PCB connection. Suitable for various electronics, including industrial and commercial PCB assemblies.
This Samtec PCB Header is ideal for manufacturers and engineers designing electronic components requiring robust, high-performance connectors. Explore similar products in our PCB Headers category at EnvMart for complementary components and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 3.4 A, making it suitable for various electronic applications.
The connector is rated for a voltage withstand of 1 kV, ensuring reliable performance in high-voltage applications.
It operates within a temperature range of -55°C to 125°C, accommodating diverse environmental conditions.
The housing is made of liquid crystal polymer, while the contacts are phosphor bronze plated with gold for optimal conductivity and corrosion resistance.
The HTST-110-01-L-D features 20 contacts arranged in a 2-row configuration with a 2.54 mm pitch.
It uses a solder termination type, which is designed for secure PCB insertion.
The connector has a straight orientation, facilitating ease of insertion in PCB designs.
This model is shrouded, featuring a polarization notch to prevent mismating during assembly.
It utilizes a wire-to-board connector system, suitable for reliable electrical connections in industrial applications.
The contacts are male, designed for secure connections in PCB applications.
The country of origin for this product is India.
The pitch size of the contacts is 2.54 mm, which is standard for many PCB applications.
