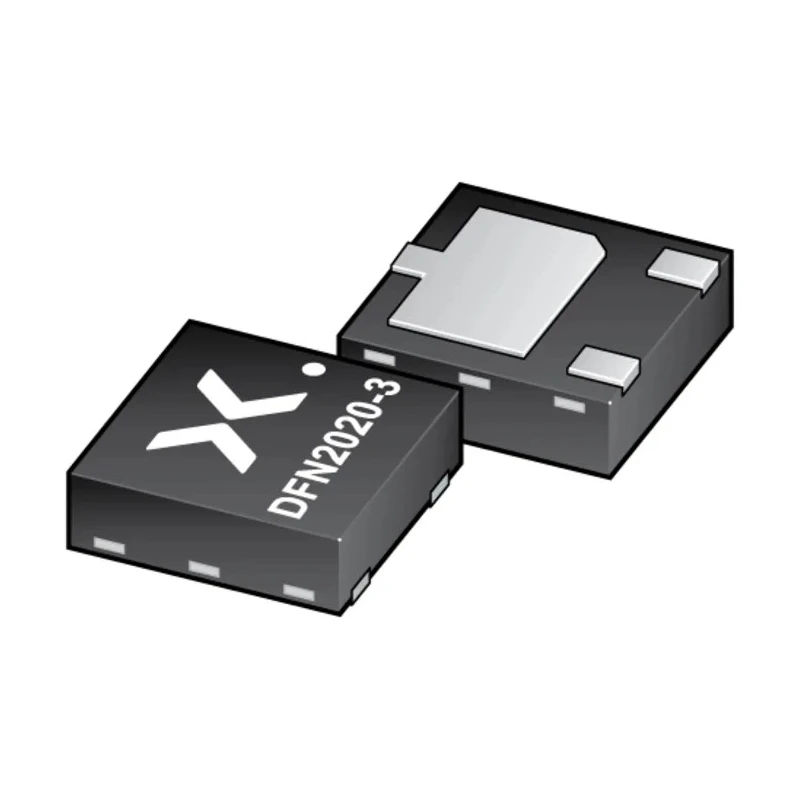

Nexperia Medium Power NPN Transistor 1 A 80 V 3-Pin SOT-1061 Surface Mount BC56-16PA,115

Name: Nexperia Medium Power NPN Transistor 1 A 80 V 3-Pin SOT-1061 Surface Mount BC56-16PA,115
Brand: Nexperia
SKU: 147692
Price: 0.15 USD
Availability: InStock



Category Bipolar Transistors Brand Nexperia Condition New

Specifications

Country of Origin	India
Brand	Nexperia
Height	0.65mm
Length	2.1mm
Model	BC56-16PA,115
Width	2.1mm
Mount Type	Surface
Series	BC56
Maximum Operating Temperature	150°C
Package Type	SOT-1061
Minimum Operating Temperature	-55°C
Standards/Approvals	RoHS
Pin Count	3
Maximum Collector Emitter Voltage Vceo	80V
Minimum DC Current Gain hFE	63
Transistor Polarity	NPN
Maximum Emitter Base Voltage VEBO	5V
Maximum Collector Base Voltage VCBO	100V
Automotive Standard	AEC-Q101
Maximum Power Dissipation Pd	1.65W
Maximum DC Collector Current Idc	1A
Transistor Configuration	Single
Maximum Transition Frequency ft	180MHz
onsemi BCP56-16T1G Transistor, 1 A NPN, 80 V, 4-Pin SOT-223Brand	onsemi

Key Features

This transistor is designed for robust medium power applications.
It supports a maximum power dissipation of 1.65 W for efficient heat management.
The device operates over a wide temperature range from -55°C to 150°C ensuring reliability.
It meets automotive standards with AEC-Q101 qualification.
The compact leadless SOT-1061 package reduces board space and facilitates surface mounting.
Features a high transition frequency of 180 MHz suitable for high-speed switching applications.
The transistor has three current gain selections and an exposed heatsink for improved thermal conductivity.

Product Description

Nexperia BC56-16PA,115 is a medium power NPN bipolar junction transistor offering a maximum collector current of 1 A and collector-emitter voltage of 80 V in a compact 3-pin SOT-1061 surface mount package. This transistor is engineered for use in automotive, industrial, and consumer electronics applications requiring reliable medium power switching and amplification.

Designed with an exposed heatsink, it ensures efficient thermal performance with a maximum power dissipation of 1.65 W. Its wide operating temperature range from -55°C to 150°C supports harsh and demanding environments. The transistor provides three current gain options, allowing flexibility in circuit design and improved linearity.

Qualified to automotive standard AEC-Q101, it assures high reliability for automotive and industrial use. The device is suitable for voltage regulators, low-side switches, power management, amplifiers, and MOSFET driver stages.

Featuring a leadless very small SMD plastic package (SOT-1061), the transistor saves PCB space and simplifies automated assembly. The maximum transition frequency of 180 MHz supports high-speed switching applications.

This transistor offers robust and efficient medium power solutions for applications such as battery-driven devices, power management circuits, and driver amplifiers in industrial and automotive electronics.

This transistor is designed for robust medium power applications. It supports a maximum power dissipation of 1.65 W for efficient heat management. The device operates over a wide temperature range from -55°C to 150°C ensuring reliability.

It meets automotive standards with AEC-Q101 qualification. The compact leadless SOT-1061 package reduces board space and facilitates surface mounting. Features a high transition frequency of 180 MHz suitable for high-speed switching applications.

The transistor has three current gain selections and an exposed heatsink for improved thermal conductivity. Explore more high-quality Bipolar Transistors and medium power transistor solutions on EnvMart for your industrial, automotive, and electronic design needs.
