| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 0.5mm |
| Length | 1.02mm |
| Model | RB520CS3002LYL |
| Width | 0.62mm |
| Mount Type | Surface |
| Series | RB520CS3002L |
| Maximum Operating Temperature | 150°C |
| Package Type | DSN-1006 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 200mA |
| Peak Reverse Repetitive Voltage Vrrm | 30V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 0.5μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 3A |
| Maximum Forward Voltage Vf | 450mV |
| Average forward current | IF(AV) ≤ 200 mA |
| Reverse voltage | VR ≤ 30 V |
| Low forward voltage | VF ≤ 450 mV |
| Low reverse current | IR ≤ 0.5 μA |

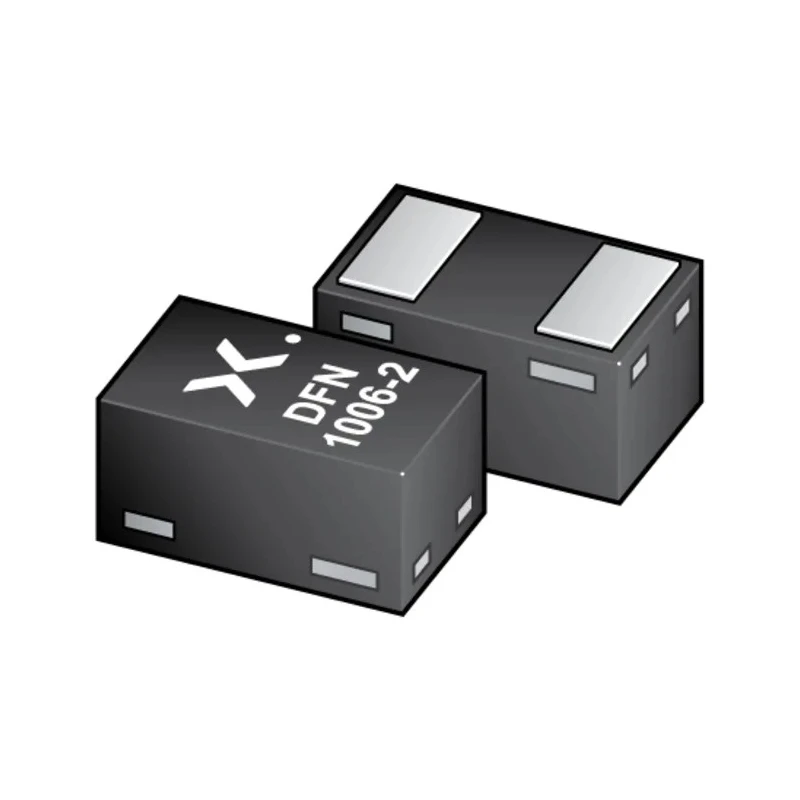

Nexperia RB520CS3002LYL is a 30 V 200 mA Schottky diode designed for surface mounting with a compact DSN-1006 package. This diode offers low forward voltage and leakage current, making it ideal for efficient power rectification in industrial and automotive electronics.
The device supports a maximum continuous forward current of 200 mA and a peak reverse repetitive voltage of 30 V, suitable for low voltage applications. Its low forward voltage drop of up to 450 mV minimizes power dissipation and improves overall system efficiency.
Encapsulated in the leadless ultra-small DSN-1006 (SOD882) plastic package, the diode enables space-saving PCB designs in compact electronic assemblies. It features an integrated guard ring for stress protection, enhancing device reliability especially in automotive environments. The diode has a peak reverse current limited to 0.5 μA, ensuring minimal leakage and stable operation.
The diode meets the AEC-Q101 automotive grade standard, guaranteeing performance and quality for automotive and industrial applications. The wide operating temperature range from -55°C to 150°C supports use in harsh and variable conditions.
Typical applications include high efficiency DC-to-DC converters, switch mode power supplies, reverse polarity protection circuits, and other low power consumption designs. Its peak non-repetitive forward surge current of 3 A provides robustness against transient overloads.
Maximum continuous forward current: 200 mA. Peak reverse repetitive voltage: 30 V. Low forward voltage drop: ≤ 450 mV. Peak reverse current: ≤ 0.5 μA. Automotive qualified per AEC-Q101 standard. Ultra-small leadless DSN-1006 package.
Operating temperature range: -55°C to 150°C.
This Nexperia Schottky diode combines small size, high efficiency, and automotive reliability, making it suitable for numerous electronic circuits in industrial, automotive, and commercial sectors.
