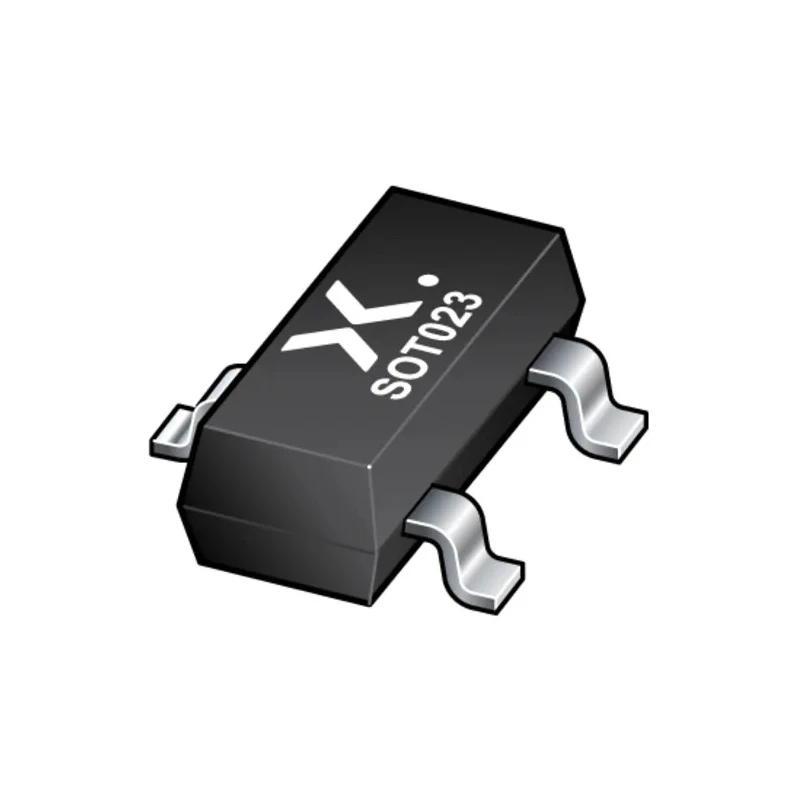

Nexperia NPN Resistor-Equipped Transistor 100 mA 50 V 3-Pin SOT Surface Mount PDTC144WT,215

Nexperia PDTC144WT,215 resistor-equipped transistor is a compact, surface mount NPN transistor integrated with built-in bias resistors to optimize circuit design and save PCB space. It is packaged in a 3-pin SOT component suitable for industrial and automotive electronics where reliability and efficiency are critical.

This component supports a maximum DC collector current of 100 mA and can withstand a maximum collector-emitter voltage of 50 V, making it well-suited for low to medium power switching applications in electronic devices. Its integrated resistors reduce the need for extra bias components, lowering assembly costs and component count.

The device conforms to AEC-Q101 automotive standards, ensuring it meets stringent quality and reliability criteria for automotive electronics and other demanding industrial applications. With an operating temperature range from -65°C to 150°C, it is suitable for harsh environments and extended temperature conditions.

Its small form factor of approximately 2.9 mm length, 1.3 mm width, and 1 mm height makes it ideal for compact PCB designs where space is at a premium. The transistor configuration is single, with NPN polarity and a pin count of three, mounted via surface mount technology (SMT).

Maximum DC collector current of 100 mA for low power switching. Maximum collector-emitter voltage of 50 V for medium voltage tolerance. Built-in bias resistors reduce component count and assembly costs. AEC-Q101 automotive qualification for high reliability.

Compact 3-pin SOT surface mount package (2.9 mm x 1.3 mm x 1 mm). Operating temperature range from -65°C to 150°C. Single NPN transistor configuration suitable for various electronic circuits. Power dissipation up to 250 mW.

Resistance ratio tolerance of ±10% for precision.

This resistor-equipped transistor is well-suited for industrial, automotive, and electronic manufacturing applications, providing an efficient and compact solution for embedded transistor and resistor integration in discrete semiconductor circuits. Explore more semiconductor components from Nexperia and enhance your designs with high-quality Bipolar Transistors and resistor-integrated devices available at EnvMart.
