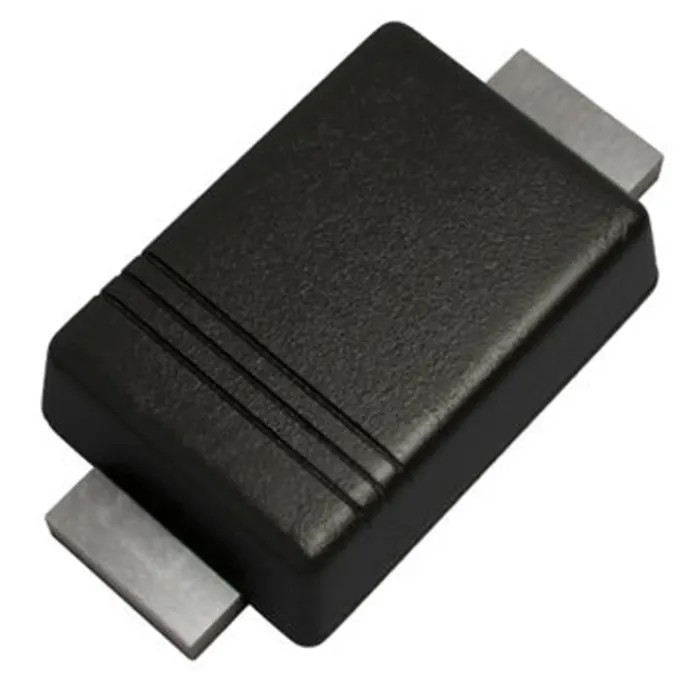

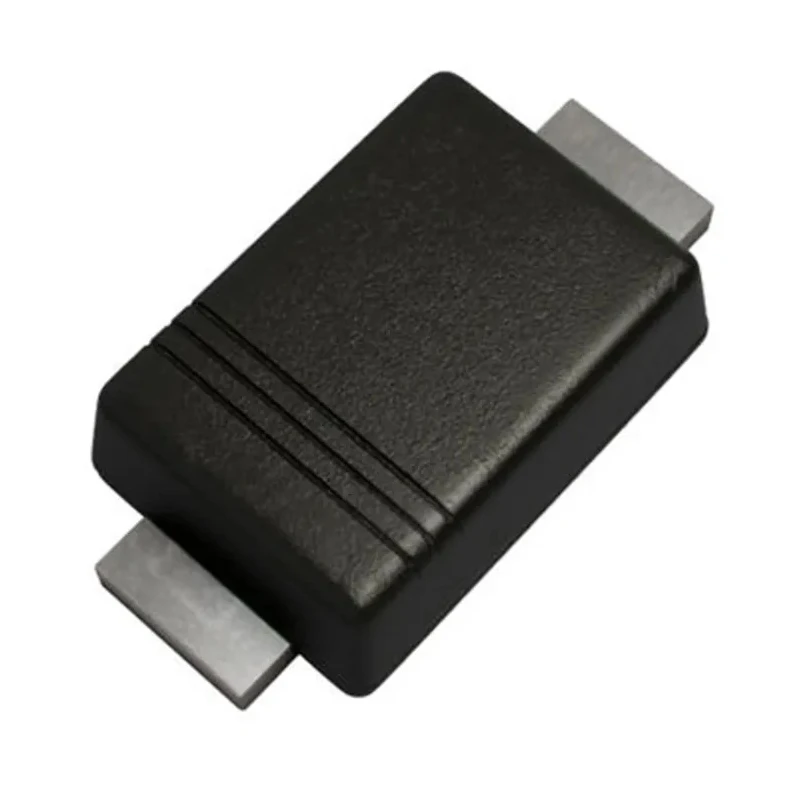

ROHM Schottky Diode 150 V 500 mA Surface Mount 2-Pin SOD-323HE RB558VAM150TR
Specifications
| Country of Origin | India |
|---|---|
| Brand | ROHM |
| Height | 0.8mm |
| Length | 2.1mm |
| Model | RB558VAM150TR |
| Width | 1.5mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | SOD-323HE |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 500mA |
| Peak Reverse Repetitive Voltage Vrrm | 150V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 0.5μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 3A |
| Maximum Forward Voltage Vf | 0.95V |
Key Features
- High reliability diode suitable for surface mount technology.
- Maximum continuous forward current of 500 mA ensures efficient conduction.
- Peak reverse repetitive voltage rating of 150 V protects against voltage spikes.
- Low forward voltage drop of 0.95 V minimizes power loss during operation.
- Compact dimensions of 2.1 mm length, 1.5 mm width, and 0.8 mm height optimize PCB space usage.
- Supports maximum operating temperature up to 150°C for tough environments.
- Low peak reverse current of 0.5 μA maintains low leakage current levels.
- Peak non-repetitive forward surge current rating of 3 A for transient load capability.
Product Description
ROHM RB558VAM150TR is a high-performance Schottky diode designed for surface mount applications. It delivers a maximum continuous forward current of 500 mA and is capable of withstanding peak reverse repetitive voltages up to 150 V, providing robust protection in electronic circuits.
Featuring a single diode configuration in a compact SOD-323HE package, with dimensions of 2.1 mm length, 1.5 mm width, and 0.8 mm height, this component is optimized for space-saving designs. It supports operation at temperatures up to 150°C, ensuring reliability in demanding industrial, automotive, and consumer electronic environments.
The diode exhibits a low forward voltage drop of 0.95 V, which reduces energy loss and thermal dissipation, enhancing efficiency. Its peak non-repetitive surge current rating of 3 A enables it to handle transient load conditions effectively.
The diode's low peak reverse current (0.5 μA) indicates excellent leakage control, benefiting power-sensitive circuits. This ROHM diode is RoHS compliant, reflecting adherence to environmental regulations.
Common industrial use cases include power supply rectification, polarity protection, voltage clamping, and high-frequency switching circuits found in consumer electronics, automotive electronics, and telecommunications equipment.
High reliability surface mount Schottky diode with robust electrical ratings. Compact SOD-323HE package helps minimize PCB real estate. Handles continuous forward current of 500 mA and surge currents up to 3 A. Operating temperature up to 150°C ensures durability in harsh environments.
RoHS compliant component supporting sustainable manufacturing. Explore a comprehensive range of semiconductors and diodes on EnvMart for your electronic design and manufacturing needs.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this model is 500 mA.
This diode has a peak reverse repetitive voltage rating of 150 V.
The dimensions of the SOD-323HE package are 2.1 mm in length, 1.5 mm in width, and 0.8 mm in height.
The maximum forward voltage drop is 0.95 V, which minimizes power loss during operation.
It has a peak non-repetitive forward surge current rating of 3 A, allowing it to handle transient load conditions.
The maximum operating temperature for this model is 150°C, making it suitable for tough environments.
The peak reverse current is 0.5 μA, indicating low leakage current levels.
Yes, this diode is RoHS compliant, adhering to environmental regulations.
This diode supports surface mounting, which is ideal for compact PCB designs.
This model is commonly used in power supply rectification, polarity protection, voltage clamping, and high-frequency switching circuits.
The diode features a single diode configuration, optimized for surface mount applications.
The country of origin for this diode is India.
