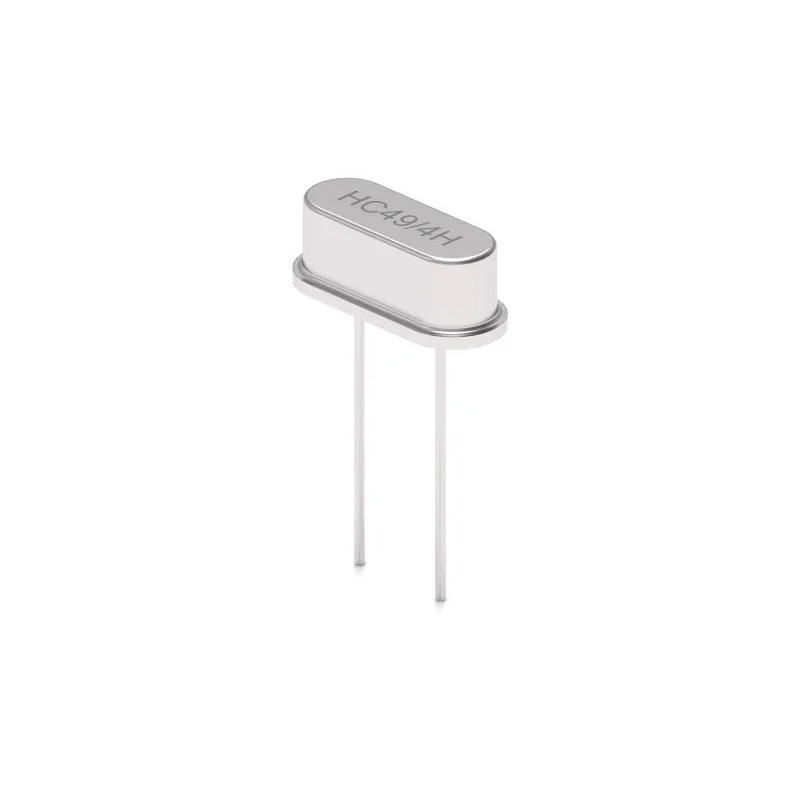

IQD 20 MHz Crystal Unit ±30 ppm HC-49 2-Pin Through Hole Load Capacitance 12pF LxWxH 11.05x4.7x4.1 mm LFXTAL003185B

IQD LFXTAL003185B 20 MHz Crystal Unit in HC-49 2-pin through-hole package offers frequency stability and precision essential for electronic timing applications. This crystal unit operates at 20 MHz with a frequency tolerance of ±30 ppm, ensuring reliable oscillation performance.

The device features a load capacitance of 12 pF and is designed with resistance welded and hermetically sealed glass to metal seals, providing robustness against environmental stress. Its compact dimensions of 11.05 mm length, 4.7 mm width, and 4.1 mm height make it suitable for space-constrained circuits.

Operating over a temperature range from -20°C to 70°C with series resistance of 40 Ω, it ensures stable function in industrial, communication, and consumer electronics. The unit is fully RoHS compliant, ensuring environmental and health safety standards.

This crystal unit operates at a standard frequency of 20 MHz. The HC-49 package type features a 2-pin through-hole mounting style. Load capacitance is specified at 12 pF, supporting stable oscillation. Dimensions are compact at 11.05 mm length, 4.7 mm width, and 4.1 mm height.

It provides frequency stability within ±50 ppm and series resistance of 40 Ω. Operating temperature range is from -20°C to 70°C, suitable for varied environments. The unit is RoHS compliant with hermetically sealed glass to metal seals for durability.

This crystal unit is commonly used in electronic circuits for frequency generation, timing devices, and communication systems where stable oscillation is critical. Its design suits industrial, laboratory, manufacturing, and consumer electronics equipment applications.
