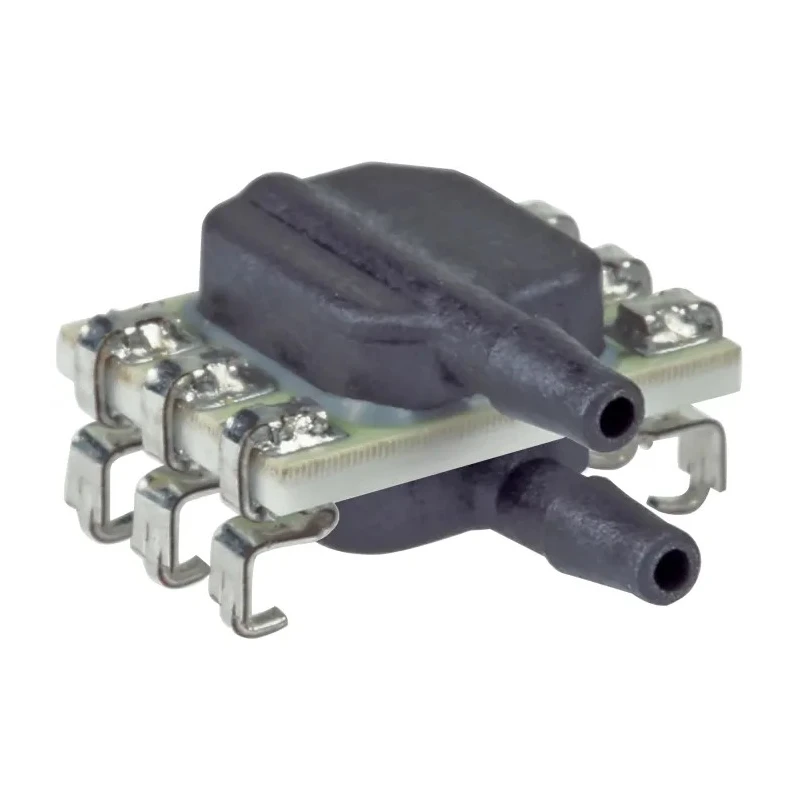

Honeywell Gauge Pressure Sensor Board SMT, Piezoresistive, 600 mbar Max Operating Pressure, ±0.25% Accuracy ABPMRRV600MGAA5

Honeywell ABPMRRV600MGAA5 is a gauge pressure sensor board designed for precise and reliable pressure measurements in industrial, medical, commercial, and HVAC applications. Featuring piezoresistive sensor technology, the device provides a maximum operating pressure of 600 mbar with an accuracy of ±0.25% full scale span (FSS). The sensor outputs a conditioned ratiometric analogue signal or a 12-bit digital signal compatible with I2C or SPI interfaces, allowing versatile integration with different electronic systems.

This device is built on a compact SMT board-mount form factor measuring 10.63 mm in height, 7.3 mm in length, and 6.3 mm in width, with 6 pins for connectivity. It supports dual radial barbed ports allowing fluid connections with dry gases or, optionally, non-corrosive liquids protected by a silicone-based gel coating. The sensor includes an onboard ASIC for temperature compensation and calibration, maintaining stable output over an extended temperature range from -40°C to +85°C.

Power management is enhanced by a sleep mode feature that reduces power to microamp levels, making it suitable for battery-operated applications. Manufactured according to ISO 9001 automotive quality standards, the sensor ensures consistent performance and durability.

Typical applications include continuous positive airway pressure (CPAP) and ventilator pressure monitoring, pneumatic control and valve position sensing, blood analysis devices, patient-monitoring equipment, HVAC transmitters, air-brake systems, and household appliances such as coffee makers and washing machines.

The Honeywell ABPMRRV600MGAA5 pressure sensor board provides a dependable solution where precise pressure measurement and robust environmental tolerance are essential in industrial and healthcare settings.

This piezoresistive pressure sensor offers a ratiometric analogue or 12-bit digital output for flexible integration. Compact SMT board mounting enables easy installation in industrial and medical applications. Operates over a wide temperature range from -40°C to +85°C suitable for diverse environments.

Dual radial barbed ports support flexible fluid connections for dry gases or non-corrosive liquids. Sleep mode dramatically reduces power consumption for battery-powered devices. Manufactured to ISO 9001 standards ensuring reliability and quality.

Ideal for CPAP, ventilators, pneumatic control, and HVAC monitoring systems. Includes a calibrated and temperature-compensated ASIC for stable measurements. Explore the complete range of Pressure Sensor ICs and related electronic components at EnvMart for your industrial and commercial projects.
