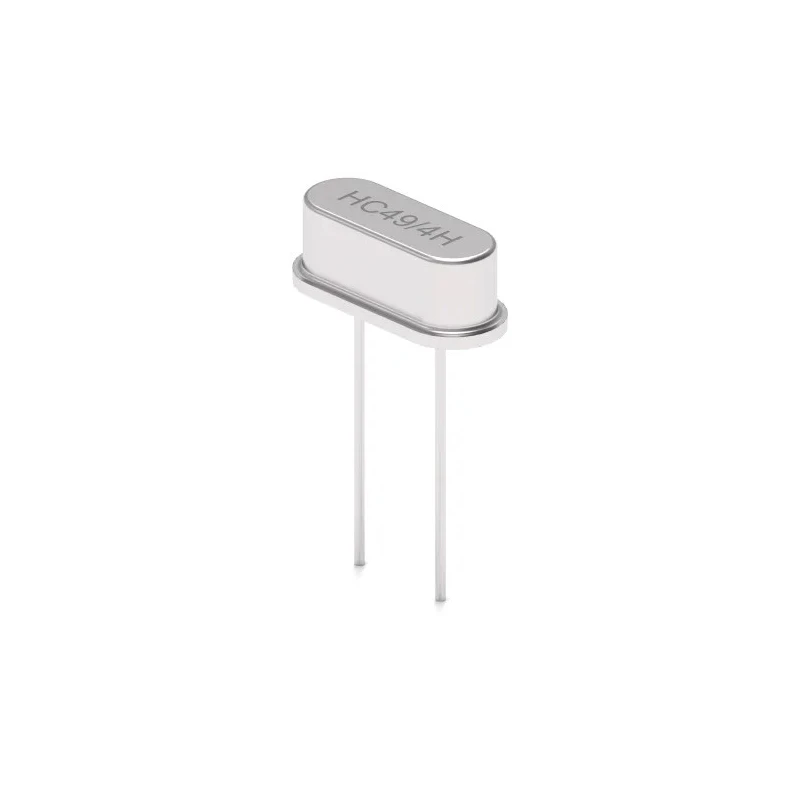

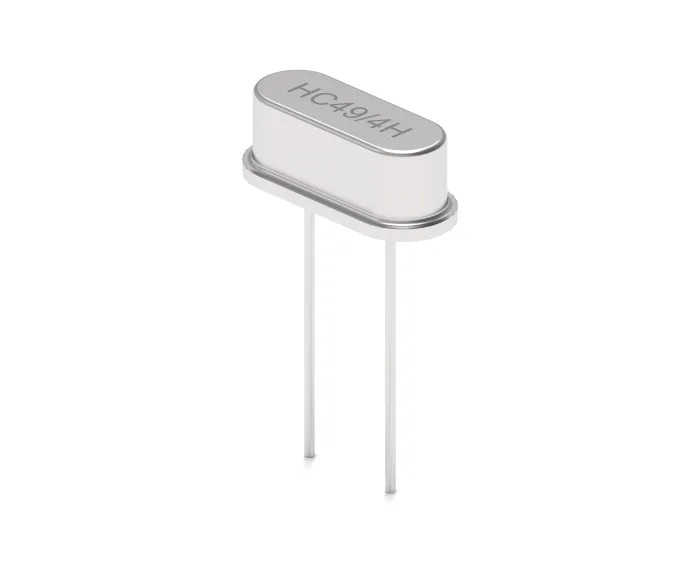

IQD 7.3728 MHz Crystal Unit ±30 ppm HC-49 Through Hole 2-Pin 4.1 mm x 11.05 mm x 4.7 mm LFXTAL003336B

IQD LFXTAL003336B is a reliable crystal unit designed for electronic timing and oscillator applications. It operates at a standard frequency of 7.3728 MHz with a frequency tolerance of ±30 ppm, ensuring accurate and stable frequency generation. The unit is housed in a hermetically sealed HC-49 package that provides excellent protection against environmental factors such as moisture and dust, enhancing durability.

This crystal unit uses a through hole mount with 2 pins spaced to standard PCB layouts, facilitating easy and secure installation. It features a load capacitance of 18 pF and a series resistance of 40 ohms, which contribute to low signal distortion and high circuit reliability.

The frequency stability of ±50 ppm across an operating temperature range from -10°C to 60°C makes this crystal suitable for a variety of industrial and consumer electronics environments where temperature variations are expected. Additionally, the compact physical dimensions of 11.05 mm in length, 4.7 mm in width, and 4.1 mm in height allow for efficient use of board space.

Typically used in oscillators and timing circuits, this Crystal Unit is ideal for applications in telecommunications, computing, and embedded systems requiring precise clock generation. Its adherence to RoHS standards also makes it a compliant choice for environmentally conscious manufacturing.

Standard frequency of 7.3728 MHz for precise timing applications. Hermetically sealed HC-49 package for environmental protection. Through hole mount type with 2 pins ensuring secure PCB connection. Frequency stability of ±50 ppm over the operating temperature range.

Wide operating temperature range from -10°C to 60°C for varied environments. Load capacitance of 18 pF for optimal circuit performance. Series resistance of 40 ohms supporting reliable operation. Compact dimensions: 11.05 mm length, 4.7 mm width, and 4.1 mm height.
