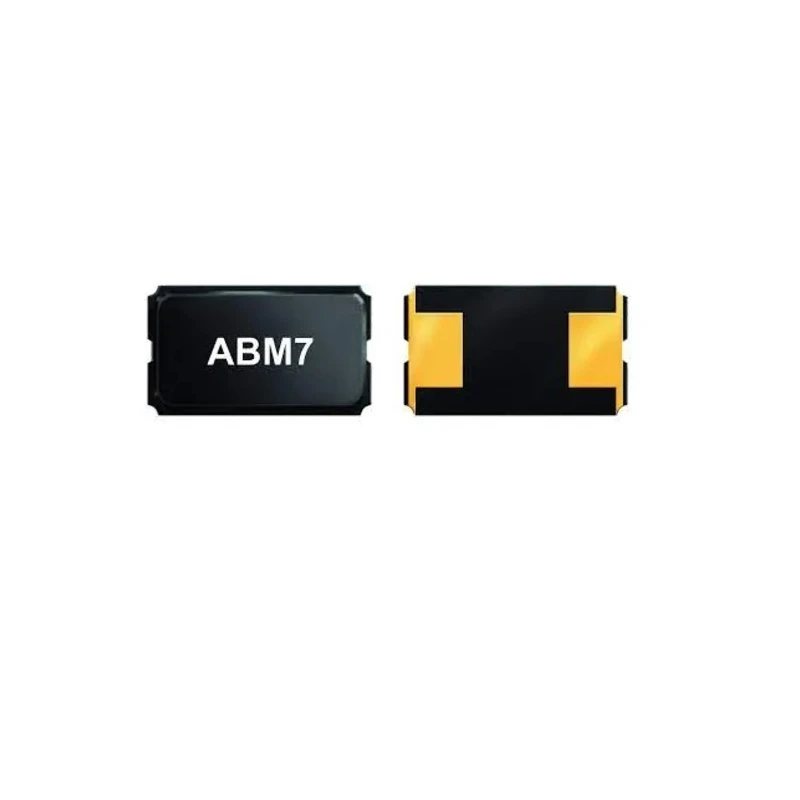

Abracon 12.288 MHz Crystal ±50 ppm Surface Mount 2-Pin 1.4 mm Height 6 mm Length 3.5 mm Width ABM7-12.288MHZ-D2Y-T

Abracon ABM7-12.288MHZ-D2Y-T is a 12.288 MHz ceramic crystal unit optimized for surface mount device (SMD) applications in electronics assembly. The crystal features a compact ceramic package with dimensions 6 mm length, 3.5 mm width, and 1.4 mm height, designed for high-density circuit boards and reliable mechanical performance.

This 2-pin crystal unit operates with a frequency tolerance and stability of ±50 ppm, making it suitable for precise timing applications in modems, communication equipment, embedded systems, and industrial electronics. It is designed with a load capacitance of 18 pF and a series resistance of 60 Ω to enable low power consumption and consistent frequency output.

The product supports a wide operating temperature range from -10°C to 60°C, enabling dependable operation in diverse environmental conditions often encountered in industrial, manufacturing, and telecommunications applications. The ceramic package assures excellent heat resistance and long-term reliability.

Supplied in tape and reel format, the crystal is ready for automated SMT assembly lines, enhancing production efficiency and yield. This RoHS-compliant component meets environmental regulations and industry standards, assuring quality and safety in electronic designs.

Typical applications include use in computers, modems, communication devices, industrial control systems, and embedded microprocessor clocks. Operates with frequency tolerance and stability of ±50 ppm. Compact ceramic surface mount package with 6 mm × 3.5 mm × 1.4 mm dimensions.

2-pin configuration for robust surface mounting. Load capacitance of 18 pF to stabilize frequency oscillation. Wide operating temperature range from -10°C to 60°C. Series resistance of 60 Ω minimizing energy loss. RoHS compliant ensuring environmental and quality standards.

Ceramic package designed for high reliability and dense PCB layouts. Discover more high-quality Crystal Units and electronic components at EnvMart for your industrial and electronic design needs.
