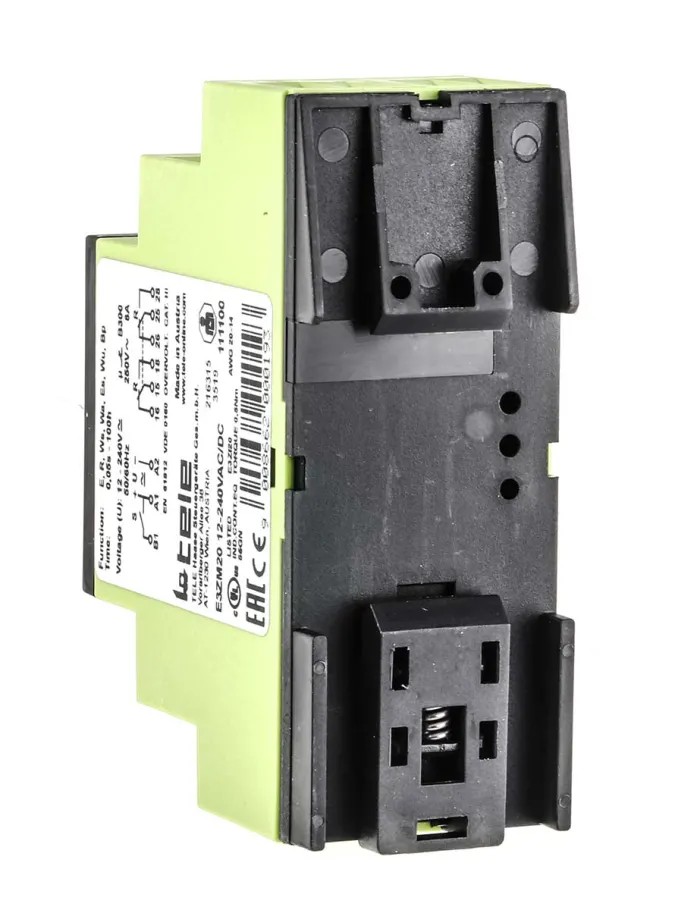

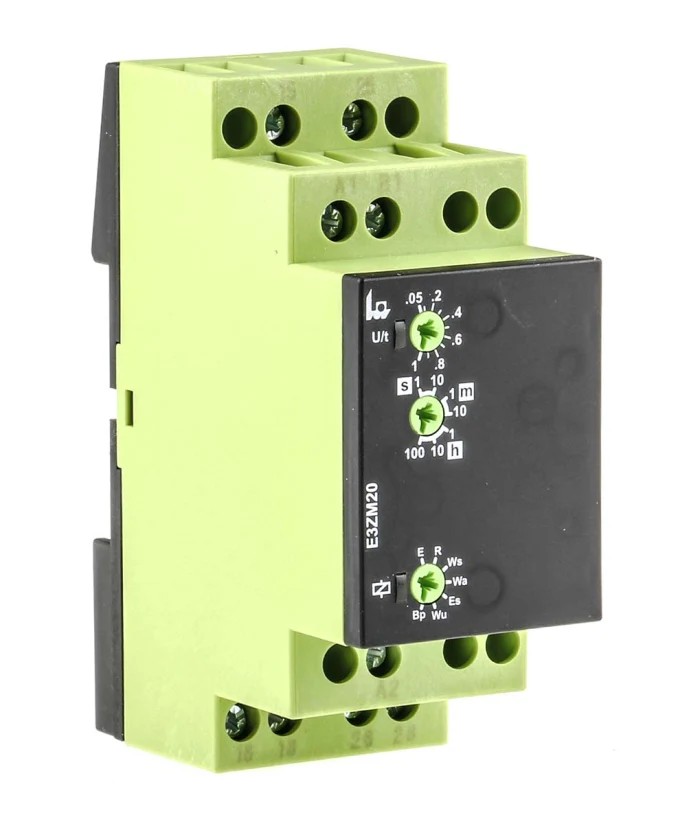

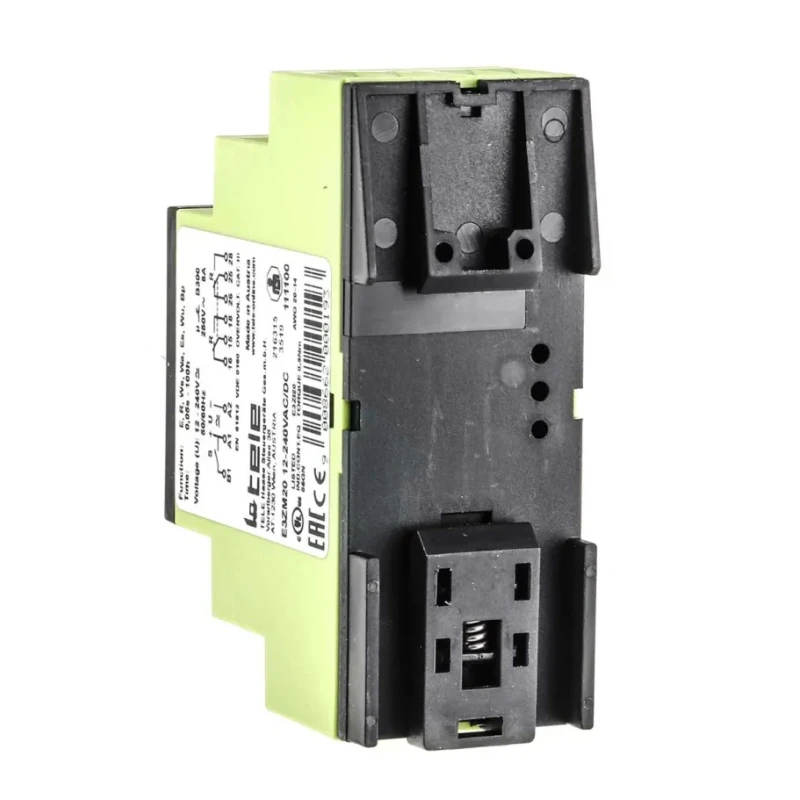

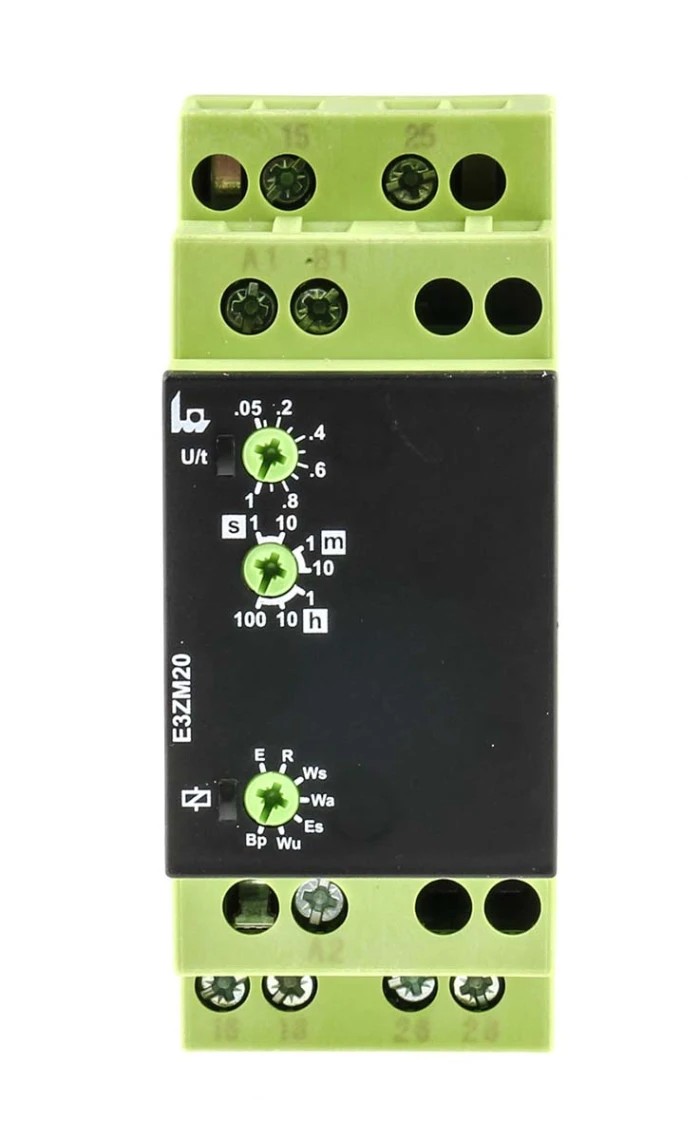

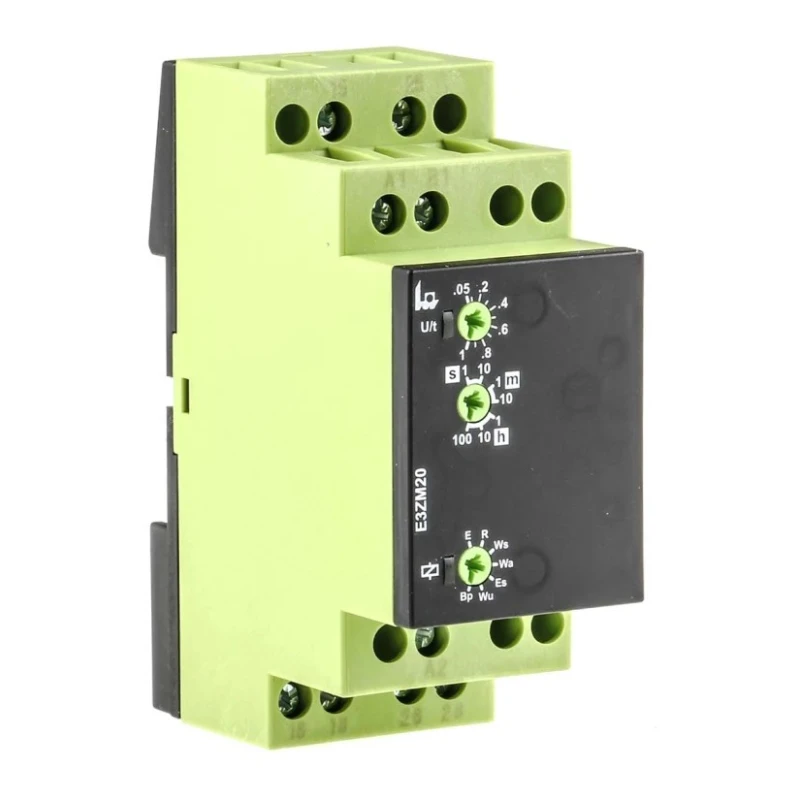

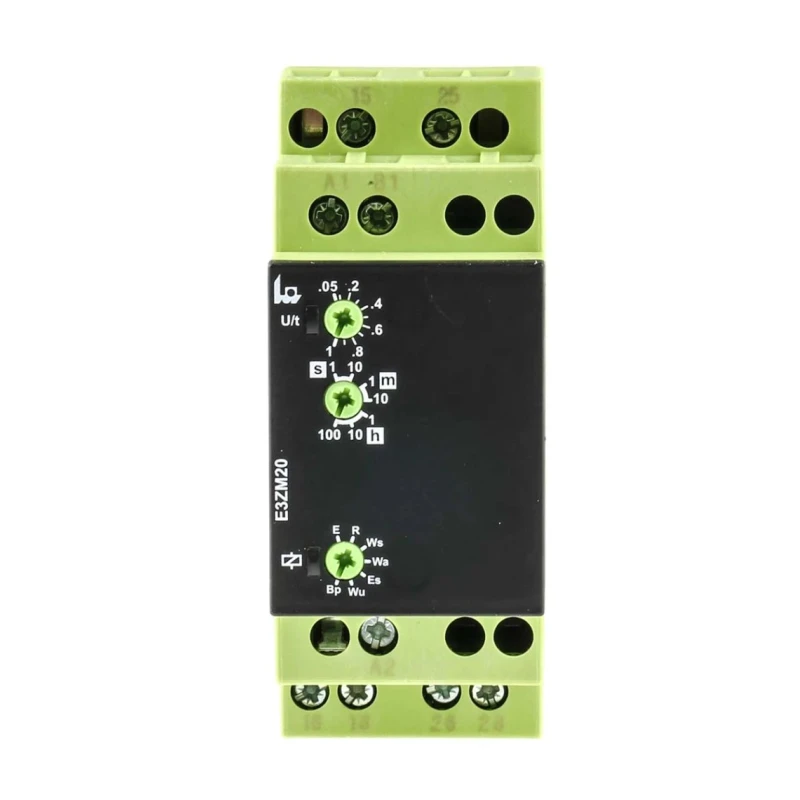

Tele Multifunction DIN Rail Timer Relay 2-Contact DPDT, 12-240 V AC/DC, 0.05 s to 100 h Range E3ZM20

Tele E3ZM20 multifunction DIN Rail Timer Relay is a high precision, solid-state device designed for accurate timing control in industrial environments. It features multifunction timing capabilities with ranges from 0.05 seconds up to 100 hours, suitable for applications requiring ON delay, OFF delay, single-shot leading and trailing edge timings, and control contact functions.

The device supports a broad dual supply voltage range between 12 V AC/DC and 240 V AC/DC, allowing seamless integration into both new and existing electrical systems. Its compact design with dimensions 87 mm length, 65 mm height, and 35 mm width facilitates space-saving DIN rail mounting with easy knob adjustment for timing precision.

Equipped with a DPDT (Double Pole Double Throw) 2-contact relay output rated at 8A, 250 V AC, it supports various industrial applications including textiles, chemical industries, mining, irrigation, food and beverages, and raw material handling. The relay includes LED status indicators for operational feedback and has a self-extinguishing plastic housing to comply with safety requirements.

The timer relay withstands operating temperatures from -25°C to 55°C and incorporates IP40 rated housing along with IP20 rated terminals, providing protection against dust and external elements. Its screw terminal connections ensure firm and reliable wiring connections suitable for demanding environments.

Compact solid-state multifunction timer relay with high precision delay functions. Dual supply voltage range from 12 V to 240 V AC/DC supports versatile integration. DPDT 2-contact relay output rated for 8 A at 250 V AC for heavy load switching.

Timing range adjustable from 0.05 seconds to 100 hours via knob. LED status indicator enhances operational clarity and troubleshooting. Self-extinguishing plastic housing conforms to safety regulations. DIN rail mounting ensures straightforward installation and space efficiency.

Suitable for multiple industrial sectors such as chemical, textile, mining, and food processing. Operating temperature from -25°C to 55°C enables usage in various environments. IP40 rated housing and IP20 rated terminals provide adequate protection.

This product is made in Austria and conforms to standards IEC 60947-5-1, IEC 60664-1, and IEC 60721-3-3, assuring high reliability and compliance. Explore EnvMart's range of Timer Relays and DIN rail mounting equipment for your industrial automation and control needs.
