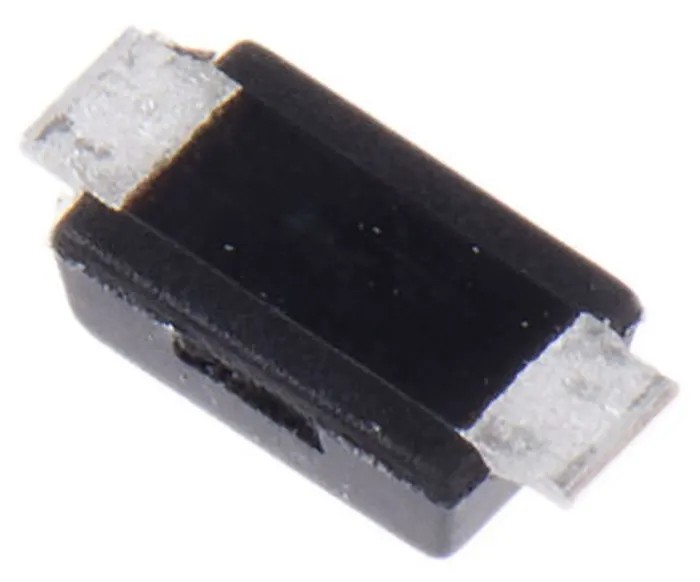

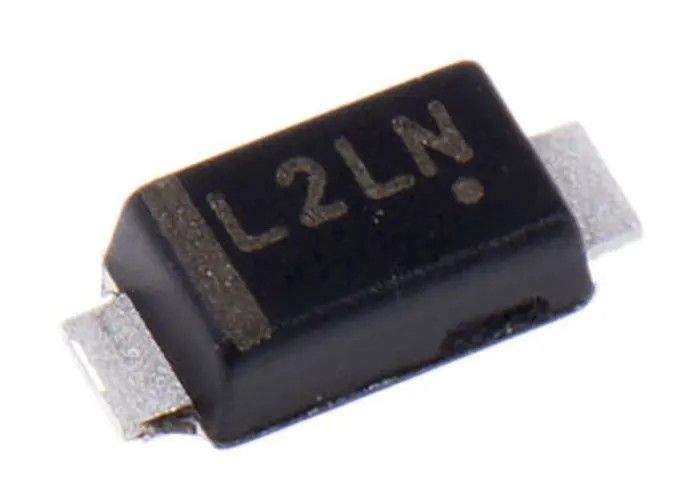

ROHM 100 V 1 A Schottky Barrier Diode Surface Mount SOD-123FL RB168MM100TR

Free Delivery in India | Lowest Global Shipping Charges

ROHM 100 V 1 A Schottky Barrier Diode Surface Mount SOD-123FL RB168MM100TR

Name: ROHM 100 V 1 A Schottky Barrier Diode Surface Mount SOD-123FL RB168MM100TR
Brand: ROHM
SKU: 143868
Price: 0.19 USD
Availability: InStock



Category Schottky Diodes & Rectifiers Brand ROHM Condition New

Specifications

Country of Origin	India
Brand	ROHM
Height	0.8mm
Length	2.6mm
Model	RB168MM100TR
Width	1.6mm
Mount Type	Surface
Series	RB168MM100
Maximum Operating Temperature	150°C
Package Type	SOD-123FL
Minimum Operating Temperature	55°C
Pin Count	2
Automotive Standard	AEC-Q101
Maximum Continuous Forward Current If	1A
Peak Reverse Repetitive Voltage Vrrm	100V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	400mA
Peak Non-Repetitive Forward Surge Current Ifsm	40A
Maximum Forward Voltage Vf	810mV
Peak Reverse Recovery Time trr	7.2ns

Key Features

Maximum continuous forward current of 1 ampere.
Peak reverse repetitive voltage rated at 100 volts.
Low forward voltage of 810 millivolts improves energy efficiency.
Compact surface mount SOD-123FL package with dimensions 2.6 x 1.6 x 0.8 mm.
Fast recovery time of 7.2 nanoseconds suitable for high-speed switching.
Peak non-repetitive forward surge current capability of 40 amperes.
Wide operating temperature range from -55°C to 150°C for reliable performance.
AEC-Q101 automotive qualified for demanding applications.

Product Description

ROHM RB168MM100TR is a Schottky Barrier Diode designed for efficient power conversion with a maximum continuous forward current of 1 amp and a peak reverse repetitive voltage of 100 volts. Packaged in a compact SOD-123FL surface mount form factor measuring 2.6 mm length, 1.6 mm width, and 0.8 mm height, it offers a low forward voltage drop of 810 mV and fast switching capabilities with a peak reverse recovery time of 7.2 ns.

This diode supports peak non-repetitive surge currents up to 40 amperes and is engineered to operate reliably across a wide temperature range from -55°C to 150°C. Additionally, it adheres to AEC-Q101 automotive standards, making it suitable for automotive electronics and industrial applications that demand robustness and quality.

The RB168MM100TR is ideally suited for power supply rectification, voltage clamping, and protection circuits where efficiency and minimal power loss are critical. Its compact size and surface mount packaging make it easy to integrate into various printed circuit boards for electronics, power management systems, and consumer devices.

Maximum continuous forward current of 1 ampere. Peak reverse repetitive voltage of 100 volts. Low forward voltage: 810 mV. Surface mount SOD-123FL package. Fast reverse recovery time: 7.2 ns. Peak surge current: 40 amperes.

Operating temperature range: -55°C to 150°C. AEC-Q101 automotive certification. Compact dimensions: 2.6 mm length, 1.6 mm width, 0.8 mm height. Explore more ROHM semiconductor products on EnvMart for electronics design, prototyping, and industrial use.
