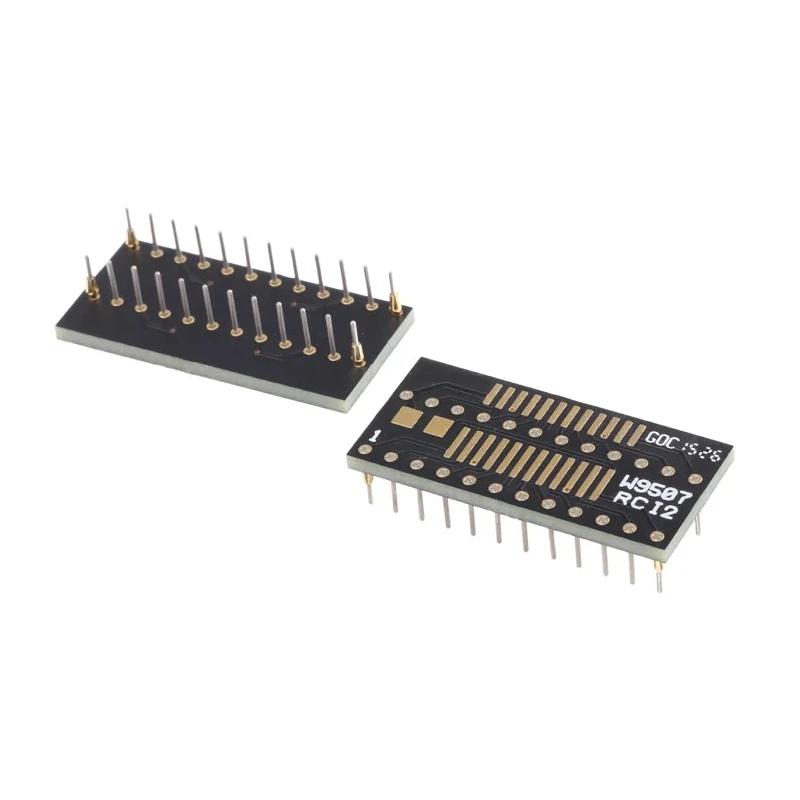

Winslow Straight Through Hole Mount 2.54 mm Pitch IC Socket Adapter SOIC to DIP W9507RC
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Winslow |
| Orientation | Straight |
| Model | W9507RC |
| Mount Type | Through Hole |
| Housing Material | FR4 |
| Contact Material | Brass |
| Pitch | 2.54mm |
| Contact Plating | Gold over Nickel |
| Connection Gender A | Female |
| Number of Contacts A | 24 |
| Connection Gender B | Male |
| PCB | Epoxy Fibreglass FR4 |
| Connection A | SOIC |
| Connection B | DIP |
| CIF 1.27 mm, 2.54 mm Pitch IC Socket AdapterBrand | CIF |
Key Features
- Through hole mount type ensures secure PCB installation.
- Contact plating features gold over nickel for reliable conductivity.
- Compatible with Small Outline ICs (SOIC) to dual in line package (DIP) conversion.
- Contacts made of brass and housing constructed with FR4 epoxy fibreglass.
- Offers straight orientation for precise alignment.
- Enables cost-saving by reducing PCB redesign during development.
- Manufactured in the United Kingdom assuring quality standards.
Product Description

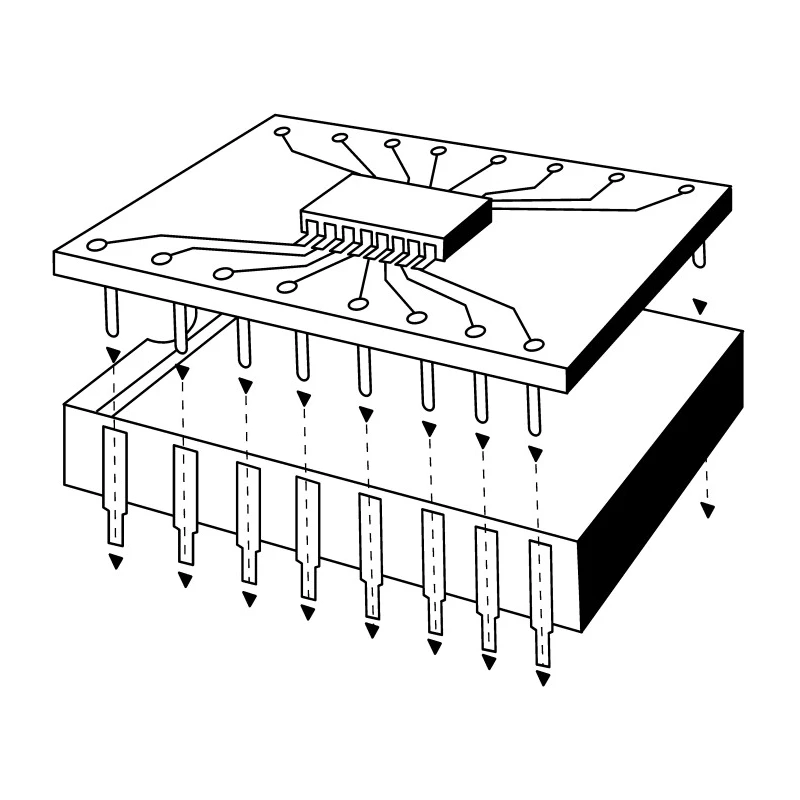

Winslow W9507RC Straight Through Hole Mount IC Socket Adapter features a 2.54 mm pitch designed for electronic component interconnection, converting Small Outline IC (SOIC) to a Dual In-line Package (DIP).
This adapter adopts a through hole mount type, making it suitable for securely fixing on printed circuit boards (PCBs) using epoxy fibreglass FR4 material, ensuring structural integrity and durability. Brass contact material with gold over nickel plating provides excellent electrical conductivity and corrosion resistance, critical for reliable signal transmission.
With 24 contacts on both SOIC (female) and DIP (male) sides and a straight orientation, this IC socket adapter is ideal for engineers and developers seeking to adapt surface-mounted SOICs to DIP configurations without redesigning existing PCBs. The product complies with no specific approvals but meets industry standards for socket adapters.
This component is particularly useful in prototyping, testing, and small-scale manufacturing settings within industrial, laboratory, electronics development, and repair environments. Utilizing the adapter reduces development costs and time by avoiding the need for custom PCB layouts for different packaging types.
Through hole mount type for secure PCB attachment. Gold over nickel plated brass contacts ensure superior conductivity. Designed for SOIC to DIP package conversion. 24 female contacts on SOIC side and 24 male contacts on DIP side.
Straight orientation for precise alignment with PCB pads. Housing made from epoxy fibreglass FR4 for durability. Product manufactured in the United Kingdom. Adaptics range supports package style conversion to reduce redesign costs.
Choose Winslow IC Socket Adapters for reliable and cost-effective integration of SOIC components into DIP systems. Browse more electronics components and connector solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this IC socket adapter is 2.54 mm.
It supports connections from Small Outline IC (SOIC) on the female side to Dual In-line Package (DIP) on the male side.
This model features 24 contacts on both the SOIC and DIP sides.
The contacts are made of brass with gold over nickel plating, and the housing is constructed from FR4 epoxy fiberglass.
It utilizes a through hole mount type for secure attachment to printed circuit boards (PCBs).
The orientation of this adapter is straight, allowing for precise alignment with PCB pads.
This product is manufactured in the United Kingdom.
It is primarily used for converting SOIC to DIP configurations in prototyping, testing, and small-scale manufacturing settings.
The gold over nickel plating on the contacts ensures reliable conductivity and corrosion resistance, which is critical for signal transmission.
The housing is made from epoxy fiberglass FR4, which provides structural integrity and durability.
