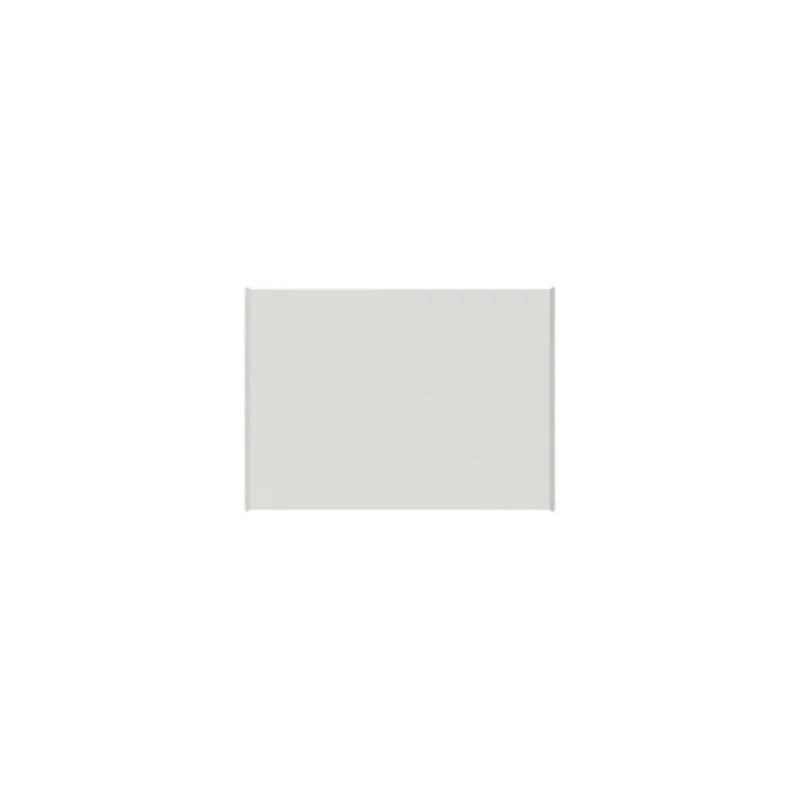

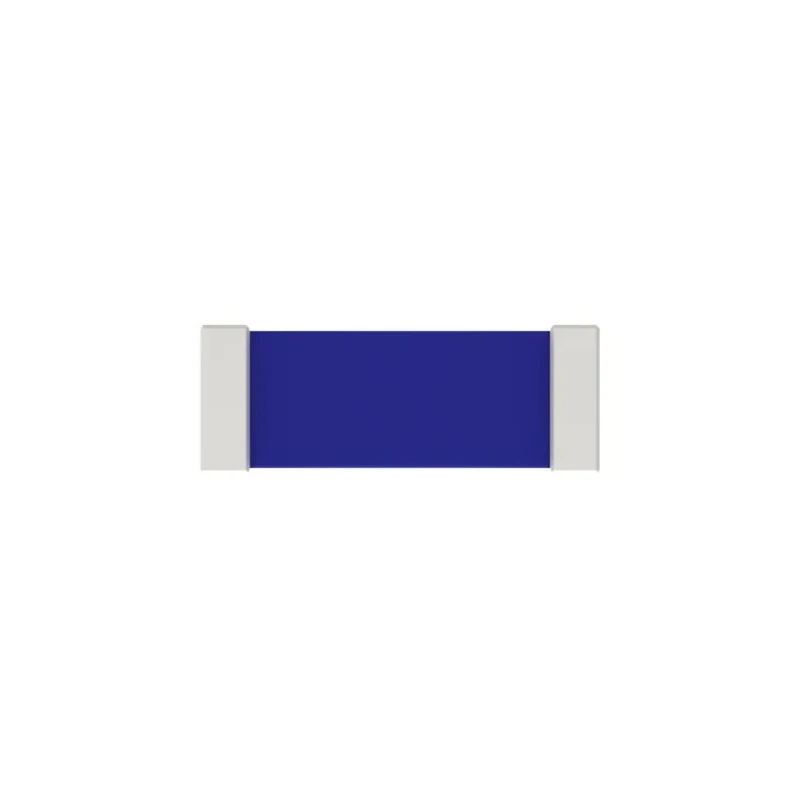

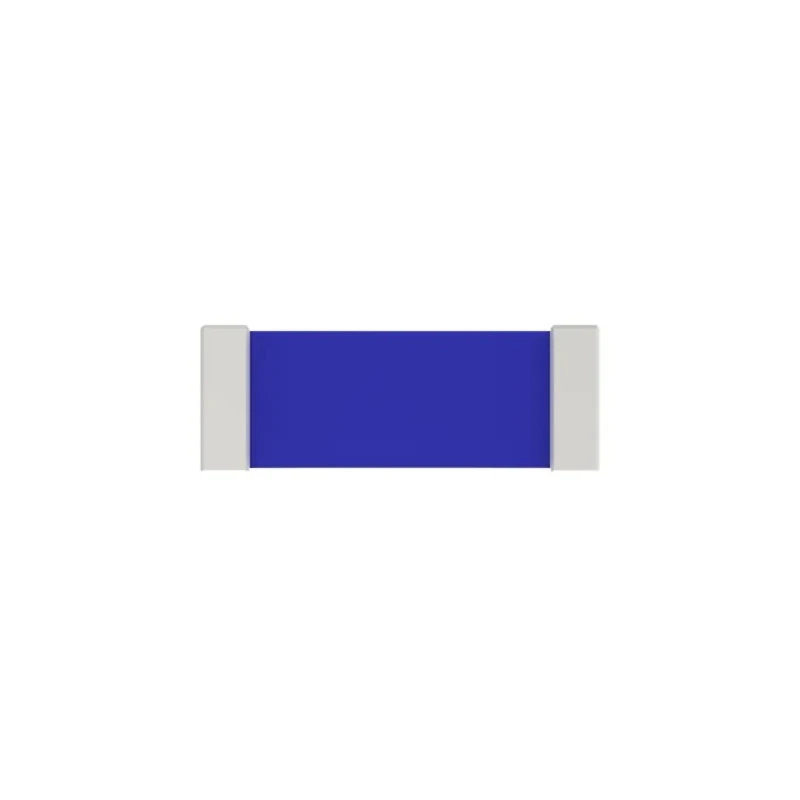

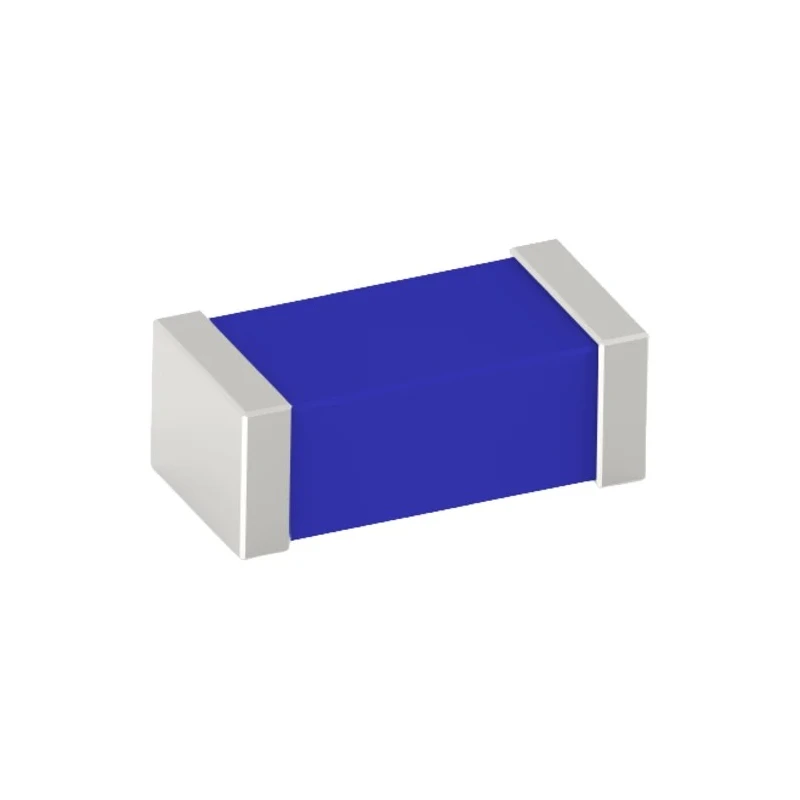

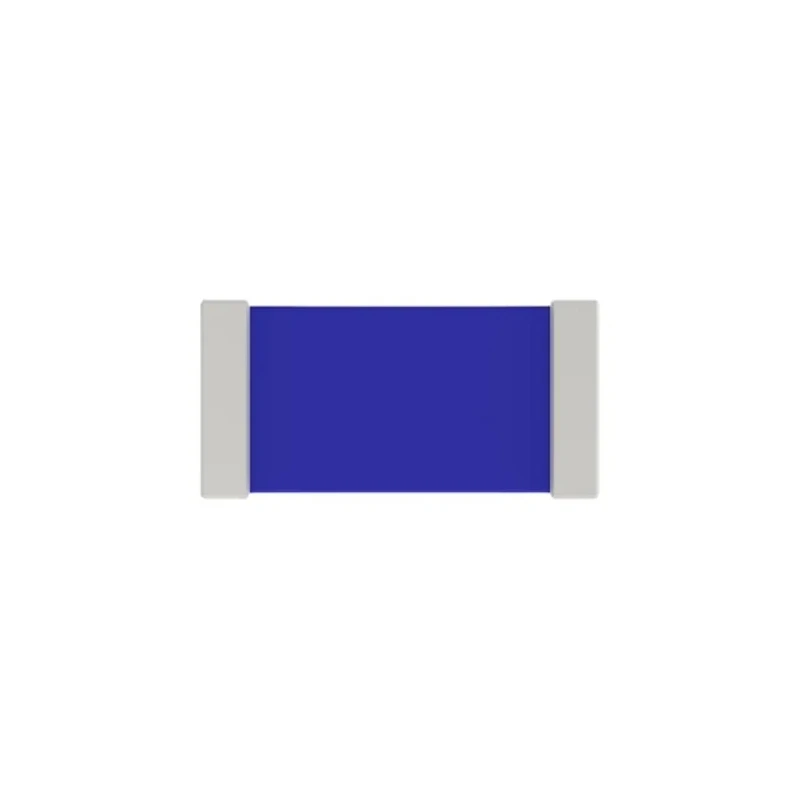

TE Connectivity WiFi Antenna Internal Square Ceramic Chip 2.4GHz 2.4dBi Gain Surface Mount 2108838-1

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity WiFi Antenna Internal Square Ceramic Chip 2.4GHz 2.4dBi Gain Surface Mount 2108838-1

Name: TE Connectivity WiFi Antenna Internal Square Ceramic Chip 2.4GHz 2.4dBi Gain Surface Mount 2108838-1
Brand: TE Connectivity
SKU: 173568



Category WiFi Antenna Brand TE Connectivity Condition New

Specifications

Country of Origin	Korea
Brand	TE Connectivity
Bandwidth	10MHz
Series	GNSS
Gain	2.4dBi
Maximum Frequency	2.4GHz
Minimum Frequency	2.4GHz
Internal/External	Internal
Antenna Physical Form	Square
Antenna Mount Type	Surface
Directivity	Omni-Directional
Antenna Internal Construction	Ceramic Chip
VSWR (Max) 2.0	1

Key Features

Rated for a frequency range of 2.4 GHz with a bandwidth of 10 MHz.
Omni-directional directivity ensures broad signal coverage.
Compact dimensions of 3.2 mm x 1.6 mm x 1.2 mm enable embedded applications.
Linear polarization suitable for Wi-Fi, Bluetooth, and ZigBee communication.
Constructed as a surface mount device (SMT) for PCB integration.
Lightweight design at approximately 0.02 grams.
Manufactured in the Republic of Korea ensuring quality compliance.

Product Description

TE Connectivity 2108838-1 WiFi Antenna is a high-performance internal antenna with a square ceramic chip construction optimized for 2.4 GHz applications. This antenna supports protocols including Wi-Fi 2.4 GHz, Bluetooth, and ZigBee, making it versatile for wireless communication devices.

The antenna features a compact form factor measuring only 3.2 mm x 1.6 mm x 1.2 mm, enabling easy embedding onto printed circuit boards via surface mount technology. Its linear polarization design offers reliable signal quality in omni-directional coverage, ideal for both industrial and commercial wireless communication.

Performance parameters include a gain of 2.4 dBi and a bandwidth of 10 MHz, supporting stable transmission at the 2.4 GHz ISM frequency. The antenna impedance is standardized at 50 ohms, and the VSWR is maintained below 2.0:1 to minimize signal reflection and loss.

Constructed with a ceramic chip internal architecture, this antenna provides durability and consistent electrical performance. Its weight is approximately 0.02 grams, making it a lightweight component for integration into compact devices.

The TE Connectivity 2108838-1 WiFi Antenna is suitable for a range of applications across industrial, commercial, networking, laboratory, and telecommunications sectors. Its robust design and regional compatibility support global Bluetooth and Wi-Fi bands.

Rated frequency: 2.4 GHz with 10 MHz bandwidth. Gain specification of 2.4 dBi for enhanced signal strength. Omni-directional directivity for wide coverage. Linear polarization optimized for 2.4 GHz wireless protocols. Compact SMB surface mount device for easy PCB assembly.

Lightweight ceramic chip internal construction ensuring reliability. Manufactured in the Republic of Korea for quality assurance. Explore more WiFi Antennas and related electronic components in our extensive catalog at EnvMart, catering to diverse industrial and technological needs.
