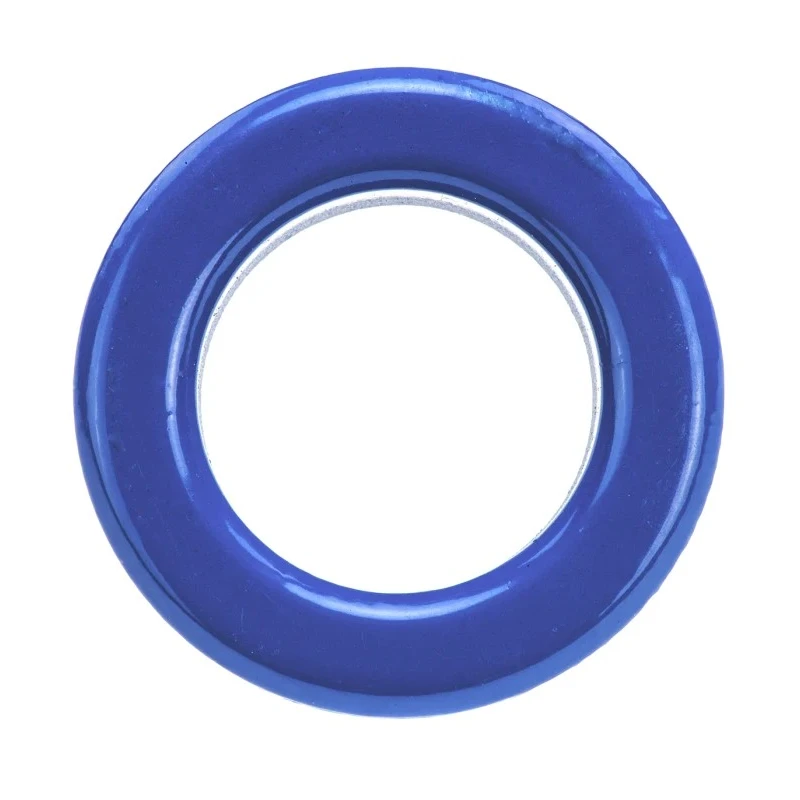

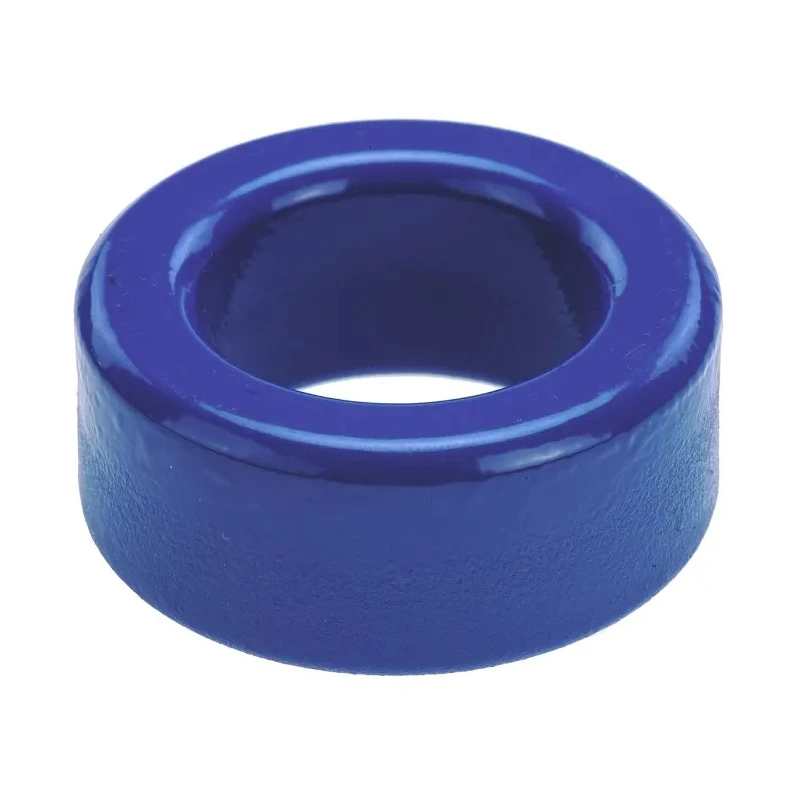

TDK Ferrite Ring Toroid Core 16.2 mm Height 23 mm Inside Diameter 37.5 mm Outside Diameter B64290L0674X830

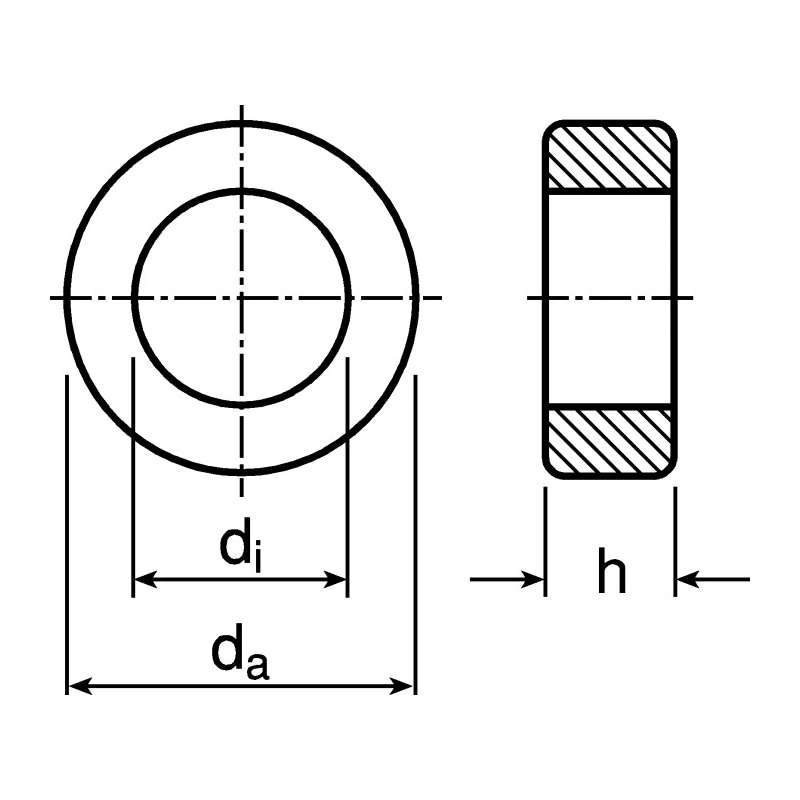

TDK B64290L0674X830 Ferrite Ring Toroid Core is a precision electronic component designed for general electronics applications. It features a height of 16.2 mm, an inside diameter of 23 mm, and an outside diameter of 37.5 mm, making it suitable for various EMI filtering and signal conditioning roles.

This ferrite ring is made from high-grade N30 ferrite material known for its excellent magnetic properties and high permeability, making it effective in suppressing electromagnetic interference (EMI) in circuits. The ring core is coated with a durable polyamide or epoxy resin, which provides electrical insulation and protects the core edges from mechanical damage during assembly and operation.

Typical applications include the use in chokes, baluns, pulse transformers, and broadband transformers where it helps to enhance signal quality and minimize noise. Its toroidal shape optimizes magnetic flux containment, leading to efficient magnetic performance and reduced electromagnetic emissions.

Its compact, well-defined geometric dimensions enable easy integration into electronic devices and assemblies without compromising on space or performance. The ring’s design does not include any formal standards or approvals, aligning it with general-purpose electronic components.

Manufactured from N30 ferrite material providing effective EMI suppression. Coated with polyamide or epoxy resin for insulation and edge protection. Suitable for use in chokes, baluns, pulse transformers, and broadband transformers.

Designed to improve signal integrity in power and electronic circuits. High-quality toroidal shape ensures optimized magnetic performance. Compact size with precise dimensions for fitting into electronic assemblies. Standard unapproved component ideal for general electronics applications.

This product is essential in industrial electronics, telecommunications, and power supply manufacturing. It is compatible with various equipment types requiring EMI filtering and signal conditioning components.
