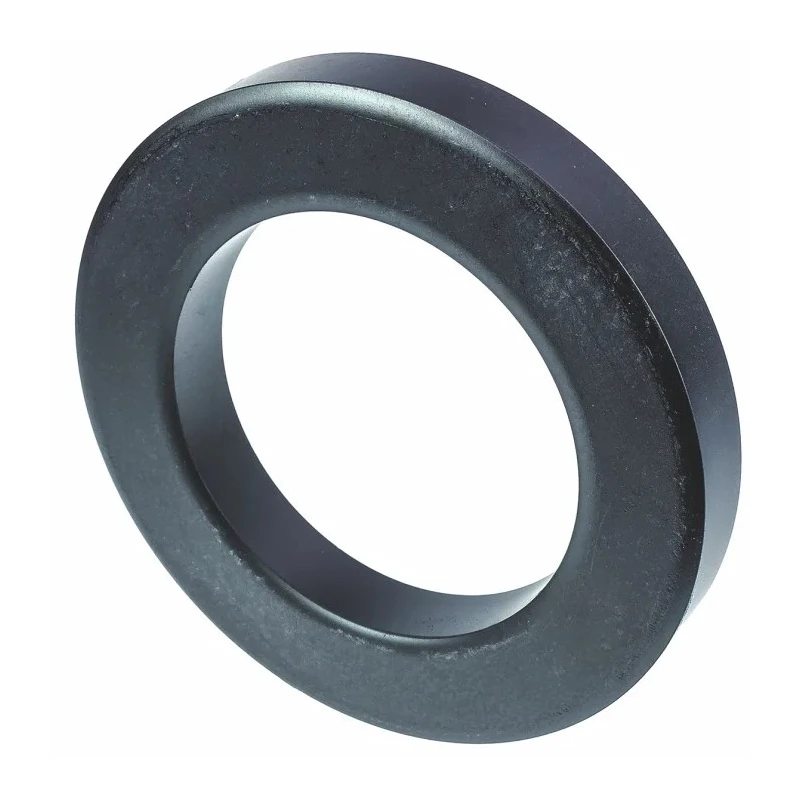

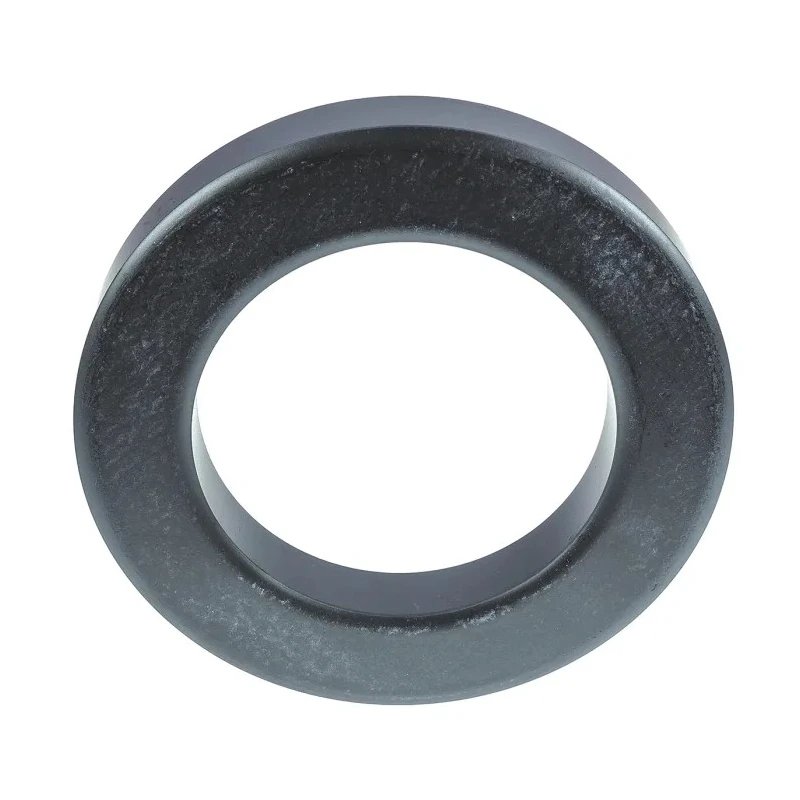

TDK Ferrite Ring Ferrite Core, 16.3 mm Height, 63.7 mm ID, 104.8 mm OD, 75Ω, B64290A0084X830
Specifications
| Country of Origin | India |
|---|---|
| Brand | TDK |
| Material | Copper (Plate), Ferrite |
| Height | 16.3mm |
| Model | B64290A0084X830 |
| Series | B64290A0084 |
| Outside diameter | 104.8mm |
| Sub Type | Ferrite Core |
| Inside Diameter | 63.7mm |
| Impedance | 75Ω |
| Standards/Approvals | RoHS |
| Maximum Frequency | 100MHz |
| Minimum Frequency | 25MHz |
| TDK Ferrite Ring Ferrite Core 16.3 mm, For | Pulse, Transformer, Mixer, Choke, Broadband Transformer 63.7 mm ID 104.8 mm |
Key Features
- High-performance ferrite ring core designed for electromagnetic interference suppression.
- Impedance rating of 75Ω ensures effective filtering.
- Suitable for use in pulse, transformer, mixer, choke, and broadband transformer circuits.
- Constructed from copper plate and ferrite for durability and electrical insulation.

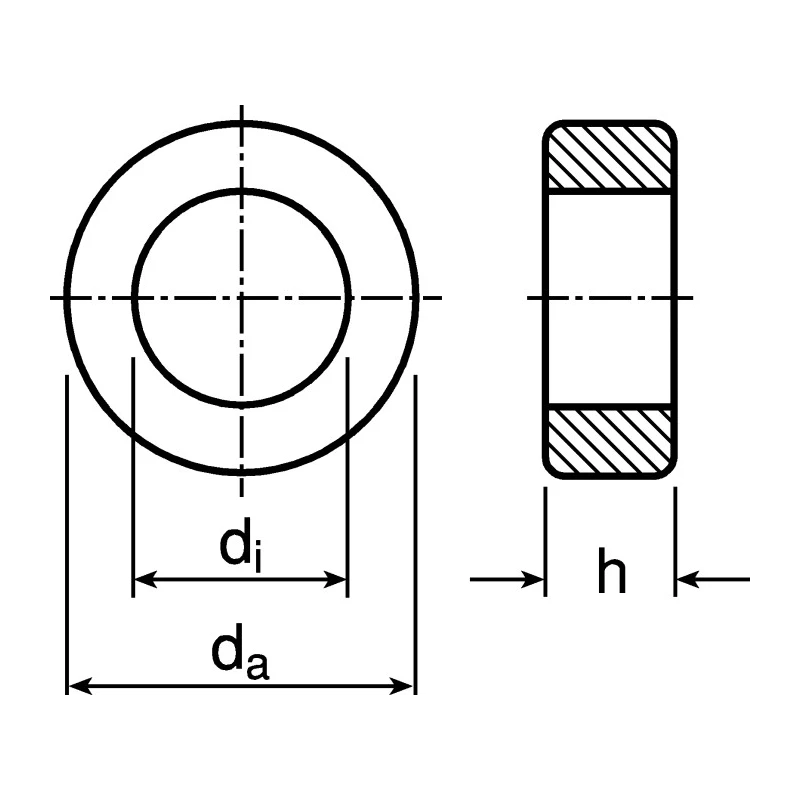

- 16.3 mm height, 63.7 mm inside diameter, and 104.8 mm outside diameter.
- Applicable for minimum frequency of 25 MHz and maximum frequency of 100 MHz.
- Coated with polyamide or epoxy resin for enhanced edge protection and insulation.
- Meets RoHS compliance standards for environmental safety.
Product Description
TDK B64290A0084X830 Ferrite Ring Ferrite Core offers reliable electromagnetic interference suppression for demanding electronic applications. Featuring a height of 16.3 mm, an inside diameter of 63.7 mm, and an outside diameter of 104.8 mm, this component is engineered for precision performance and compatibility with pulse, transformer, mixer, choke, and broadband transformer circuits.
High-quality ferrite ring core tailored for EMI protection. Impedance of 75Ω optimizes filtering efficiency across a defined frequency range. Built with durable copper plate and ferrite materials for long-term stability and insulation.
Coated with polyamide or epoxy resin, providing insulation and superior edge protection. Applicable for frequencies between 25 MHz and 100 MHz, suitable for a variety of industrial and commercial uses. Meets RoHS compliance standards, ensuring environmentally safe design.
Provides essential functions in pulse transformer, mixer, choke, and broadband transformer configurations. Ready for integration into machinery, enhancing production efficiency in electronics manufacturing. Available in box packaging for safe handling and improved logistics.
This ferrite ring is ideal for industrial, laboratory, and commercial applications such as transformer assembly, EMI filtering, and broadband signal processing. Its robust design ensures reliable performance under variable operating conditions. It is specifically recommended for use in electronic components, power and connectors, passive components, and EMI filters for effective interference suppression.
Explore additional Ferrite Ring and EMI suppression solutions in the TDK product range on EnvMart for high-performance electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The ferrite core has an impedance rating of 75Ω, which ensures effective filtering for various applications.
This model has a height of 16.3 mm, an inside diameter of 63.7 mm, and an outside diameter of 104.8 mm.
It is applicable for a minimum frequency of 25 MHz and a maximum frequency of 100 MHz, making it suitable for various electronic applications.
The core is constructed from copper plate and ferrite, providing durability and electrical insulation.
It is suitable for use in pulse transformers, mixers, chokes, and broadband transformer circuits, enhancing electromagnetic interference suppression.
Yes, it meets RoHS compliance standards, ensuring it adheres to environmental safety regulations.
The ferrite core is coated with polyamide or epoxy resin for enhanced edge protection and insulation.
The model number of this ferrite core is B64290A0084X830, which is part of the B64290 series.
The country of origin for this ferrite core is India.
It provides reliable electromagnetic interference suppression, making it essential for various electronic components and applications.
It is available in box packaging, which ensures safe handling and improved logistics during delivery.
This ferrite core belongs to the B64290 series, specifically the model B64290A0084.
