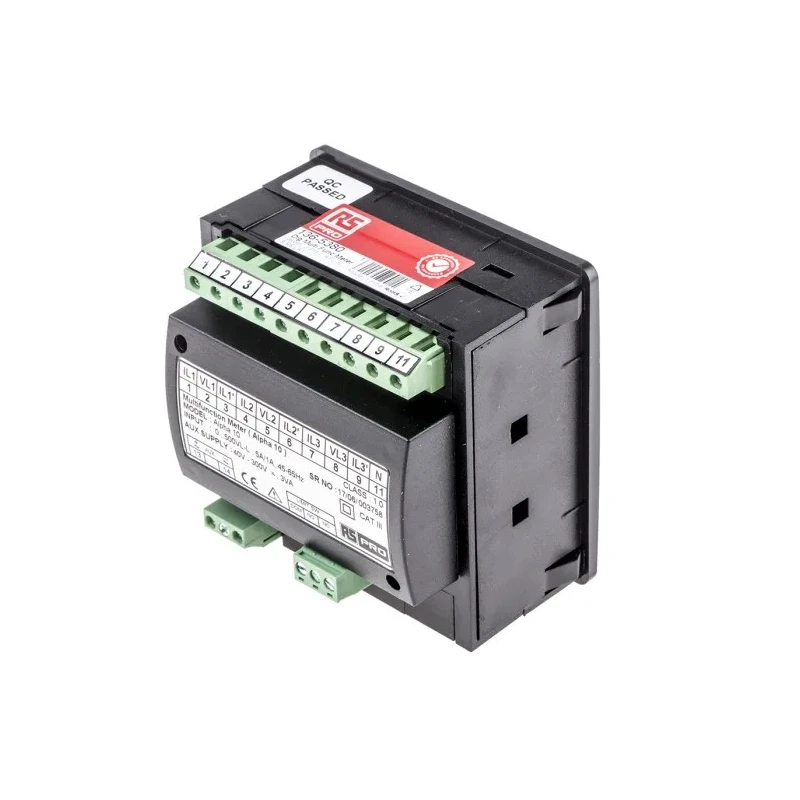

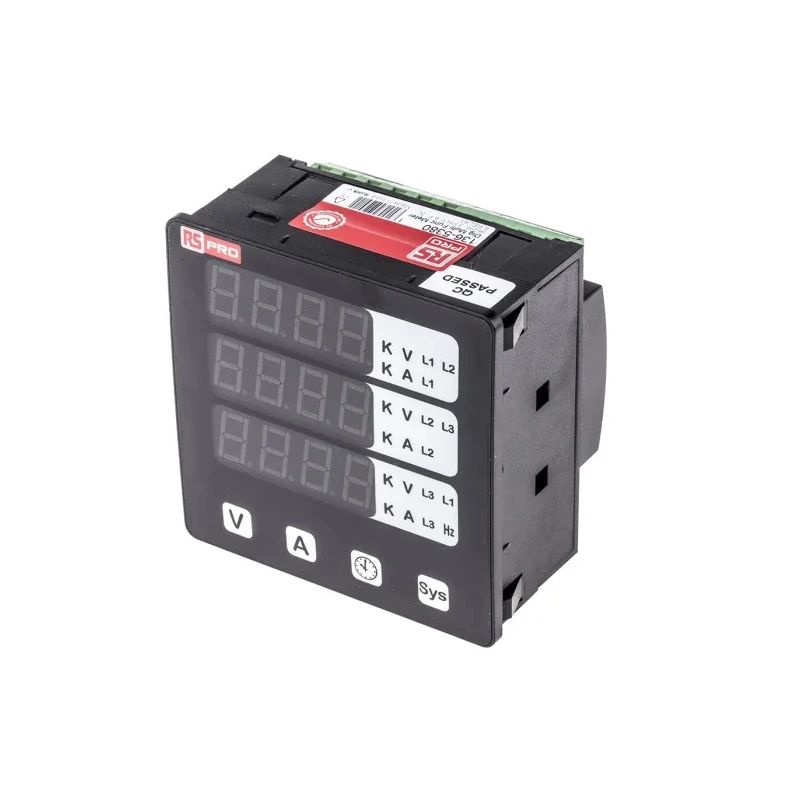

RS Pro LED Digital Panel Multifunction Meter for Hour, Rotational Speed, Frequency, AC Current, AC Voltage, 92 mm x 136-5380

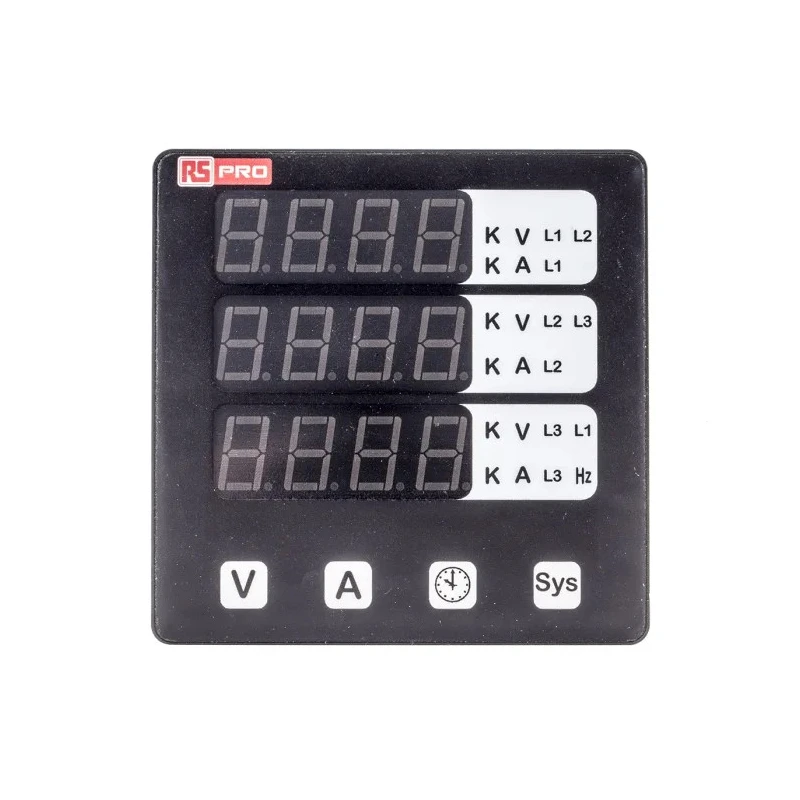

RS Pro 136-5380 is a LED Digital Panel Multifunction Meter designed to measure critical electrical parameters including Hour, Rotational Speed, Frequency, AC Current, and AC Voltage. This meter features a 4-digit display with 1 or 3 line option and an ultra-bright LED screen for easy visibility in industrial and commercial environments.

The device supports true RMS measurement, offering precise readings for AC parameters in 3-phase three-wire and four-wire networks, eliminating the need for multiple analogue meters. It is equipped with on-site programmable CT/PT ratios, user selectable CT secondary (1A/5A), and PT secondary from 100 VLL to 500 VLL, affording flexibility to match various network requirements.

With a wide auxiliary power supply that accepts 40 V to 300 V AC/DC or 12 V to 48 V DC, the meter adapts to diverse power conditions. It also includes advanced features such as storage of minimum and maximum values, measurement of RPM, run hours, and counts of interruptions for extensive system monitoring.

Installation is straightforward with a self-clicking panel mount mechanism, facilitating quick setup. Operating temperature ranges from -20°C to 70°C, making it suitable for a variety of industrial environments. The RS Pro 136-5380 meets IEC 60529, IEC 61010-1:2001, and IEC 61326-1:2005 standards, ensuring compliance with international safety and electromagnetic compatibility requirements.

This multifunction meter is ideal for industrial automation, electrical process control, manufacturing facilities, utilities monitoring, and commercial electrical systems. Features a 4-digit, 1 or 3 line ultra-bright LED display for clear readout.

Offers true RMS measurement for accurate AC readings. Supports measurement of electrical parameters in 3 phase 3-wire and 4-wire networks. On-site programmable CT/PT ratios and user selectable voltages for network adaptability.

Wide auxiliary power supply input ranging from 40 V to 300 V AC/DC or 12 V to 48 V DC. Includes storage of minimum and maximum values for monitoring changes over time. Measures RPM, run hours, on hours, and number of interrupts for detailed performance tracking.

Designed for fast and easy panel installation with self-clicking mount system. Complies with IEC 60529, IEC 61010-1:2001, and IEC 61326-1:2005 standards for safety and performance. Explore more RS Pro products in the Digital Panel Multifunction Meter category at EnvMart for reliable industrial automation solutions.
