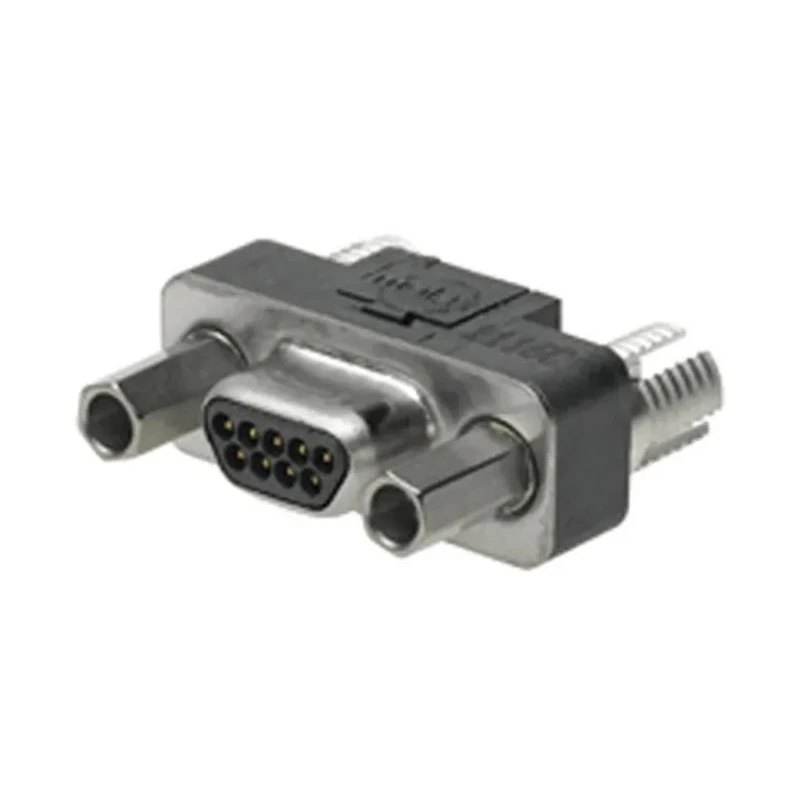

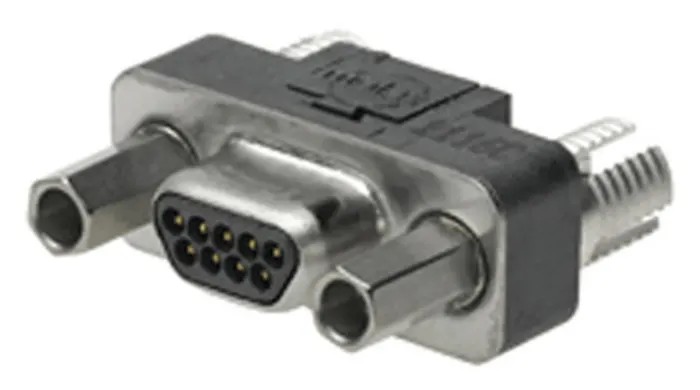

Molex 9 Way Straight 1.27 mm Pitch Through Hole D-Sub Connector Male 83611-9023

Molex 83611-9023 is a high quality 9 Way Straight 1.27 mm Pitch Through Hole D-Sub Connector Male designed for dense and reliable electrical connections.

This Micro-D connector series provides a compact, rugged solution ideal for applications where PCB space is limited, such as industrial electronics, communication equipment, and embedded systems.

The connector uses liquid crystal polymer housing to ensure mechanical strength and electrical insulation, with copper alloy contacts gold plated to maintain signal quality and reduce corrosion in harsh environments.

It supports a maximum operating voltage of 600V and current up to 1A, suitable for low power electronic circuits. The operating temperature range of -40°C to 125°C allows use in diverse industrial and laboratory conditions.

Designed for through hole mounting with solder termination, this connector ensures secure PCB attachment and ease of manufacturing during assembly. The contact pitch of 1.27 mm provides high contact density in a minimal footprint, and the straight orientation simplifies cable routing in tight spaces.

This connector is part of the Molex 83611 series Micro-D connectors which are significantly smaller than standard D connectors, helping manufacturers achieve compact electronic designs without sacrificing connection integrity.

This connector features 9 contacts designed for male connection. The pitch between contacts is precisely 1.27 mm ensuring accurate connection spacing. Housing material is Liquid Crystal Polymer providing durability and electrical insulation.

Rated for 600V operating voltage and 1A current capacity. Suitable for operating temperatures ranging from -40°C to 125°C. Gold plating on copper alloy contacts enhances corrosion resistance and conductivity. Connector is designed for through hole mounting and solder termination.

It has a straight orientation facilitating easy PCB integration. Part of the 83611 series of Molex Micro-D connectors, four times smaller than conventional D connectors. This product is well suited for industrial, laboratory, and manufacturing applications requiring small form factor, reliable PCB connector solutions.
