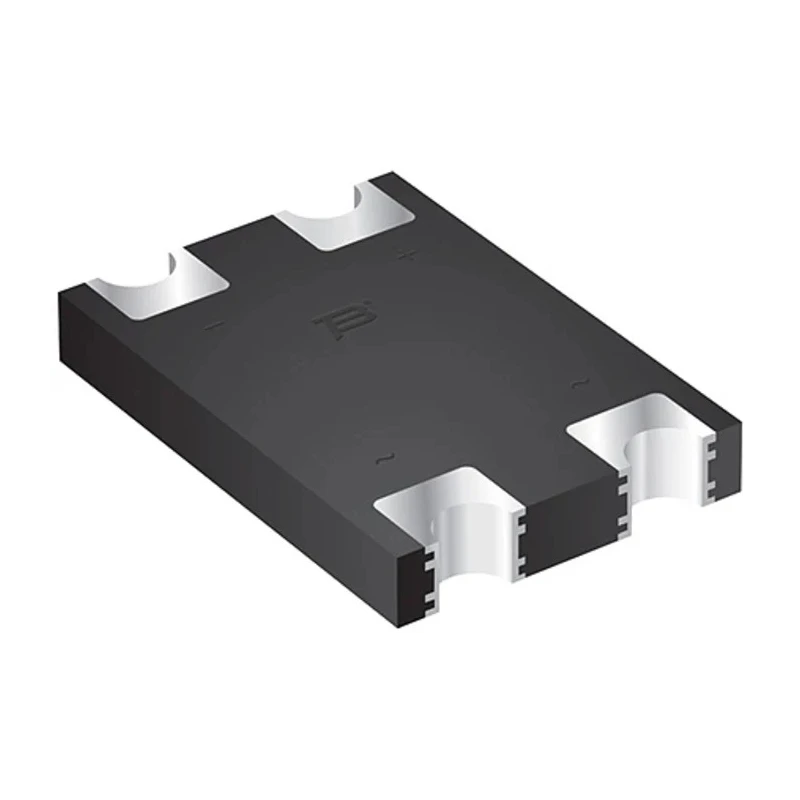

Bourns SMT Schottky Bridge Rectifier 100 V 50 A 4-Pin Single CD-HD201

Free Delivery in India | Lowest Global Shipping Charges

Bourns SMT Schottky Bridge Rectifier 100 V 50 A 4-Pin Single CD-HD201

Name: Bourns SMT Schottky Bridge Rectifier 100 V 50 A 4-Pin Single CD-HD201
Brand: BOURNS
SKU: 143142
Price: 0.56 USD
Availability: InStock



Category Bridge Rectifier Brand BOURNS Condition New

Specifications

Country of Origin	India
Brand	Bourns
Height	1.22mm
Length	6.25mm
Model	CD-HD201
Width	4.85mm
Mount Type	Surface
Series	CD-HD2
Configuration	Single
Maximum Operating Temperature	125°C
Package Type	SMT
Minimum Operating Temperature	-55°C
Number of Phases	1
Pin Count	4
Peak Reverse Repetitive Voltage Vrrm	100V
Peak Reverse Current Ir	200μA
Peak Non-Repetitive Forward Surge Current Ifsm	50A
Forward Current If	2A
Peak Forward Voltage Vf	850mV

Key Features

Utilizes Schottky barrier technology for ultra low forward voltage drop.
Compact SMT package with dimensions 6.25 mm length x 4.85 mm width x 1.22 mm height.
Rated for a forward current of 2 A and maximum operating temperature of 125°C.
Designed for single phase rectification with 4-pin configuration.
Supports wide operating temperature range from -55°C to 125°C.
Peak non-repetitive forward surge current rating of 50 A ensures robustness.
Low peak reverse current of 200 μA for efficient performance.
Suitable for electronic circuit board applications requiring reliable AC to DC conversion.

Product Description

Bourns CD-HD201 SMT Schottky Bridge Rectifier is a high performance semiconductor device designed for converting alternating current (AC) into direct current (DC) using a single-phase bridge configuration. With a peak reverse repetitive voltage (Vrrm) of 100 V and a forward current (If) rating of 2 A, this 4-pin bridge rectifier combines compact surface-mount construction with advanced Schottky barrier technology to deliver ultra low forward voltage drop and high efficiency.

Its surface mount technology (SMT) package type allows for easy and reliable PCB assembly in a range of electronic circuits. The device length is 6.25 mm, width is 4.85 mm, and the height is only 1.22 mm, providing a compact and low-profile solution for space-constrained applications.

The rectifier operates safely within a temperature range from -55°C up to a maximum of 125°C, meeting the demands of industrial and consumer electronics environments. It also features a peak non-repetitive forward surge current (Ifsm) of 50 A, offering durability under transient overload conditions.

The CD-HD201 is ideal for use in power supply circuits, electronic instrumentation, signal processing, and other applications requiring efficient AC to DC conversion with minimal power loss. Its low peak reverse current (Ir) of 200 μA contributes to superior performance by minimizing leakage currents.

Employs Schottky barrier technology for improved energy efficiency. Compact SMT design suits modern PCB layouts. Wide operating temperature range supports diverse environments. High surge current capacity ensures device reliability.

Low reverse leakage current enhances circuit stability. 4-pin single phase configuration for universal bridge rectifier usage. Easy integration into power electronic assemblies.

This product is an essential component for industrial, laboratory, and consumer electronics projects requiring stable and efficient rectification. The compact form factor and reliable electrical ratings make it suitable for use in power conversion, signal conditioning, and other semiconductor roles. Explore the Bourns range of Bridge Rectifiers and semiconductors in the Electronics & Electricals section at EnvMart.
