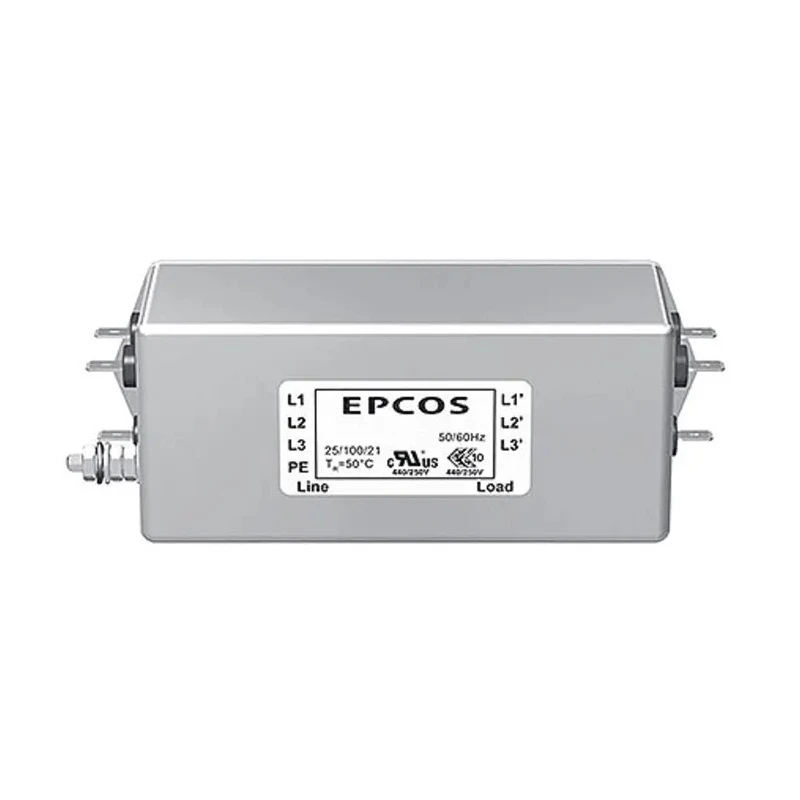

TDK Chassis Mount EMC Filter 10 A 520V AC 50Hz, 60Hz Terminal Block 3 Phase B84143A0010A166

TDK B84143A0010A166 chassis mount EMC filter is engineered for industrial and commercial applications requiring robust electromagnetic interference suppression. This filter supports a maximum current of 10 A and a maximum voltage of 520 V AC, operating efficiently at frequencies of 50 and 60 Hz. Featuring a terminal block termination style and a chassis mount configuration, it provides ease of installation and secure connections in three-phase power systems.

The B84143A0010A166 belongs to the B84143A*166 series, notable for very high insertion loss and low leakage current of just 3.1 mA. This optimizes electrical performance, especially when used with long motor cables under full load, reducing harmful noise emissions and enhancing system reliability.

Its sturdy construction supports operation in harsh environmental conditions with a temperature range from -25°C to 100°C. The compact dimensions (133 mm length, 53 mm height, and 58 mm depth) make it suitable for space-constrained installations.

This EMC filter meets industry standards including UL 1283 and CSA 22.2 No. 8 (1996), assuring compliance and safety in diverse electrical environments.

Widely used in industrial frequency converters for motor drives, it finds applications in elevators, pumps, traction systems, conveyor belts, air conditioning units, and wind-driven power plants, providing critical EMI protection that enhances system longevity and performance.

High insertion loss suppresses electromagnetic interference effectively. Low leakage current reduces energy loss. Chassis mount design with terminal block allows sturdy installation. Wide operating temperature range from -25°C to 100°C.

Compact size fits limited spaces. UL 1283 and CSA 22.2 certifications ensure reliability. Designed for three-phase power systems operating at 50/60 Hz. Protects frequency converters and motor drives in industrial environments.

Enhances performance in HVAC and renewable energy applications.
