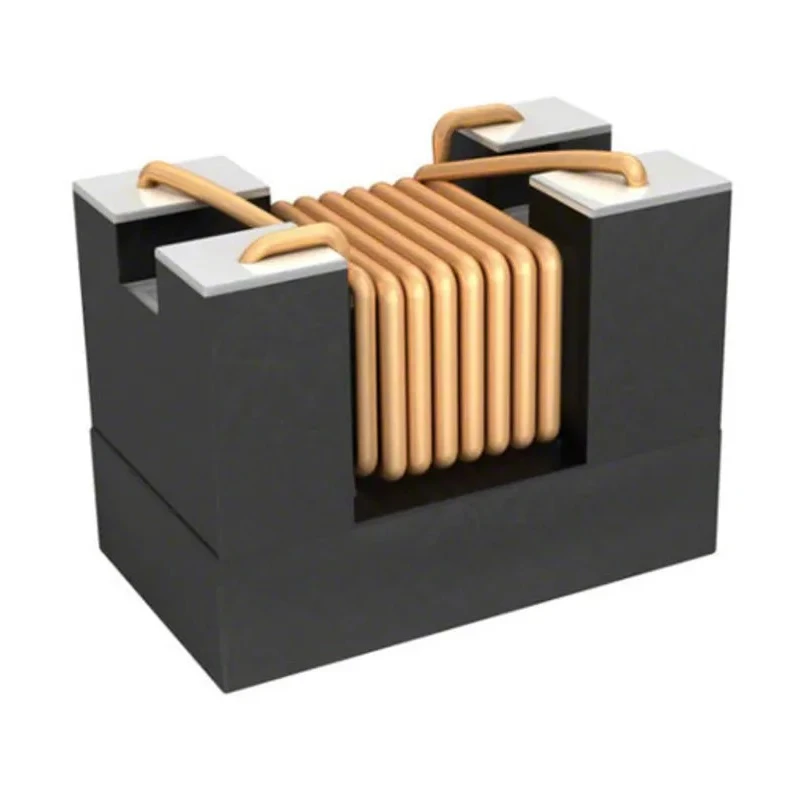

Wurth Elektronik 0805 Unshielded Wirewound Surface Mount Inductor with Ferrite Core 0.13 μH Dual ±25 % 744231091

Wurth Elektronik 744231091 is a precision 0805 unshielded wirewound surface mount inductor featuring a ferrite core and dual winding construction. This component is designed to provide common mode noise suppression in high frequency applications such as USB 2.0, Firewire, LVDS, LAN, and other high-speed data lines. Its compact 2mm x 1.2mm x 1.2mm package and surface mount termination style make it highly suitable for automated PCB assembly and space-constrained designs.

The WE-CNSW SMD series ensures reliable electrical performance with a maximum DC current rating of 370mA and maximum DC resistance of 300mΩ, offering effective filtering and noise reduction. The inductance value of 0.13 μH with ±25% tolerance supports accurate signal conditioning and EMI suppression. Compliant with automotive standard AEC-Q200 and environmental regulations including RoHS and REACH, this component ensures long-term reliability in industrial and automotive environments. It operates over a broad temperature range from -40°C to 125°C, making it adaptable to various harsh conditions.

The moulded ferrite core construction enhances mechanical durability while the tape and reel packaging facilitates smooth integration into manufacturing processes. Wurth Elektronik’s WE-CNSW series is trusted for industrial, automotive, telecommunications, and consumer electronics applications requiring efficient EMI noise suppression.

Rated maximum DC current of 370mA ensuring dependable operation. Compact 0805 package size with 2mm length and 1.2mm height and depth dimensions. Ferrite core construction with dual inductor windings for enhanced noise filtering.

Surface mount termination style suitable for high volume PCB assembly. Inductance tolerance of ±25% meets typical signal filtering requirements. Complies with RoHS, REACH, IEC 61249-2-21, and JEDEC JS709B standards. Automotive standard AEC-Q200 qualified for demanding environments.

Operating temperature range from -40°C to +125°C supports wide industrial applications. Tape and reel packaging enables automated pick-and-place manufacturing. Moulded design enhances mechanical strength and durability.

Suitable for industrial electronics, automotive systems, telecommunications equipment, and any application requiring high frequency EMI suppression, the Wurth Elektronik 744231091 ensures performance and durability in demanding environments. This product is part of the trusted Wurth WE-CNSW SMD series and is an excellent choice for designers seeking reliable Surface Mount Inductors.
