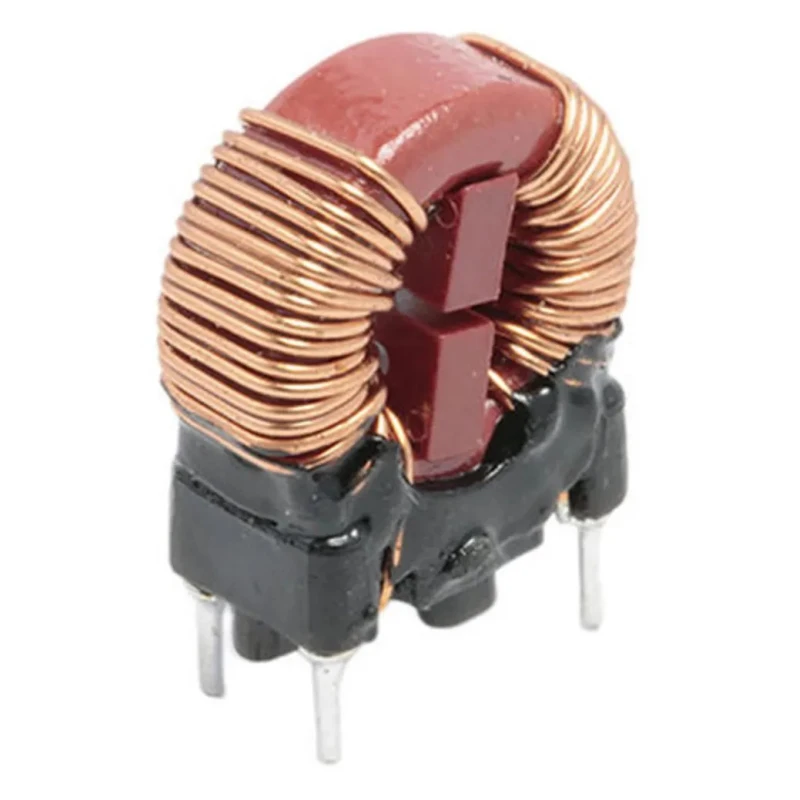

Wurth Elektronik 1 mH Ferrite Common Mode Choke 2 A IDC 45 mΩ RDC 250 V AC VE-CMB 744821201
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 15.5mm |
| Brand | Wurth Elektronik |
| Height | 18mm |
| Length | 15mm |
| Depth | 7.5mm |
| Mount Type | Through Hole |
| Series | WE-CMB |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Test Frequency | 10kHz |
| Core Material | Ferrite |
| Maximum Voltage | 250V ac |
| Inductance | 1mH |
| Standards/Approvals | EN 61760-1:2006 |
| Maximum DC Current | 2A |
| Maximum DC Resistance | 45mΩ |
| Inductance Tolerance | ±30 % |
| Termination Style | Radial Lead |
| Lead Pitch | 4.5mm |
| Lead Diameter | 0.7mm |
| Standards/Approvals EN 61760-1 | 2006 |
| Wurth 1 mH ±30% Leaded Inductor, 2A Idc, 45mΩ Rdc, WE-CMB HCBrand | Wurth Elektronik |
Key Features
- Inductance value of 1 mH for efficient filtering performance.
- Supports maximum DC current of 2 A for high load applications.
- Low DC resistance of 45 mΩ reducing power loss.
- Rated for maximum operating voltage of 250 V AC.
- Constructed with ferrite core material ensuring stable electrical characteristics.
- Through-hole mount type suitable for secure PCB installation.
- Wide operating temperature range from -40°C to +125°C for diverse environments.
- Anti-capacitance coiling technique for broadband interference suppression.
Product Description
Wurth Elektronik 744821201 is a 1 mH Ferrite Common Mode Choke engineered for effective suppression of common mode noise and electromagnetic interference in electrical and electronic systems.
This component features a ferrite core and is designed for through-hole mounting, making it ideal for integration on printed circuit boards in power electronics, motors, and filtering applications where radio interference reduction is critical.
Operating at a maximum DC current of 2 A and rated up to 250 V AC, it offers excellent durability with a maximum operating temperature of 125°C and minimum temperature tolerance of -40°C. The low DC resistance of 45 mΩ enhances efficiency by minimizing power losses.
The WE-CMB series employs an anti-capacitance coiling technique, which contributes to broadband noise suppression and improved performance even in low frequency ranges. This model complies with the EN 61760-1:2006 standard and maintains a UL 49 V-0 flammability classification, ensuring safety and reliability in industrial environments.
This ferrite common mode choke is widely used in industrial, electronic manufacturing, electronics prototyping, and repair contexts. It is suitable for power line input/output filters and devices lacking ground connections, ensuring EMI compliance in a range of electrical devices.
Inductance of 1 mH for noise filtering. 2 A maximum DC current for handling significant load. 45 mΩ maximum DC resistance for low power dissipation. 250 V AC maximum voltage rating for safety compliance. Ferrite core for stable inductive properties.
Through-hole radial lead termination for reliable mounting. Durable temperature rating from -40°C to +125°C. EN 61760-1:2006 standard compliant for quality assurance. Ideal for common mode noise suppression in industrial and electronic applications.
Compact dimensions support design efficiency. Explore more Wurth Elektronik products for high-performance electronic components at EnvMart.
Explore more products in our Common Products category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 1 mH, which is designed for efficient filtering performance.
It supports a maximum DC current of 2 A, making it suitable for high load applications.
The choke is rated for a maximum operating voltage of 250 V AC, ensuring safety in various applications.
This model features a through-hole mount type, which is suitable for secure PCB installation.
The maximum DC resistance is 45 mΩ, which helps to reduce power loss during operation.
It operates within a wide temperature range from -40°C to +125°C, allowing it to function in diverse environments.
The choke is constructed with a ferrite core material, which ensures stable electrical characteristics.
This choke complies with the EN 61760-1:2006 standard, ensuring quality assurance in its application.
The test frequency for this common mode choke is 10 kHz, which is relevant for its performance evaluation.
The lead pitch for this model is 4.5 mm, which is important for compatibility with PCB designs.
It is widely used in power electronics, motors, and filtering applications where radio interference reduction is critical.
The height of this model is 18 mm and the diameter is 15.5 mm, making it compact for various installations.
