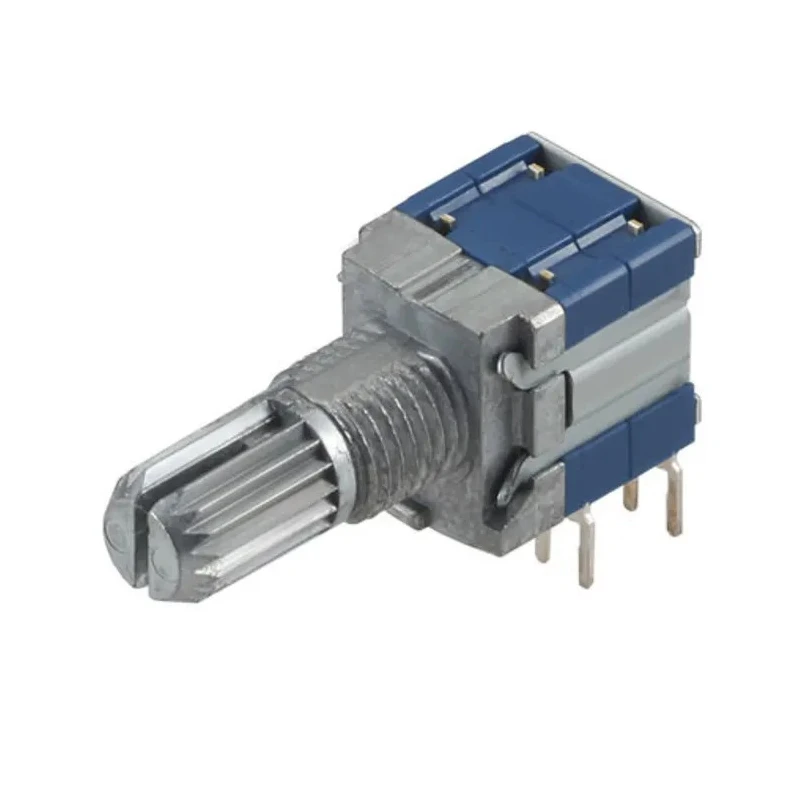

Alps Alpine SRBM Series 6 Position SP6T Rotary Switch 100mA 100V AC 16V DC PCB Mount

Alps Alpine SRBM160700 is a high-quality rotary switch from the SRBM series, designed with a 6-position SP6T contact configuration. It supports a switch contact current of 100mA, rated for a maximum AC voltage of 100V and DC voltage of 16V. The switch is optimized for PCB mount applications and is ideal for electrical, automation, and industrial control systems requiring reliable, precise switching.

This rotary switch features a compact build with dimensions measuring 11mm width, 11mm depth, and 10mm height, making it suitable for use in tight PCB layouts. The actuator is grey-colored and provides a 30° angle of throw, offering clear tactile feedback during operation. It uses a pulse switch configuration and is built to operate reliably between temperatures of -30°C and 85°C, allowing its deployment in diverse environmental conditions.

The mechanical life of the switch is rated at 10,000 cycles, ensuring long-term durability in frequent switching scenarios. It is RoHS compliant, demonstrating adherence to environmental standards and safety. The terminal type is a standard terminal suitable for secure connection on PCB assemblies.

The Alps Alpine SRBM160700 is ideal for use in industrial automation, control panels, electronic equipment, and other applications where compact and reliable Rotary Switching is essential.

The switch operates with 6-Position Horizontal Type configuration ensuring precise switching. The switch features SP6T contact configuration for single-pole six-throw switching. It supports 100mA contact current suitable for low power electrical characteristics.

Designed with robust mechanical life of 10,000 switching cycles. Compatible with maximum AC voltage of 100 volts and maximum DC voltage of 16 volts. Compact dimensions make it suitable for dense PCB layouts. Operating temperature range from -30°C to 85°C supports varied industrial environments.

Pulse switch configuration with 30° angle of throw ensures accurate position control. Explore more products in the Electronics & Electricals category for switches and sockets at EnvMart for your industrial and commercial requirements.
