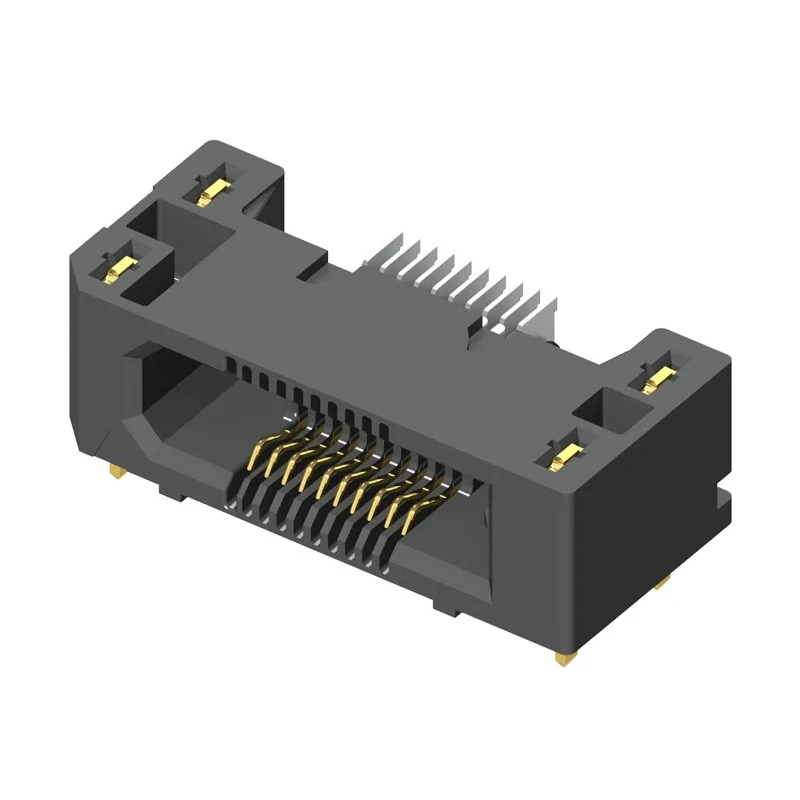

Samtec ERF5 Series Straight Surface PCB Socket 100-Contact 2 Row 0.5 mm Pitch Solder ERF5
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 194V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 1.6A |
| Model | ERF5 |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Beryllium Copper Alloy |
| Series | ERF5 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 0.5mm |
| Contact Plating | Gold |
| Number of Contacts | 100 |
| Connector System | Board-to-Board |
| Stacking Height | 12mm |
Key Features
- Features a 0.5 mm pitch suited for compact PCB designs.
- Comprises 100 contacts in 2 rows for reliable electrical connections.
- Constructed with beryllium copper alloy contacts with gold plating ensuring durability and excellent conductivity.
- Surface mount with liquid crystal polymer housing for high temperature and material stability.
- Rated for 1.6A current and 194V voltage applications.
- Operating temperature range from -55°C to 125°C supports varied industrial environments.
- High stacking height of 12mm ideal for performance in high-density configurations.
- Rugged Edge Rate contacts reduce wear and improve life cycle and signal integrity.
Product Description
Samtec ERF5 Series Straight Surface PCB Socket 100-Contact, 2 Row, 0.5 mm Pitch Solder ERF5 is a high-speed SMT board-to-board socket connector designed for industrial electronics and high-density PCB applications. It delivers reliable and high-performance connections for demanding environments.
Constructed with precision gold-plated beryllium copper alloy contacts, the socket ensures enhanced conductivity and robust durability. The liquid crystal polymer housing provides excellent mechanical and thermal stability, allowing efficient operation between -55°C and 125°C.
This 100-contact socket with 2 rows and 0.5 mm pitch supports current up to 1.6A and voltage up to 194V, making it suitable for numerous electronic assemblies requiring compact footprint and high-speed data transmission.
The ERF5 features ruggedized Edge Rate contacts that minimize contact wear through a smooth milled surface design, lowering insertion and withdrawal forces which facilitates ease of mating and unmating. This contact design also enhances signal integrity by reducing crosstalk and broadside coupling, ideal for applications reaching data rates of 28 Gbit/s.
The socket is compatible with the ERM5 series high-speed SMT headers, allowing configurable mating heights ranging from 7 mm to 12 mm. 0.5 mm pitch ensures compatibility with compact PCB layouts. 100 high-quality gold-plated contacts arranged in 2 rows.
Liquid crystal polymer housing for thermal resilience. Supports up to 1.6A current and 194V voltage. Wide operating temperature range suits diverse environments. Edge Rate contact design increases durability and performance.
Compatible with ERM5 series headers for mating flexibility.
This PCB socket is ideal for industrial, electronic manufacturing, telecommunications, and high-speed computing applications. It provides a reliable interface for board-to-board connections with excellent electrical performance and mechanical stability.
Explore more premium PCB Sockets and electronic connectors in the Electronics Components category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this PCB socket is 0.5 mm, making it suitable for compact PCB designs.
This model features 100 contacts arranged in 2 rows for reliable electrical connections.
The maximum voltage rating for the Samtec ERF5 Series socket is 194V.
It is rated for a maximum current of 1.6A.
The contacts are made from beryllium copper alloy with gold plating, while the housing is constructed from liquid crystal polymer.
The operating temperature range is from -55°C to 125°C, suitable for varied industrial environments.
The stacking height of this socket is 12 mm, which is ideal for high-density configurations.
Yes, it is compatible with the ERM5 series high-speed SMT headers, allowing for configurable mating heights.
This model uses solder termination for secure connections.
The orientation of this socket is straight, designed for surface mount applications.
It is suitable for industrial, electronic manufacturing, telecommunications, and high-speed computing applications.
The socket features rugged Edge Rate contacts that reduce wear and improve life cycle and signal integrity.
