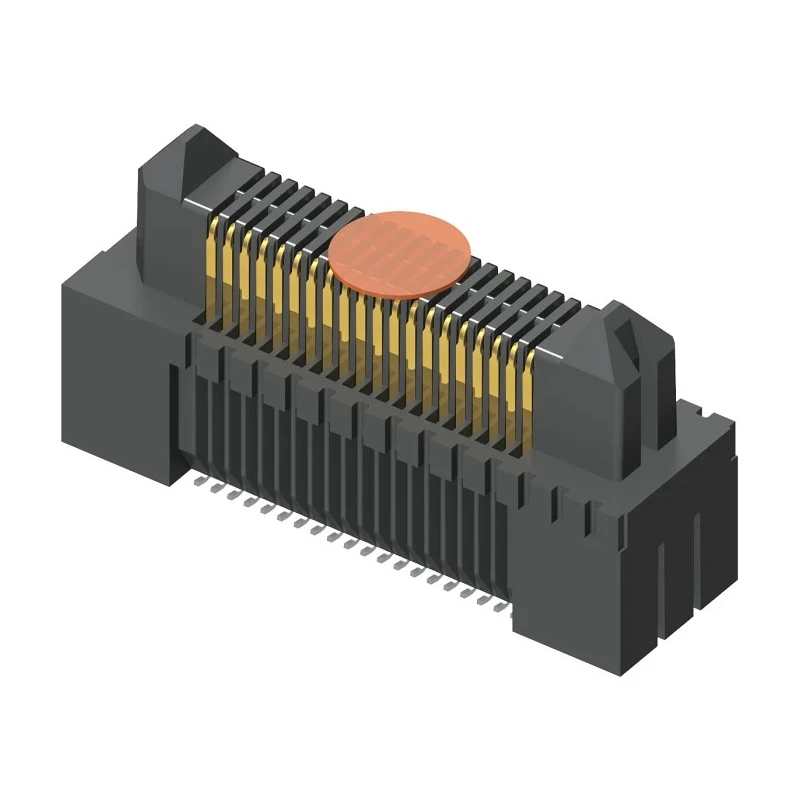

Samtec ERM5 Series Straight Surface PCB Header 60 Contacts 0.5 mm Pitch 2 Row Shrouded ERM5
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 194V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 1.5A |
| Model | ERM5 |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | ERM5 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 0.5mm |
| Contact Plating | Gold |
| Number of Contacts | 60 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board |
Key Features
- Features a pitch of 0.5 mm, suitable for compact PCB designs.
- Consists of 60 gold-plated phosphor bronze contacts for reliable connectivity.
- Housing constructed from durable Liquid Crystal Polymer material for robust performance.
- Supports a current rating of 1.5 A with a voltage rating up to 194 V.
- Designed with Edge Rate contacts for high signal integrity and reduced crosstalk.
- Operating temperature range from -55°C to 125°C ensures adaptability in various environments.
- Mount type is surface mount with solder termination for secure attachment.
- Shrouded, straight orientation with 2 rows, offering effective pin protection and alignment.
Product Description
Samtec ERM5 Series Straight Surface PCB Header model ERM5 is a high-speed SMT connector with a 0.5 mm pitch, designed for robust board-to-board connections. It has 60 male contacts arranged in 2 rows with shrouded housing made of Liquid Crystal Polymer, ensuring durability and protection.
This PCB header supports currents up to 1.5 A and voltage ratings up to 194 V, making it suitable for various electronic applications requiring reliable electrical performance. The Edge Rate contacts feature a smooth milled surface that reduces wear and insertion forces, enhancing connector lifespan and ease of mating and unmating.
The header operates reliably within temperatures ranging from -55°C to 125°C, facilitating its use in demanding industrial, laboratory, manufacturing, and commercial electronics environments. It is surface mount soldered and designed in a straight orientation to fit compact PCB layouts.
The two-row, 60-contact header is compatible with ERF5 series SMT sockets, allowing flexible mating heights between 7 mm and 12 mm, ideal for compact high-speed interconnect systems.
Features a compact 0.5 mm pitch for space-saving PCB design. Durable Liquid Crystal Polymer housing for long-lasting use. High signal integrity with gold-plated phosphor bronze Edge Rate contacts. Wide operating temperature range from -55°C to 125°C.
Shrouded design protects contacts and ensures proper alignment. Supports 1.5 A current and 194 V voltage rating. Surface mount solder termination for stable connection. Compatible with ERF5 sockets for adjustable mating height.
Ideal for electronics manufacturing, industrial, and commercial applications. Explore more connectors and PCB Headers from Samtec in our comprehensive catalog to find ideal components for your high-speed electronic assembly needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of the ERM5 series PCB header is 0.5 mm, making it suitable for compact PCB designs.
This model features 60 gold-plated contacts arranged in 2 rows.
It supports a current rating of 1.5 A and a voltage rating of up to 194 V.
The housing is constructed from Liquid Crystal Polymer, which provides robust performance.
This unit utilizes solder termination for secure attachment to the PCB.
The operating temperature range is from -55°C to 125°C, allowing for adaptability in various environments.
It supports a board-to-board connector system, facilitating reliable high-speed connections.
Yes, it is compatible with ERF5 series SMT sockets, allowing for flexible mating heights between 7 mm and 12 mm.
It uses gold-plated phosphor bronze contacts designed with Edge Rate technology for high signal integrity and reduced crosstalk.
The orientation of this PCB header is straight, designed for effective pin protection and alignment.
Specific dimensions are not provided, but it features a compact design suitable for space-saving PCB layouts.
It is suitable for various electronic applications, particularly in electronics manufacturing, industrial, and commercial environments.
