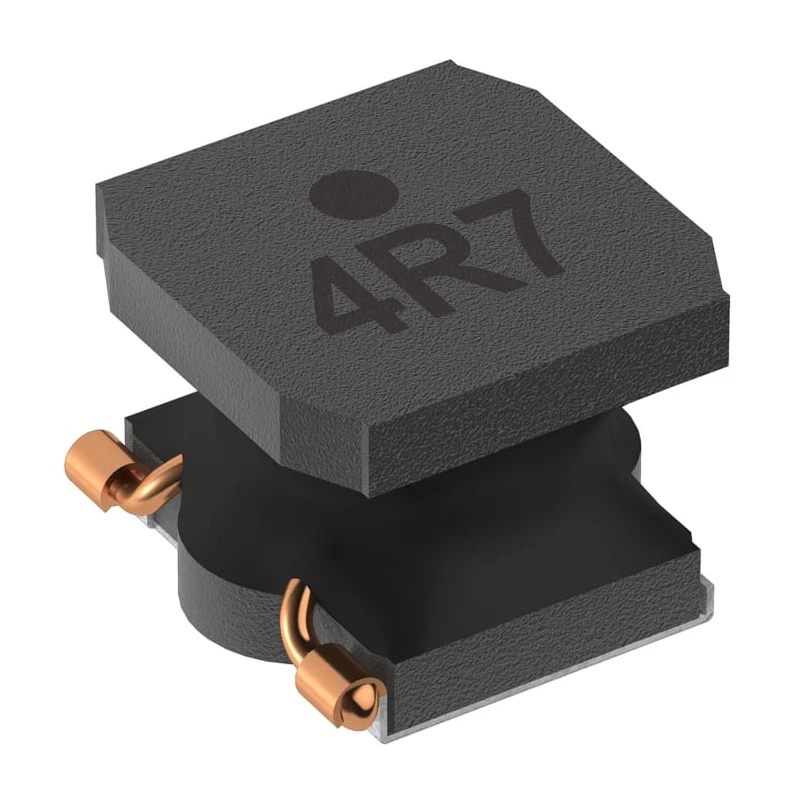

TDK VLS6045EX-4R7M Shielded Wirewound Surface Mount Inductor 6045 Package 4.7 μH ±20/±30% 4.2 A IDC Korea
Specifications
| Country of Origin | Korea |
|---|---|
| Brand | TDK |
| Height | 4.5mm |
| Length | 6mm |
| Model | VLS6045EX-4R7M |
| Depth | 6mm |
| Packaging | Reel |
| Series | VLS-EX |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 4.7μH |
| Standards/Approvals | RoHS |
| Package/Case | 6045 |
| Maximum DC Current | 4.2A |
| Maximum DC Resistance | 27mΩ |
| Inductance Tolerance | ±20/±30 % |
| Termination Style | Surface Mount |
| Inductor Construction | Wirewound |
Key Features
- Magnetically shielded wirewound inductor ideal for power circuitry.
- Ferrite core enhances magnetic shielding and performance.
- Compact 6045 package suitable for high-density PCB mounting.
- Operating temperature range from -40°C to 105°C for robust applications.
- Maximum DC resistance of 27 mΩ reduces power loss.
- Inductance tolerance available as ±20% or ±30% for design flexibility.
- RoHS compliant ensuring environmental safety.
- Moulded construction enhances durability and mechanical stability.
Product Description
TDK VLS6045EX-4R7M is a magnetically shielded wirewound surface mount inductor built with a ferrite core designed for power circuit applications requiring compact size and high performance. Its shielded design minimizes electromagnetic interference making it suitable for densely packed electronic devices.
This inductor is constructed with a high-quality ferrite magnetic material that optimizes current handling and reduces DC resistance. The 6045 package format with dimensions of 6 mm length, 4.5 mm height, and 6 mm depth is well suited for surface mount technology in printed circuit boards.
The device is rated for a maximum DC current of 4.2 A IDC and offers inductance of 4.7 μH with tolerance options of ±20% or ±30%, accommodating various precision levels in circuit design. It operates reliably within temperature ranges from -40°C to 105°C, suitable for industrial, automotive, audiovisual, game device, and set-top box applications.
The low maximum DC resistance of 27 mΩ ensures minimal power loss and efficient operation within electronic systems. The moulded wirewound construction adds mechanical strength and durability to withstand vibration and thermal cycling common in demanding environments.
As a RoHS compliant component originating from Korea, Republic Of, it meets environmental regulations for hazardous substances. The TDK VLS6045EX series is ideal for engineers requiring reliable, shielded inductors for power management in compact electronic assemblies.
Magnetically shielded wirewound construction reduces EMI. Ferrite core material for enhanced magnetic properties. Compatible with high-density PCB mounting. Operating temperature from -40°C to 105°C. Low DC resistance of 27 mΩ minimizes power loss.
Inductance tolerance of ±20% or ±30% for design flexibility. Maximum DC current rating of 4.2 A IDC. Moulded for improved durability. RoHS compliant, environmentally safe. Explore the Electronics Components category at EnvMart for this and other Surface Mount Inductors by TDK and other leading manufacturers.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 4.7 μH.
It has a maximum DC current rating of 4.2 A IDC.
The dimensions of the 6045 package are 6 mm in length, 4.5 mm in height, and 6 mm in depth.
The maximum DC resistance is 27 mΩ, which helps to minimize power loss.
It operates reliably within a temperature range of -40°C to 105°C.
This inductor features a wirewound construction, which enhances its performance.
Yes, it is RoHS compliant, ensuring it meets environmental regulations for hazardous substances.
The inductance tolerance is available as ±20% or ±30%, providing design flexibility.
It is suitable for applications in industrial, automotive, audiovisual, game devices, and set-top boxes.
The core material used is ferrite, which enhances its magnetic properties.
The termination style is surface mount, making it compatible with high-density PCB mounting.
It is packaged in a reel format, suitable for automated assembly processes.
