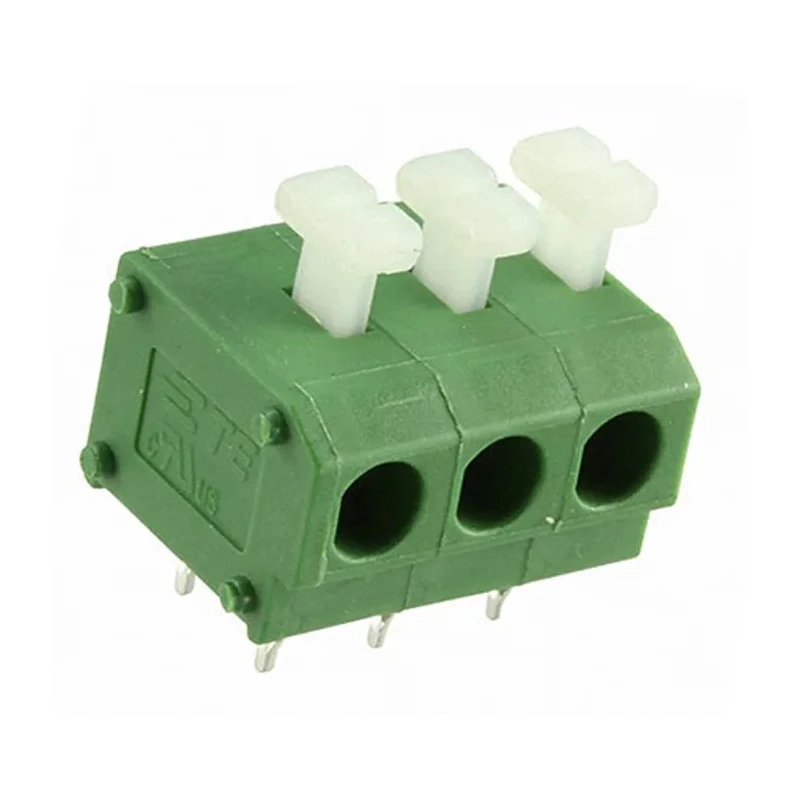

TE Connectivity PCB Terminal Block, 3-Contact, 5 mm Pitch, Through Hole, 1 Row 1-2834018-3
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V ac |
| Brand | TE Connectivity |
| Colour | Green |
| Orientation | Vertical |
| Current | 10A |
| Length | 15.9mm |
| Depth | 9.2mm |
| Width | 12.6mm |
| Mount Type | Through Hole |
| Housing Material | Polyamide 66 |
| Number of Rows | 1 |
| Pitch | 5mm |
| Number of Contacts | 3 |
| Minimum Wire Size AWG | 20AWG |
| Maximum Wire Size AWG | 14AWG |
Key Features
- Constructed with polyamide 66 housing for durability and electrical insulation.
- Supports a maximum current of 10A and voltage rating of 300V AC.
- Designed with vertical orientation and green color coded housings for easy identification.
- Accommodates wire sizes from 14 AWG to 20 AWG ensuring versatility.
- Screwless terminals enable quick assembly without special tools.
- Ideal for use in LED drivers, lighting systems, power supplies, and security applications.
Product Description
TE Connectivity 1-2834018-3 PCB Terminal Block is a high-density modular screwless terminal block designed with a 5.0 mm pitch, featuring 3 contacts in a single row for through hole PCB mounting. It incorporates a polyamide 66 housing that provides robust electrical insulation and mechanical strength, with a green color coded design to aid quick visual identification during assembly.
This PCB terminal block supports up to 10A current and is rated for 300V AC voltage, making it suitable for a wide range of electronic and electrical applications including LED drivers, lighting systems, power supply units, and security systems. The vertical orientation maximizes space efficiency and the compact dimensions (15.9 mm length, 12.6 mm width, 9.2 mm depth) promote high-density PCB layouts.
The screwless terminal design allows quick wire connection without requiring special tooling, facilitating faster assembly and maintenance. It supports wire gauge sizes from 14 AWG up to 20 AWG, providing flexibility for different wiring requirements.
This product is compliant with TE Connectivity's quality standards though it does not list formal certifications. Its compact and color-coded design ensures ease of use in industrial, laboratory, manufacturing, and commercial electronic equipment assembly and repair operations.
Constructed with polyamide 66 for enhanced durability and electrical isolation. Screwless terminals guarantee convenient and tool-free wire connections. Green housings assist easy identification and organized wiring. Compact footprint supports high-density PCB assembly.
Supports 14 AWG to 20 AWG wire sizes for versatile use. Rated for 10A current and 300V AC voltage for reliable performance. Ideal for electronic manufacturing, power supply, and security device applications.
For additional support, design resources such as 3D models and technical documents are available to optimize your PCB design and implementation. Explore other PCB Terminal Blocks by TE Connectivity within EnvMart for comprehensive sourcing and technical assistance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal block supports a maximum current of 10A.
It is rated for a voltage of 300V AC.
This unit accommodates wire sizes from 14 AWG to 20 AWG.
The pitch of this terminal block is 5 mm.
The dimensions are 15.9 mm in length, 12.6 mm in width, and 9.2 mm in depth.
It is designed for through hole mounting on PCBs.
The housing is constructed from polyamide 66, providing electrical insulation and mechanical strength.
It is designed with a vertical orientation.
Yes, it features screwless terminals for quick and tool-free wire connections.
The housing is green, which aids in easy visual identification.
It is ideal for use in LED drivers, lighting systems, power supplies, and security applications.
The country of origin for this terminal block is India.
