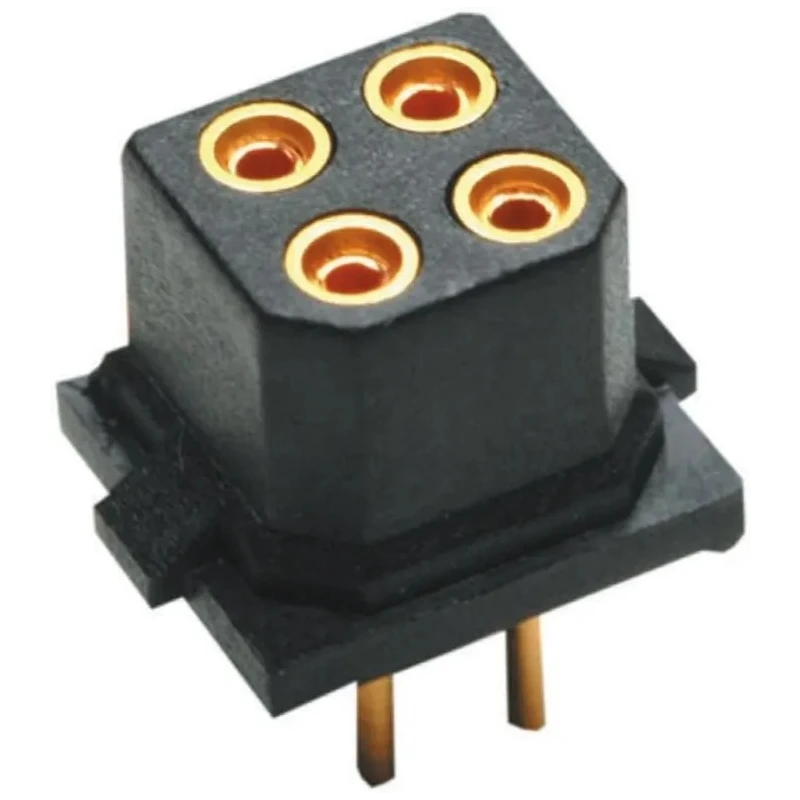

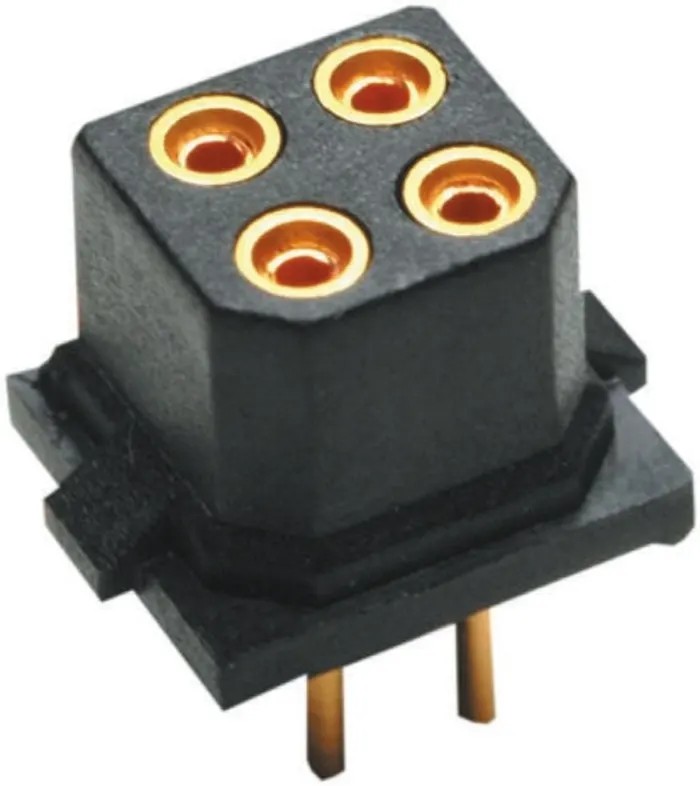

HARWIN M80 Series Straight Through Hole PCB Socket 12-Contact 2 Row 2 mm Pitch Solder M80-8501245

HARWIN M80-8501245 Series Straight Through Hole PCB Socket is a high-reliability connector designed to provide secure and durable board-to-board connections. This component features 12 female contacts arranged in 2 rows with a pitch of 2 mm, suitable for electronic assemblies requiring robust performance.

The socket's nylon housing ensures electrical insulation and resistance to mechanical stress, while the gold-plated beryllium copper alloy contacts provide excellent conductivity and corrosion resistance. Designed to withstand operating temperatures from -55°C to 125°C, it suits a wide range of industrial, automotive, and aerospace applications.

Operating at 12A current and 120V voltage rating, the M80-8501245 device is ideal for environments subjected to vibration, shock, and acceleration, maintaining reliable connectivity through its four finger contact design. Its through hole mount type facilitates strong PCB attachment and mechanical stability.

The product complies with stringent standards like BS9525-F0033, MIL C 55302, and CEC 75101-008, ensuring industry-grade quality. Originating from the United Kingdom, it upholds high manufacturing specifications.

The socket features a nylon housing for durability and insulation. Supports board-to-board connector system for reliable PCB connections. Rated for 12A current and 120V voltage, suitable for various electronic applications.

Operates reliably between -55°C and 125°C, suitable for harsh environments. Contacts are female, made from beryllium copper alloy and brass, plated with gold for enhanced conductivity and corrosion resistance. Mount type is through hole, ensuring secure mechanical and electrical connection to PCB.

Polarised moulding and high reliability four finger contacts ensure connection integrity under vibration and shock. Complies with industry standards including BS9525-F0033, MIL C 55302, and CEC 75101-008. Manufactured in the United Kingdom ensuring quality and reliability.

This HARWIN M80 Series PCB socket is essential for industrial, laboratory, electronics manufacturing, and aerospace sectors, providing secure and reliable electrical connections in demanding applications. Environmentally robust design ensures performance longevity even under severe mechanical and thermal stress.
